Features and Controls

Audio input
Micro SD card
slot cover
The audio input circuitry is the essentially the same as on Lectrosonics SM
and L Series transmitters. Any microphone wired as Lectrosonics "compatible"
or "servo bias" will work with the PDR. (See manual for details.)
If the unit is booted with an unformatted SD card, the prompt to format the
card will be the first window to appear after the boot sequence completes. Fol-
low the screen instructions to format the card. If the card has an interrupted
recording on it, the Recovery screen will be the first screen to appear.
If there is no card or the card has good formatting, the first display that ap-
pears on the LCD after the recorder is turned on is the Main Window. Settings
are accessed by pressing MENU/SEL on the keypad, and then using the UP
and DOWN arrow buttons, and BACK button to navigate the menu items and
select functions. The buttons also provide alternate functions as labeled by
the icons on the LCD.
00 : 01 : 33
T
C
i
Icons in each corner of the LCD define the alternate functions of the adja-
cent buttons on the keypad. For example, in the Main Window shown above,
recording is started by pressing the UP arrow button on the keypad, in which
case, the display switches to the Recording Window.
2

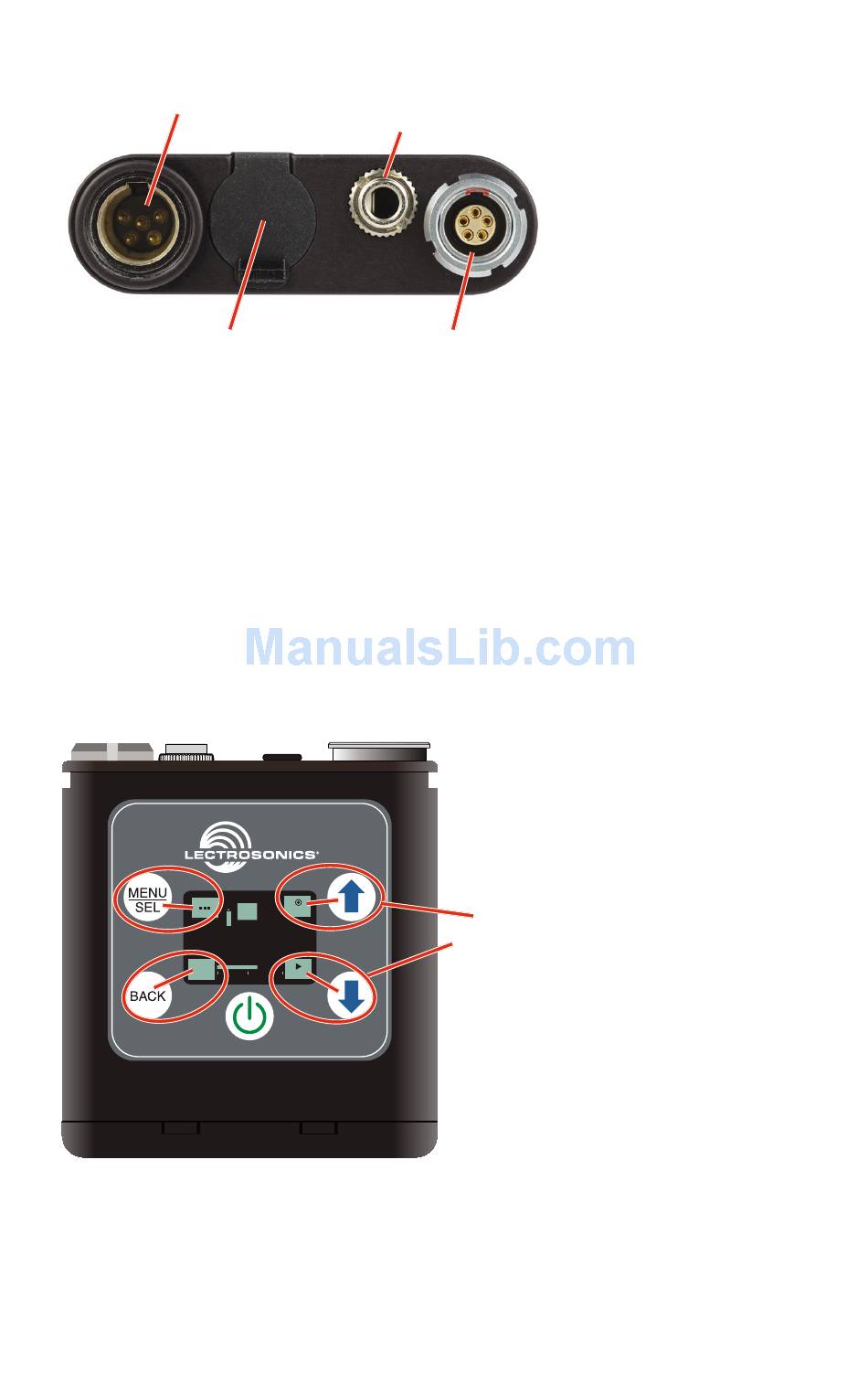

Headphone/
Line output
REC
LAST
-40 -20 +0
Time code
sync port
Functions
indicated by the
icons on the LCD
are activated
by pressing the
adjacent buttons
on the keypad
LECTROSONICS, INC.
