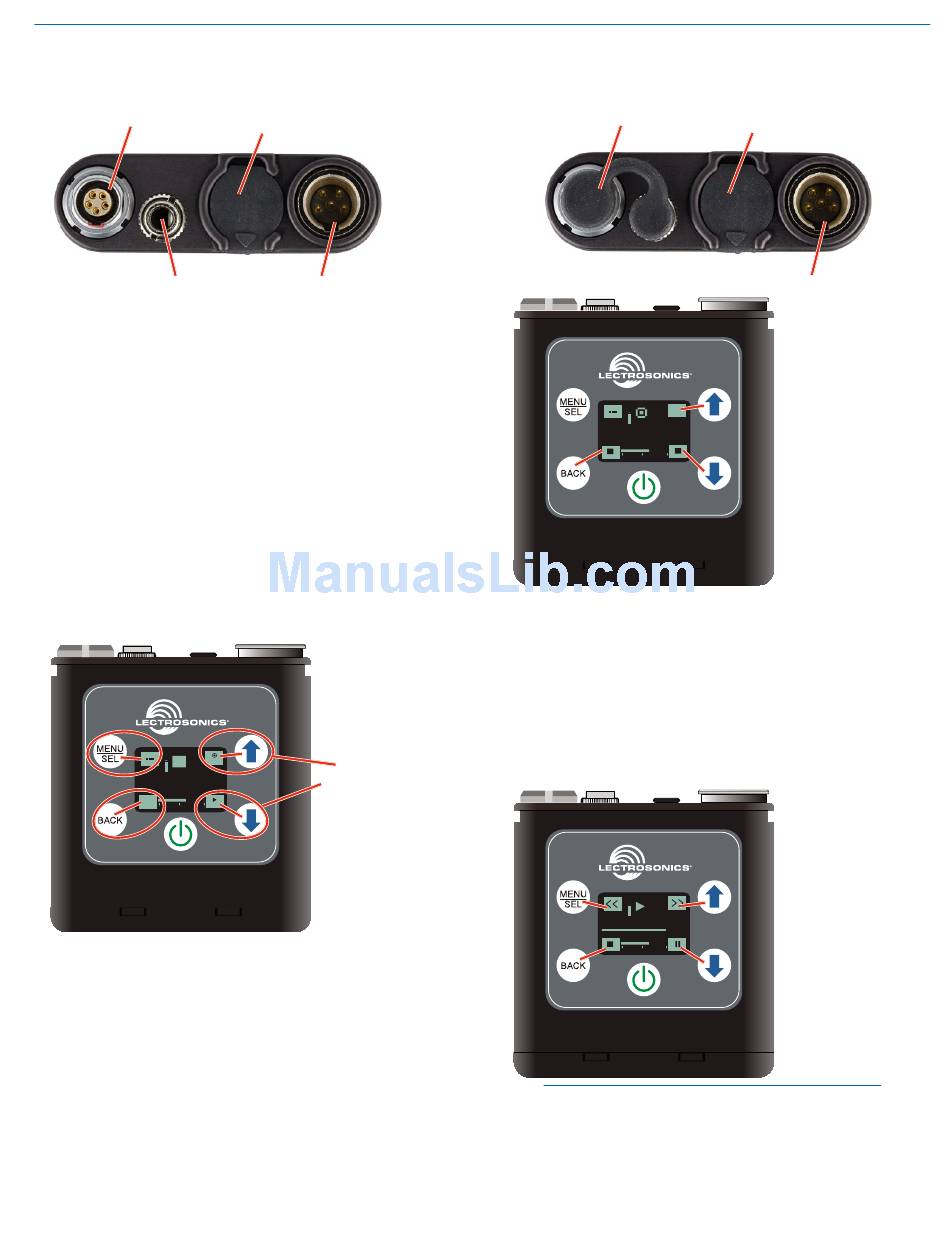

Features and Controls

Timecode
sync port
Headphone/
Line output
The audio input circuitry is the essentially the same as
on Lectrosonics SM and L Series transmitters. Any mi-
crophone wired as Lectrosonics "compatible" or "servo
bias" will work with the PDR. See page 10 for details.
If the unit is powered on with a card which hasn't been
formatted for the PDR, a prompt to format the card will
appear. Follow the on-screen instructions to format the
card. If the card has an interrupted recording on it, the
Recovery screen will appear. (See page 8).
If there is no card in the PDR or the card is not prop-
erly formatted, the Main Window appears. Settings are
accessed by pressing MENU/SEL on the keypad, and
then using the UP and DOWN arrow buttons and BACK
button to navigate the menu items and select functions.
The buttons also provide alternate functions as labeled
by the icons on the LCD.
REC
00 : 01 : 33
T
C
i
LAST
-40 -20 +0
Icons in each corner of the LCD define the alternate
functions of the adjacent buttons on the keypad. For ex-
ample, in the Main Window shown above, recording is
started by pressing the UP arrow button on the keypad,
in which case, the display switches to the Recording
Window.
In the Recording Window, the functions of three keypad
buttons change to provide the needed operations during
recording.
Rio Rancho, NM
MicroSDHC
memory card
slot cover
Audio input
Functions
indicated by the
icons on the LCD
are activated
by pressing the
adjacent buttons
on the keypad
Moisture/Dust
Cover
i
REC
00 : 01 : 33
T
C
-40 -20 +0
HOLD
HOLD
In the Playback Windows, the icons on the LCD change
to provide the functions needed during playback. There
are three variants of the playback window:
• active playback
• paused playback in the middle of the recording
• paused playback at the end of the recording
The icons in the corners of the LCD will change
depending on the status of the playback.
00 : 01 : 33
T
C
-40 -20 +0
NOTE: Refer to the Operating Instructions section
for details on the specific button functions and
operations in the Main, Recording and Playback
Windows.
Portable Digital Recorder
MicroSDHC
memory card
slot cover
Audio input
5
