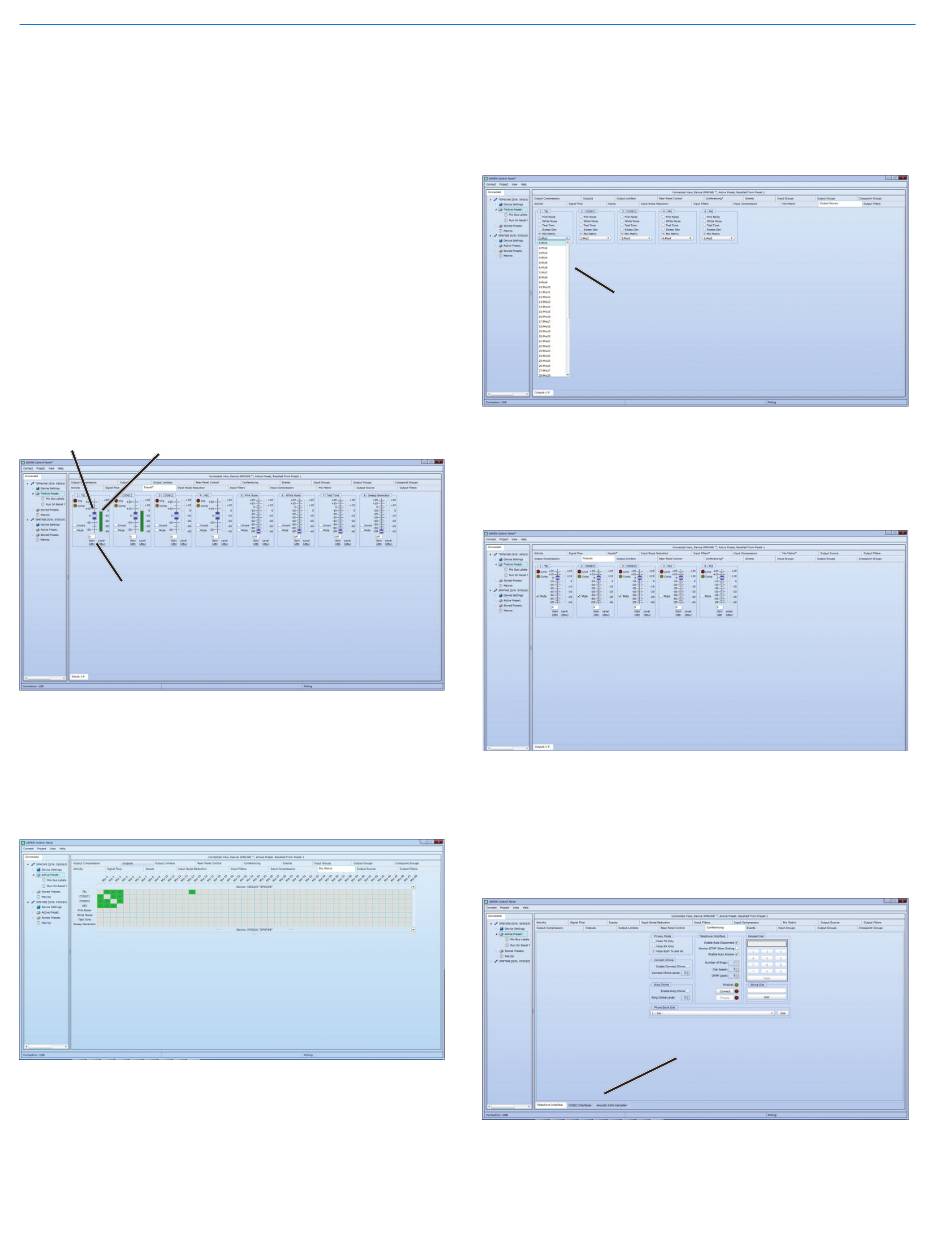

Minimum Setup

A required minimum setup is needed to allow the
processor to pass signals and provide acoustic echo
cancellation:
• Define the Inputs and adjust gain
• Define the Crosspoints
• Define the mixes to be used as signal sources for
the outputs
• Define the Outputs and adjust levels
• Configure the Conferencing Connections
Inputs
Click on the Inputs tab. The setup screen provides con-
trols for gain, signal polarity (phase) and muting, with
level indicators. Connect signal sources and adjust the
gain as needed.
Input gain slider Input signal level
Input gain value
Inputs screen
Crosspoints
Click on the Mix Matrix tab. Crosspoints must be as-
signed to the mixes that are used as the signal sources
for the outputs.
Mix Matrix screen
16
Output Sources
Click on the Output Source tab. These assignments
pass the matrix mixes to the outputs.
Pull down menu for
mix assignment
Output Source screen
Outputs
Click on the Outputs tab. This allows adjustment of the
gain and muting of each output with level metering.
Outputs screen
Conference Connections
Click on the Conferencing tab. Conferencing settings
define the behavior of the Codec and Telephone inter-
faces.
Conferencing screen (Telephone Interface setup selected)
Tabs select Telephone, CODEC
and AEC setup screens
