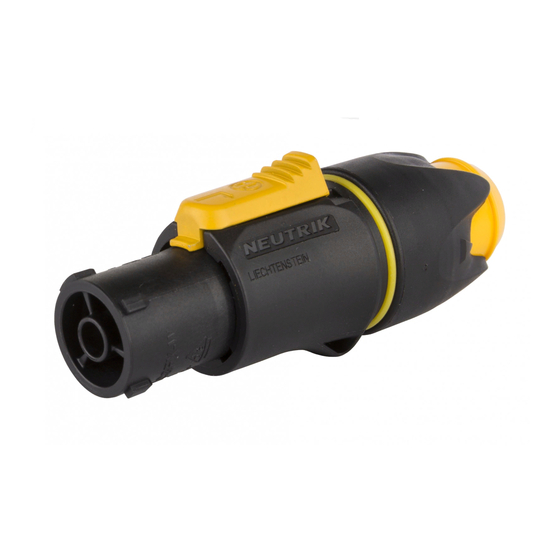

NEUTRIK NAC3FX Operating & Assembly Instruction

R
OPERATING & ASSEMBLY INSTRUCTION
NAC3FX
OPERATING INSTRUCTION
Application:
The powerCON TRUE1 system is certified as connector with breaking capacity according IEC 60320,
VDE 0625. It is intended for use as appliance couplers and interconnection couplers. It serves to supply
power to an appliance and from an appliance to another equipment. To be installed by qualified person only.
Connector Assignment:
APPLIANCE INLET
NAC3MPX
Power IN
NAC3FX
(Connector)
ASSEMBLY INSTRUCTION
Approval based:
Rating:
Cable Type:
Strain Relief:
Cable O.D.:
A Place bushing and
chuck over the cable.
B Prepare cable as
shown.
|
powerCON TRUE1
APPLIANCE OUTLET
Power OUT
NAC3MX
(Plug connector)
VDE
EN 60320-1/EN60320-2-2
250 V ac / 16 A
2
H05VV-F3G 1.0 mm , Length max. 2 m
H05VV-F3G 1 .5 - 2.5 mm
White chuck
6.3 - 11.4 mm
1.
20 mm
PE 23 mm
Page 1
NAC3FPX
NAC3FX
(Connector)
UL
UL 498 / CSA C22.2 No. 182.3
250 V ac / 20 A
SJT 3 x 12 AWG
2
Black chuck
9.5 - 12.0 mm
2.
[0.787"]
8 mm
[0.32"]
[0.9"]
APPLIANCE
INLET OUTLET
COMBINATION
NAC3PX
Power IN
Power OUT
NAC3MX
(Plug connector)
2.
1.
20 mm
[0.787"]
PE 23 mm
[0.9"]
8 mm
[0.32"]
