Application Examples
7.1.1 Example of PLC Programming

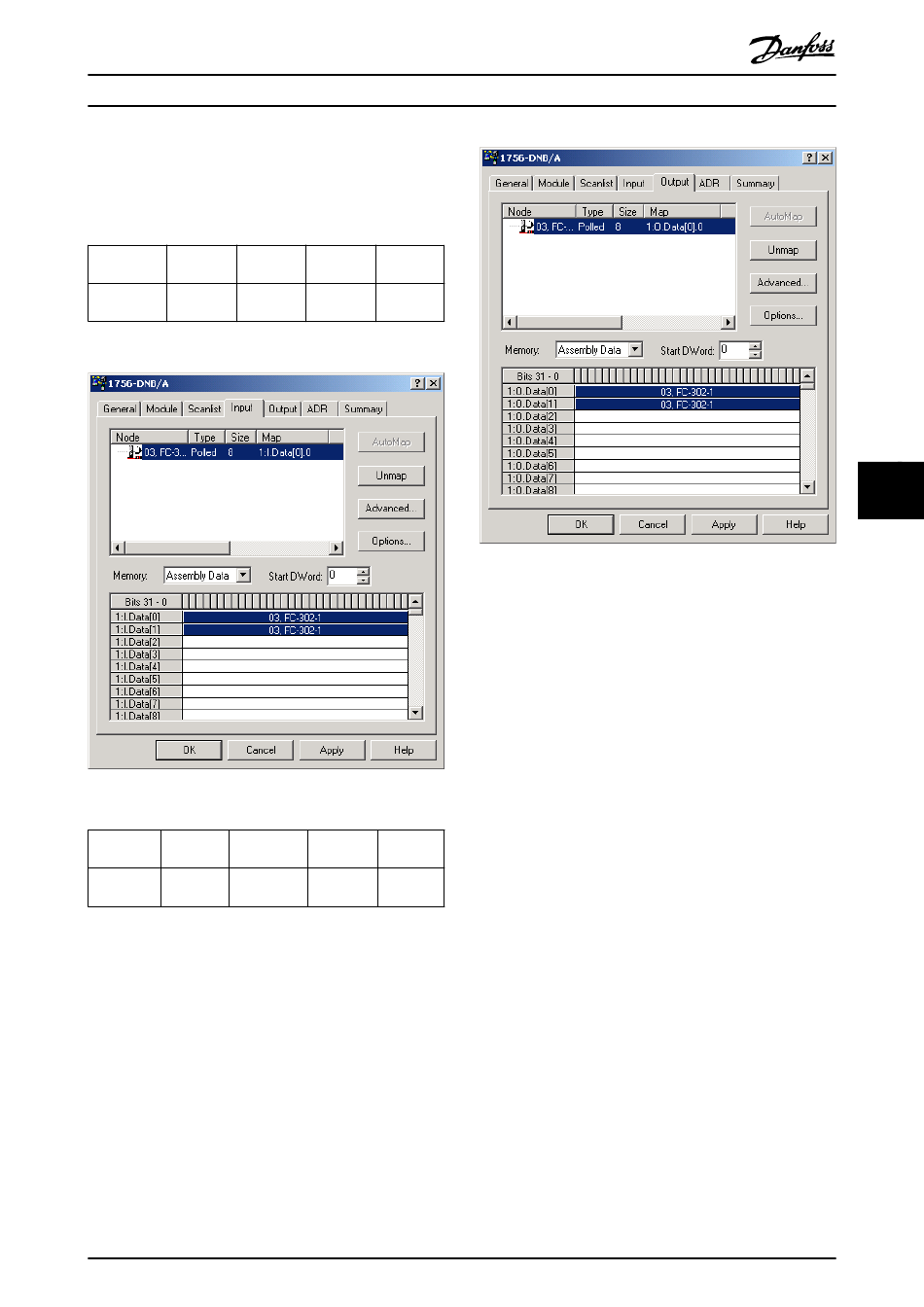

In this example, instance 101/151 is placed in the following
input/output address, see Table 7.2 and Table 7.3.
Input 0.0–0.15 0.16–0.31
address
Set-up Status MAV
word
Table 7.2 Input Address
Illustration 7.2 Input
Output 0.0–0.15 0.16–0.31
address
Set-up Control Reference
word
Table 7.3 Output Address
MG92F102
Programming Guide
1.0–1.15 1.16–1.31
Motor Digital
torque input
1.0–1.15 1.16–1.31
Not used Not used
