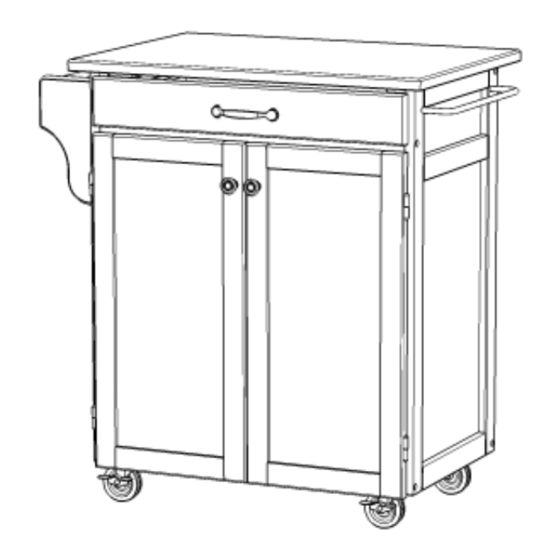

Cuisine Cart
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damage occurring to the parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.
A.
B.
Side Panel
Side Panel
1 Pc.
1 Pc.
H.
Side Rack
1 Pc.
Side Rack
1 Pc.
Caster
two lock
two non-lock
4 Pcs.
Tools required for assembly : Phillips screwdriver
C.
Base
1 Pc.
J.
Brush Chrome Pipes
3 Pcs.
K.
Base Rack
1 Pc.
I.
L.
Side Tower Bar
1 Pc.
Head Cap Bolt(Middle)
for Top
Hex Wrench
4 Pcs. (+1 extra)
1 Pc.
Head Cap Bolt(long)
Small Hex Wrench
12 Pcs. (+1 extra)
1 Pc.
Home Styles Consumer Assistance: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319
D.
E.
Back Upright
Back Panel
2 Pcs.
1 Pc.
N.
Door
1 Pc.
Head Cap Bolt
for Side Tower Bar
2 Pcs. (+1 extra)
Machine Screw
for Knob
2 Pcs.
F.
Back Stretcher
1 Pc.
G.
Front Rail
1 Pc.
M.
Shelf
1 Pc.
P.
Drawer
1 Pc.
O.
Door
(Please refer to the last page of these
instruction for drawer assembly steps)
1 Pc.
Wood Screw
for Caster
16 Pcs. (+1 extra)
Adjustable Pin
4 Pcs. (+1 extra)
Knob
2 Pcs.
Wood Plug
8 Pcs. (+1 extra)
