88 9100 001CN

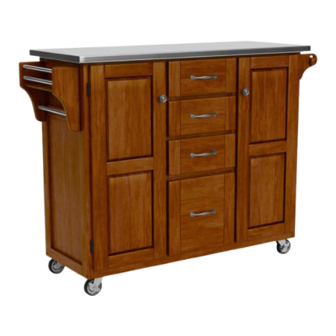

Kitchen Cart
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damages occurring to the wood parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.

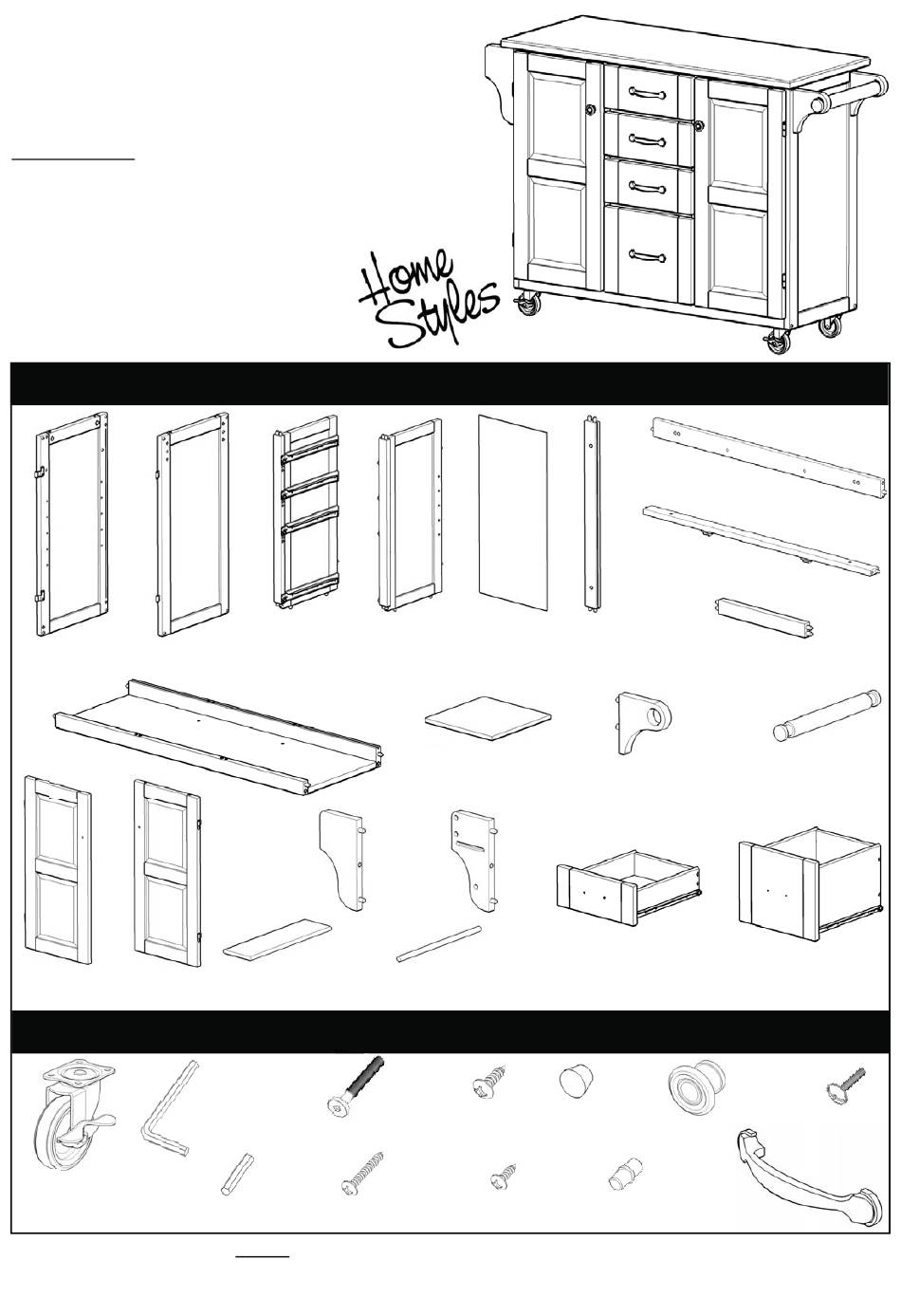

A.
.
B.
.
Side Panel
Side Panel
1 pc.
1 pc.
J.
Base
ase
1 pc.
pc.
N.
O.
Door
Door
1 pc.
1 pc.
Hardware List
Caster
t
Small
Two with lock and
Hex Wrench
Two non-locking
1 pc.
4 pcs.
Tools required for assembly : Phillips screwdriver
C.
Middle Panel
1 pc.
P.
Side Rack
1 pc.
R
R.
Base Rack
1 pc.
M6x35
He
Hex Wrench
Head Cap Bolt (long)
1 pc.
1 p
14 pcs. (+1 extra)
M3.5x25
Wood Screw (long)
32 pcs. (+1 extra)
Home Styles Consumer Assistance: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319
E.
.
D.
.
Back Panel
Middle Panel
3 pcs.
1 pc.
K.
.
Shelf
helf
2 pcs.
Q.
Side Rack
1 pc.
S.
Pipe
3 pcs.
M4x16
Wood Screw
for Caster
16 pcs. (+1 extra)
M3.5x13
Wood Screw (short)
24 pcs. (+1 extra)
G.
Back Stretcher
1 pc.
H.
Front Stretcher
1 pc.
F.
Back Piece
2 pcs.
L.
.
Handle Arm
2 pcs.
T.
Drawer
3 pcs.
(Please refer to the last pages of these
instructions for drawer assembly.)
Wood Plug
10 pcs. (+2 extra)
Knob
2 pcs.
Pull Handle
Adjustable Pin
4 pcs.
8 pcs. (+1 extra)
I.
Front Rail
3 pcs.
M.
Round Arm
1 pc.
U.
.
Drawer
rawer
1 pc.
M4x25
Machine Screw
10 pcs.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Home Styles 88 9100 001CN
Summary of Contents for Home Styles 88 9100 001CN
- Page 1 Wood Screw (short) Hex Wrench Two non-locking 4 pcs. 8 pcs. (+1 extra) 32 pcs. (+1 extra) 24 pcs. (+1 extra) 1 pc. 4 pcs. Tools required for assembly : Phillips screwdriver Home Styles Consumer Assistance: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
- Page 2 Assembly Instruction 2 / 6 IMPORTANT * Do not tighten up all the screws and bolts until each part is properly assembled. * You should keep Hex Wrench in a safe place as you may need to tighten up the Head Cap Bolts in the future. * Use a soft cloth between these parts and the fl...
- Page 3 Assembly Instruction 3 / 6 STEP 3 Attach unit to Base (J). Attach Attach Side Panel (A) to unit with Head Cap Bolts. Attach (see Figure 2) (see F Figure 2 Head Cap Bolt Head Cap Bolt STEP 4 Slide Back Panels (E) into the unit. Attach Back Stretcher (G) and Front Piece (H) to the unit with Head Cap Bolts.
- Page 4 Assembly Instruction 4 / 6 Head Cap Bolt STEP 6 Assemble Handle Arms (L) to Side Panel (B) with Head Cap Bolts. Slide Round Arm (M) into place. STEP 7 Insert Adjustable Pins into side panels and middle panels at the desired level and slide Shelves (K ) into place.
- Page 5 Assembly Instruction 5 / 6 Drawer (T) Figure 1 MAKE SURE ROLLER IS ON THE BACK STEP 1 Attach T1 to T3 and T4, using a Phillips screwdriver and long wood screws (4X), tighten halfway. Figure 2 Attach T2 to T3 and T4 using long wood screws (4X), tighten halfway.
- Page 6 Assembly Instruction 6 / 6 Drawer (U) Figure 1 STEP 1 Attach U1 to U3 and U4, using MAKE SURE ROLLER a Phillips screwdriver and IS ON THE BACK long wood screws (4X), tighten halfway. Figure 2 Attach U2 to U3 and U4 using long wood screws (4X), tighten halfway.
