BioSpectrum Imaging System

Components

The BioSpectrum Imaging System is comprised of the following equipment:

Darkroom Cabinet

Automated Filter Wheel and Emission Filters (3 Included with System)

CCD Camera and Lens:
o
o
o
o

UV-Blocking Gel Viewer Window in Darkroom Door

Automated or Manual Lift Platform (depending upon configuration)

Epi Illumination

Chemi Tray

LED White Light Illuminator

UV Transilluminator

VisionWorks
Refer to the packing slip for a complete equipment list. System components may vary. The system may
additionally include a computer and monitor, printer or BioLite™ MultiSpectral Light Source.

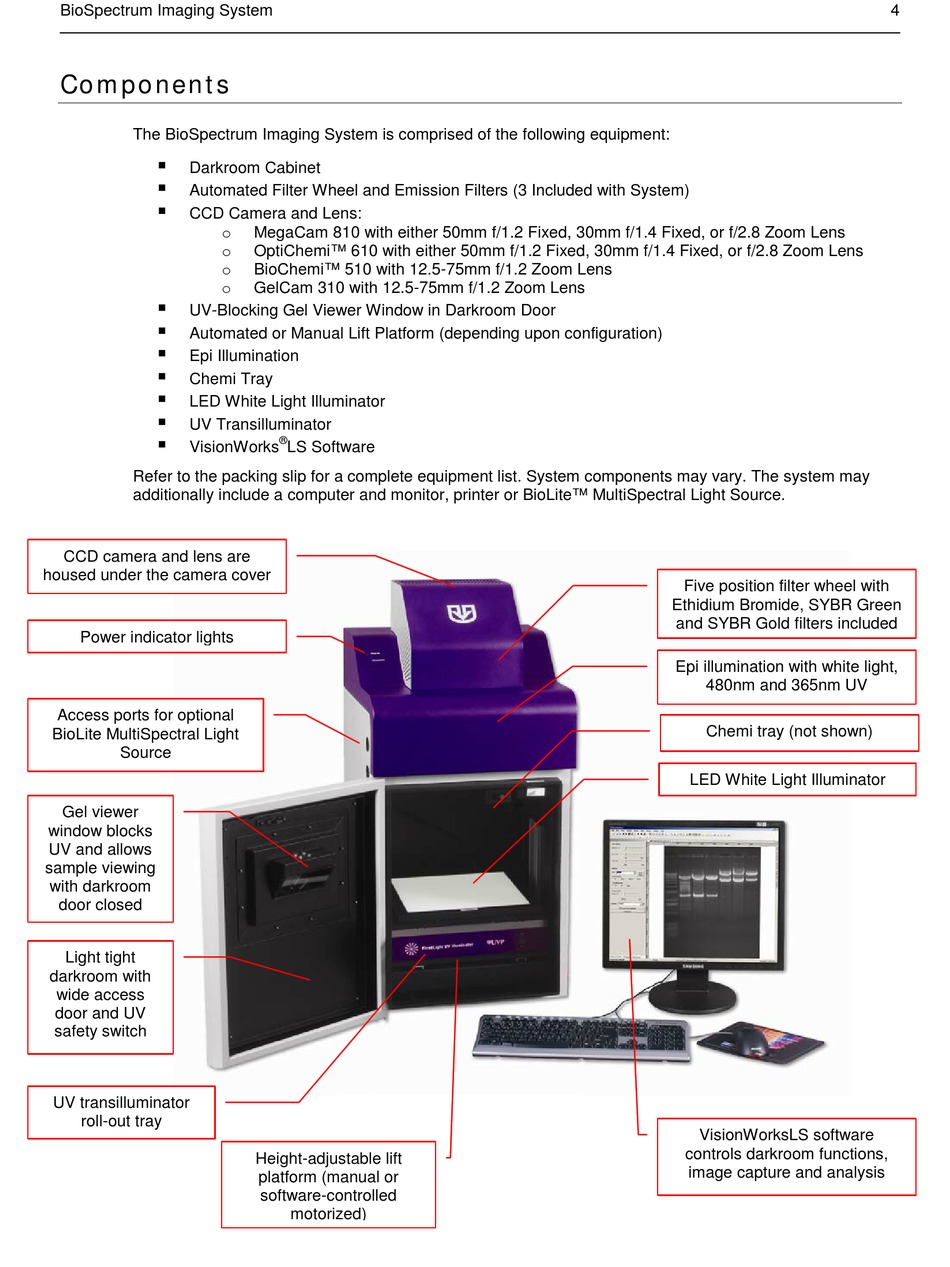

CCD camera and lens are
housed under the camera cover
Power indicator lights
Access ports for optional
BioLite MultiSpectral Light
Source
Gel viewer
window blocks
UV and allows
sample viewing
with darkroom
door closed
Light tight
darkroom with
wide access
door and UV
safety switch
UV transilluminator
roll-out tray
MegaCam 810 with either 50mm f/1.2 Fixed, 30mm f/1.4 Fixed, or f/2.8 Zoom Lens
OptiChemi™ 610 with either 50mm f/1.2 Fixed, 30mm f/1.4 Fixed, or f/2.8 Zoom Lens
BioChemi™ 510 with 12.5-75mm f/1.2 Zoom Lens
GelCam 310 with 12.5-75mm f/1.2 Zoom Lens
®
LS Software
Height-adjustable lift
platform (manual or
software-controlled
motorized)
Five position filter wheel with
Ethidium Bromide, SYBR Green
and SYBR Gold filters included
Epi illumination with white light,
480nm and 365nm UV
Chemi tray (not shown)
LED White Light Illuminator
VisionWorksLS software
controls darkroom functions,
image capture and analysis
