BioSpectrum Imaging System
Software Installation
Install the Camera Driver
1. Plug in the 90 degree USB cable from the camera into the USB port. Ensure that the camera is
connected to its own dedicated USB port and not to a USB hub or other similar shared device.
2. The computer should display Found New Hardware. Click Yes, Next, Install from a list, Next,
Don't search, Next, double click on Show all Devices, click Have disk, and then Browse.
3. Browse to the C:\Windows\system32\drivers folder and select the STUSB.inf file.
4. Select Open and then OK to install the camera.
5. Select Finish.
Note: The installation may cause a warning message stating that the drivers are "not verified by
Microsoft". Select Continue Anyway and the drivers will be installed correctly

MegaCam 810, OptiChemi 610 and BioChemi 510 Cameras

Camera Specifications
Specifications
Type
Resolution
Bit Depth
Quantum Efficiency
Cooling
Binning
PC Interface
Components
Note: Some components may not be shipped with all systems.
Note: The MegaCam 810, OptiChemi 610 and BioChemi 510 cameras use many of the same
components and are installed in a similar manner. Therefore, the installation instructions herein will
refer to all three cameras interchangeably.

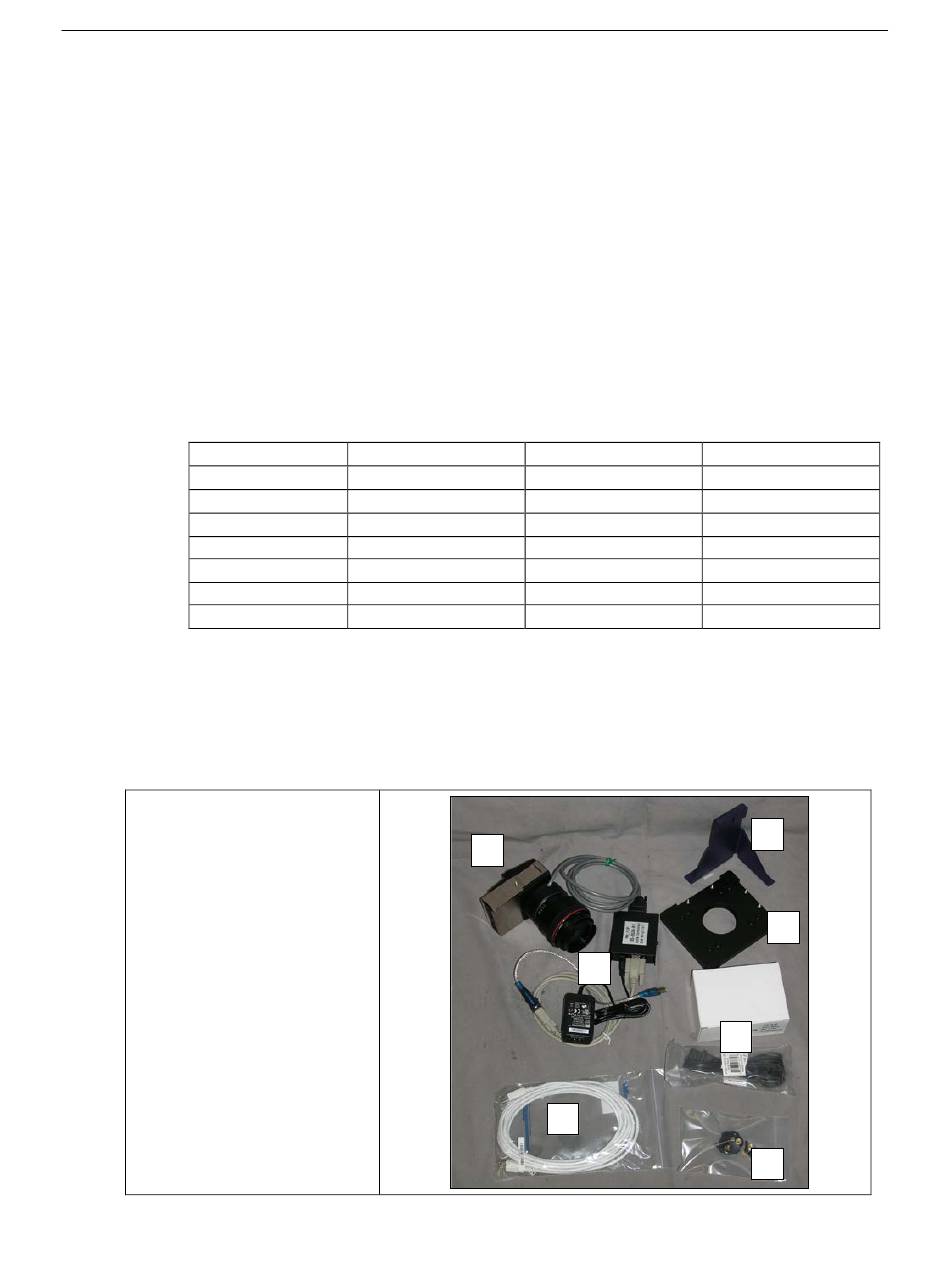

1. USB Cable
2. MegaCam 810/OptiChemi
610/BioChemi 510 Camera
3. Base Mount (ships attached
to the darkroom)
4. Bracket
5. Black Thumb Screw and
Brass Thumb Nuts
6. Camera Lens & Controller
7. Lens Controller Power
Supply Cable
MegaCam 810 OptiChemi 610
CCD, Monochrome CCD, Monochrome
3296 x 2472 2184 x 1472
16-bit 16-bit
50% peak 86% peak
-35˚C from Ambient -50˚C from Ambient
Yes, 1x1 thru 8x8 Yes, 1x1 thru 10x10
USB USB
2
BioChemi 510
CCD, Monochrome
2.1MP
16-bit
50% peak
-35˚C from Ambient
Yes, 1x1 thru 8x8
USB
6
7
1
15
4
3
5
