Summary of Contents for SCHUBERTH R2 BASIC

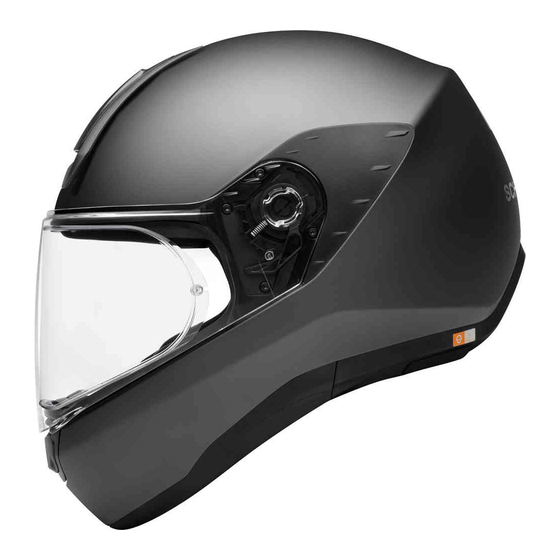

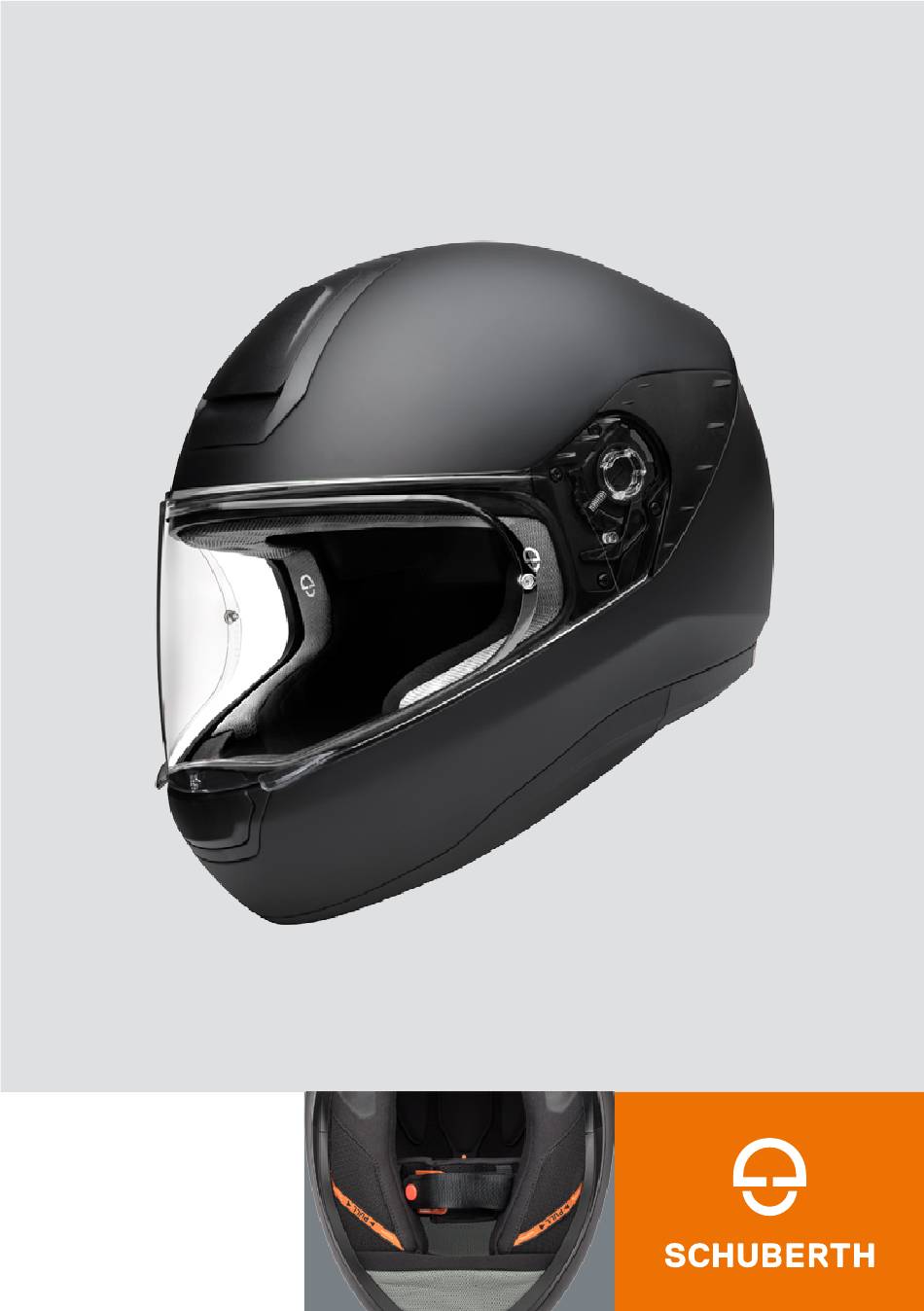

  • Page 1 MANUAL BASIC...
  • Page 2 – especially on long journeys. We hope you have plenty of fun with your SCHUBERTH R2 BASIC and a safe and enjoyable trip at all times.

  • Page 3: How To Use The Manual Correctly

    A. HOW TO USE THIS MANUAL CORRECTLY Please take time to read through this manual carefully so that your helmet protects you properly when riding your motorcycle. In order to ensure that you do not overlook any aspect of the manual that is relevant to your safety, we recommend that you read it in the order in which it appears.

  • Page 4: Table Of Contents

    B. CONTENTS How to use the manual correctly Contents The helmet Standard ECE approval Anatomy the helmet Outer shell Inner shell Aerodynamics Aeroacoustics Wind deflector Retention system Visor Inner lining Ventilation systems Additional safety features Putting on and taking off the helmet Putting on the helmet Taking off the helmet Before every journey...
  • Page 5 Safety advice concerning modifications / accessories Care and maintenance Outer shell Face shield and sun visor Inner lining Ventilation Locking system Storing the helmet Accessories and replacement parts Accessories and replacement parts Obtaining original SCHUBERTH parts SCHUBERTH service Warranty How to contact us...

  • Page 6: The Helmet

    It also guarantees conformity with all insurance requirements that are important in the event of a claim. Please note that this R2 BASIC with ECE approval is not certified for the USA, Canada or any other EU countries. It is only permitted for use in countries where the ECE standard is valid.

  • Page 7: Anatomy The Helmet

    Chin bar release fastening) 4. OUTER SHELL The outer shell of the R2 BASIC helmet combines an aerodynamically optimal shape with consistent protection. It consists of a special glass-fibre reinforced special duroplastic matrix developed by SCHUBERTH, which gives the helmet the high level of strength needed for your protection.

  • Page 8: Aerodynamics

    C. THE HELMET 6. AERODYNAMICS Wind noise is low with the R2 BASIC, both for race-riding and during long touring rides. The R2 BASIC produces practically no uplift even at speed. Note: Please note that the strong eddy currents that can occur as a result of the fairing on faired motorcycles may have a significant effect on the aerodynamic characteristics of a helmet.
  • Page 9 Note: With faired motorcycles, strong eddy currents occur at the edges of the wind shadow. These may significantly reduce the aeroacoustic performance of the helmet. The motorcycle fairing should be adjusted so that the turbulence created does not strike the bottom surface of the helmet.

  • Page 10: Wind Deflector

    9. RETENTION SYSTEM The restraint system of the R2 BASIC consists of the chinstrap. For helmet sizes up to and including 54/55, a neckband is also available in the neck area. CHIN STRAP WITH DOUBLE-D-FASTENING The double-D-fastener allows for an easy and precise adjustment of the chin strap.

  • Page 11: Visor

    3. Pull the free end of the chin strap until it’s tight and comfortable on your chin. 4. Take the free end of the chin strap reverse and affix to the press stud. Loosing and opening Release the press stud and pull on the red lug of the double-D-fastener, so that the chin strap is loosened.
  • Page 12 The helmet should never be used to hold gloves or any other objects as this may damage the scratch-sensitive anti-fog lens. Note: The anti-fog lens may only be used in conjunction with the SCHUBERTH main face shield that has been specially designed for this purpose. Other face shields must not be fitted.
  • Page 13 CLOSING THE FACE SHIELD To close the face shield, grip the finger tabs at top left and right and press the face shield down with one movement until it audibly locks into place. REPLACING THE VISOR SHIELD Changing the visor shield is easy to do without tools using the convenient EasyChange visor mechanism.
  • Page 14 C. THE HELMET 3. Move the face shield upwards until it is released from the face shield mechanism. Fitting the face shield 1. Using both hands, guide the face shields locking studs into the respective recesses in the face shield mechanism. 2.
  • Page 15 ANTI-FOG LENS Fitting 1. Lay the anti-fog lens in the face shield in such a way that one side of it is already slotted into the locking pin. 2. Now grasp the other side of the antifog lens by its upper and lower transverse edges and use your index finger to gently press the end of the visor into a slight "S"...
  • Page 16 C. THE HELMET If the anti-fog lens is not air-tight and the face shield mists up, either the visor is not correctly in place or the pressure on the seal is inadequate. You can regulate the pressure on the seal by adjusting the eccentric locking pins. To do so, remove the anti-fog lens, then use a flat object with no sharpedges to push the locking pins out of the face shield carefully from the inside;...
  • Page 17 When removing or fitting the anti-fog lens, it is always best to lay the face shield unit on a clean, dry cloth. Note: Due to the high air pressure caused while riding with an open visor, we generally recommend closing the visor to prevent dirt and moisture from getting in.

  • Page 18: Inner Lining

    C. THE HELMET 11. INNER LINING The replaceable inner lining of the R2 BASIC is washable and ensures both an excellent fit and improved ventilation of the helmet. The high-comfort cheek pads ensure that the helmet fits comfortably around the cheeks, and the headband pad provides an optimal fit all around the head.
  • Page 19 2. Loosen the sewn-in pins of the comfort cheek pad from the red-marked connectors on the helmet’s inner shell. 3. Proceed with the second comfort cheek pad as explained in steps 1 and 2. Removing head padding 1. Undo the buttons at the back of the head padding.
  • Page 20 C. THE HELMET FITTING INNER LINING Installing head padding Using the red pins, attach the head padding to the two connectors in the forehead area and the one at the back of the helmet Fitting the high-comfort cheek pads 1. Pull the chinstrap through the cheek pads on each inner side.
  • Page 21 2. Fix the comfort cheek pads with the help of the redmarked connectors. 3. Slide the retaining tab oft he comfort cheek pad into the guide gap between the helmet’s inner and outer shell. Start with the lower part of the cheek pad. 4.

  • Page 22: Ventilation Systems

    12. VENTILATION SYSTEMS VENTILATION DEVICE 1 – FACE SHIELD SETTING The R2 BASIC has a face shield that adjusts to several positions. Depending on your road speed and the tendency of the face shield to mist up, open the face shield sufficiently wide to stop it misting up but so that it still protects your eyes from excessive draft.

  • Page 23: Additional Safety Features

    Black reflective patches in the neck pad and in the forehead area make the motorcyclist more visible. With solid-colour helmets (no decals), the SCHUBERTH logo on the back of the helmet is also made of reflective film. Note: Keep the reflective safety areas clean.

  • Page 24: Putting On And Taking Off The Helmet

    D. PUTTING THE HELMET ON AND TAKING IT OFF Note: Please note the information on the handling of the chin strap. 1. PUTTING THE HELMET ON AND TAKING IT OFF 1. Open the chinstrap. 2. Take hold of the lower ends of the chinstrap and pull these apart. 3.

  • Page 25: Before Every Journey

    E. BEFORE EVERY JOURNEY For your safety, check the following points before every journey: 1. CHECKING THE HELMET Check the helmet regularly for damage. Small superficial scratches will not impair the protective function of your helmet. In the case of more serious damage (cracks, dents, flaking and cracking paint, etc.), the helmet should no longer be used.

  • Page 26: Checking The Face Shield And Sun Visor

    E. BEFORE EVERY JOURNEY 3. CHECKING THE FACE SHIELD Before each ride, please check the visor function provides a sufficiently good view. Impurities should be removed before each ride. Inspect the visor for mechanical damage and cracks. A heavily scratched visor significantly affects vision and should be replaced before starting the ride if necessary.

  • Page 27: For Your Safety

    F. FOR YOUR SAFETY 1. SAFETY ADVICE CONCERNING THE HELMET Motorcycling is associated with particular risks and dangers for the rider and passenger. These risks and dangers can be reduced, but not eliminated completely, by wearing a helmet. It is impossible to state precisely what the protective effect of a helmet will be in the event of an accident.

  • Page 28: Safety Advice Concerning The Face Shield / Sun Visor

    ECE certification and all warranty and insurance claims invalid. Use only original parts, replacement parts and accessories that SCHUBERTH has expressly approved for your helmet!

  • Page 29: Care And Maintenance

    G. CARE AND MAINTENANCE 1. OUTER SHELL To clean the helmet shell, you can use water, soap or one of the commonly available motorcycle shampoos, cleaners, polishes, plastic cleaners or cleaning fluids. Using water and soap is usually sufficient. Make sure when using the other cleaning materials that these do not come into contact with the face shield, since they can cause damage to the visor and its coating.

  • Page 30: Inner Lining

    Do not attach labels, tape or stickers to the visor. 3. INNER LINING The inner lining of the R2 BASIC can be removed completely. The head and cheek pads can be washed by hand using a mild soap solution (e.g. with highly diluted standard mild detergent) at a maximum temperature of 30 °C.

  • Page 31: Locking System

    2. After cleaning, guide the ventilation slider into the corresponding guide. Then push the slider backwards with a little pressure. 5. LOCKING SYSTEM The metal components of the locking system do not require maintenance. 6. STORING THE HELMET Store the helmet in a dry, well-ventilated and stable location. Always position the helmet so that it cannot fall to the floor.

  • Page 32: Accessories And Replacement Parts

    An overview of all available accessories and spare parts can be found on the Internet at WWW.SCHUBERTH.COM We recommend that you only use original SCHUBERTH accessories and spare parts for your SCHUBERTH helmet as they are specially adapted to your helmet model. Caution: For safety reasons, all other parts of the helmet should be replaced by the SCHUBERTH Repair Service only.

  • Page 33: Schuberth Service

    J. WARRANTY Please check your statutory warranty entitlement in your country. You can also enjoy the benefits of the “5 YEARS SCHUBERTH STANDARD GUARANTEE”. Register your C4 on the internet at WWW.SCHUBERTH.COM to enjoy the privileges of your extended guarantee.

  • Page 34: How To Contact Us

    K. HOW TO CONTACT US HEADQUARTERS Phone +49 (0)391 8106-0 Address SCHUBERTH GmbH Stegelitzer Straße 12 39126 Magdeburg Germany WWW.SCHUBERTH.COM...
  • Page 36 Änderungen vorbehalten. Keine Gewährleistung auf Irrtümer und Druckfehler. Subject to change. Not responsible for mistakes or printing errors. WWW.SCHUBERTH.COM...
