SCHUBERTH SC2 Quick Start Manual

Hide thumbs Also See for SC2:
Table of Contents

Advertisement

Quick Links

QUICK START GUIDE
ENGLISH
SC2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SC2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SCHUBERTH SC2

Summary of Contents for SCHUBERTH SC2

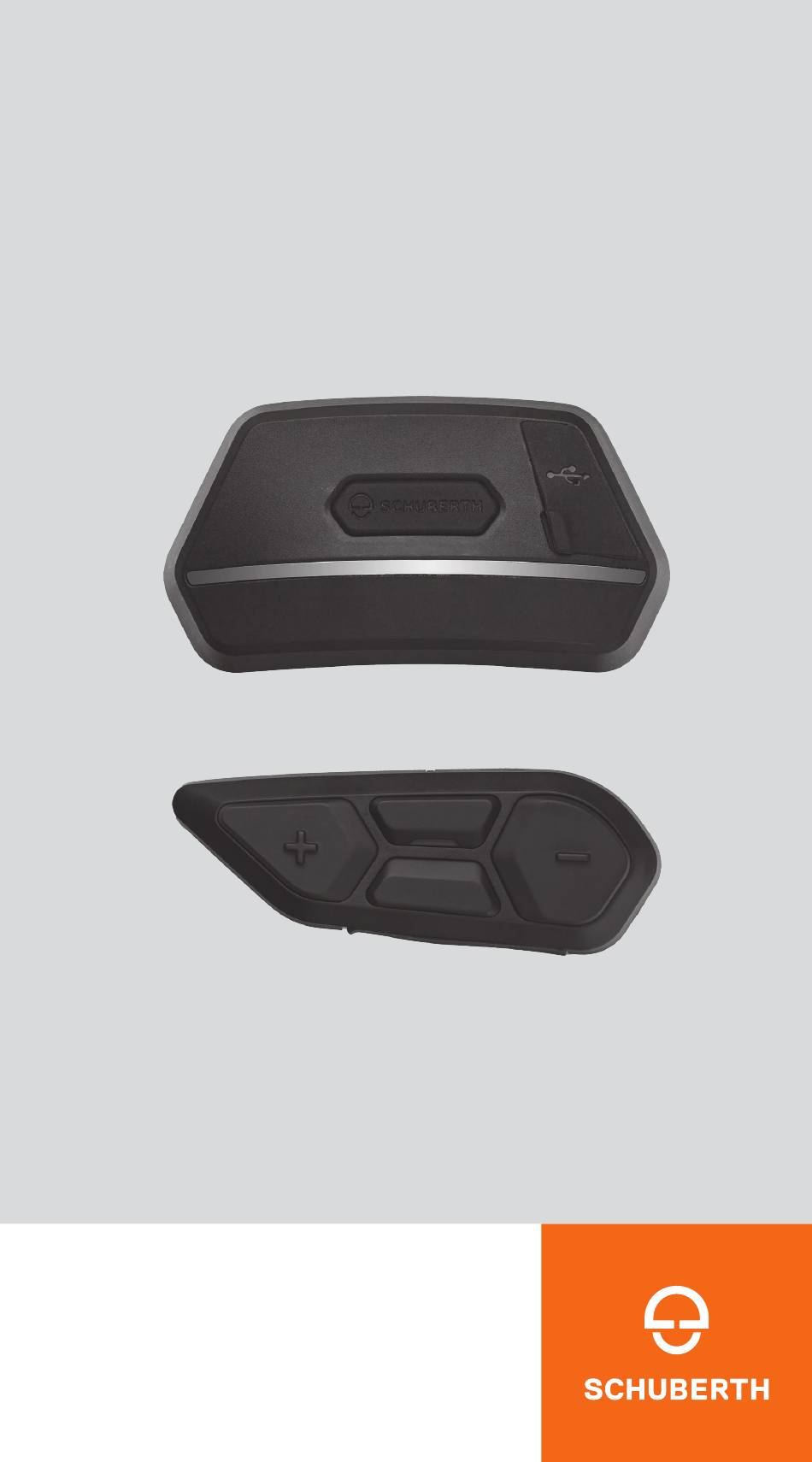

  • Page 1 QUICK START GUIDE ENGLISH...

  • Page 2: Product Features

    SCHUBERTH SC2 APP App functions: Mesh Intercom, Bluetooth Intercom, Music, Device settings, Language settings SCHUBERTH DEVICE MANAGER The SCHUBERTH Device Manager allows you to upgrade the firmware and configure its settings directly from your PC. Download the SCHUBERTH Device Manager from oem.sena.com/schuberth/.

  • Page 3: Product Details

    User’s Guide This product comes with a Quick Start Guide, which is a basic version of the User’s Guide. A FULL VERSION OF THE USER’S GUIDE CAN BE DOWNLOADED AT oem.sena.com/schuberth/. PRODUCT DETAILS Multi-function Button Status LED DC Power Charging & Firmware Upgrade Port...

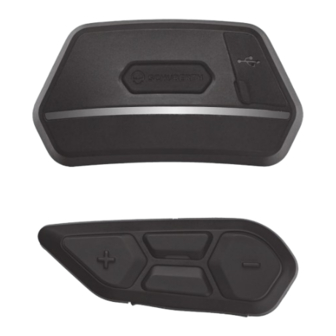

  • Page 4 SC2 Remote Control (+) Button Center Button (-) Button Mesh Intercom Button Battery Slot Battery Release Hole INSTALLING THE SC2 REMOTE CONTROL Cover for the SC2 Remote Control...
  • Page 5 INSTALLING THE SC2 Click...
  • Page 6 Click REMOVING THE SC2 Note: When you need to un-plug the connectors, please wiggle and pull them. It will help the connector connection be released more easily.
  • Page 7 INSTALLING THE MICROPHONE (THE MICROPHONE IS PRE-INSTALLED ON THE S3) Install the microphone by pressing firmly on the area marked with the orange circle.

  • Page 8: Replacing The Battery

    REPLACING THE BATTERY CR 2016...

  • Page 9: Icon Legend

    2 seconds until you hear the double beep. The remote control switches to sleep mode when you switch off the SC2. To wake up the remote control after starting the SC2, tap (+) Button on the remote control. SC2 REMOTE CONTROL...

  • Page 10: Checking The Battery Level

    Powering Off Note: The SC2 and the SC2 Remote Control come paired together. They will automatically connect to each other when the SC2 and the SC2 Remote Control are powered on. Volume Up & Down CHECKING THE BATTERY LEVEL When switching on, the LED flashes red to indicate the charge level.

  • Page 11: Phone Pairing

    PHONE PAIRING “ Configuration menu” “Phone pairing” Bluetooth Device B MOBILE PHONE Answer a Call End & Reject a Call...

  • Page 12: Music Controls

    SIRI AND GOOGLE ASSISTANT Activate the Siri or Google Assistant installed on Your Smartphone “Hey Google” or “Hey Siri” “[Beep, Beep]” MUSIC CONTROLS Play & Pause “[Beep, Beep]” Track Forward & Backward...

  • Page 13: Mesh Intercom

    MESH INTERCOM™ When Mesh Intercom is enabled, the SC2 will automatically connect to nearby all other Mesh users and allow them to talk to each other by pressing the Mesh Intercom Button. Note: If the SC2 communication system is installed on full Carbon helmets, the maximum...

  • Page 14: Channel Setting

    CHANNEL SETTING (DEFAULT: CHANNEL 1) If the Open Mesh communication experiences interference because other groups are also using channel 1 (default), change the channel. You can select from channels 1 to 9. Enter into the Channel Setting “ Channel setting, 1” Navigate between Channels Exit “...
  • Page 15 GROUP MESH™ Group Mesh is a closed group intercom function that allows users to join, leave, or rejoin a group intercom conversation without pairing each headset. Up to 24 users can all be connected in each private group. CREATING A GROUP MESH Creating a Group Mesh requires two or more Open Mesh users.
  • Page 16 2. The headsets complete Mesh Grouping and automatically switch from Open Mesh to Group Mesh. “Group Mesh” Open Mesh Group Mesh JOINING AN EXISTING GROUP MESH One of the members in an Existing Group Mesh can allow new members in Open Mesh to join the Existing Group Mesh.
  • Page 17 1. One of the current members (E) and a new member (you [C]) enter into Mesh Grouping to join the Existing Group Mesh. “ Mesh Grouping” 2. The headsets complete Mesh Grouping. The new members will hear a voice prompt as their headsets automatically switch from Open Mesh to Group Mesh.

  • Page 18: Bluetooth Intercom

    Up to three other people can be paired with the your headset (A) for Bluetooth intercom conversations. Intercom Pairing Note: If the SC2 communication system is installed on full Carbon helmets, the maximum range of communication is limited to 400 meters...

  • Page 19: Two-Way Intercom

    Pairing with Intercom B “ Intercom pairing” The SC2 will automatically pair with a Sena headset. Flashing blue LED on SC2 (main unit) twice simultaneously confirms intercoms are paired. Note: Repeat the step above to pair with Intercom Friends C & D.
  • Page 20 Start & End with Intercom Friend 1-3 Friend 1 Friend 2 Friend 3 FM RADIO FM Radio On & Off or “ FM off” “ FM on, ###” Scan Stations & Stop Scanning “ [FM frequency]” Seek Stations...

  • Page 21: Voice Command

    You can preset FM stations with the SCHUBERTH SC2 App or the SCHUBERTH Device Manager. • If the SC2 is installed on full Carbon helmets the electromagnetic interference shielding properties of the carbon fiber shell can influence the clarity of FM signals.

  • Page 22: Configuration Menu

    CONFIGURATION MENU Accessing the Headset Configuration Menu “Configuration menu” Navigating Between Menu Options “[Menu prompt]” Execute Menu Options TROUBLESHOOTING SC2 Factory Reset “ Headset reset, Good bye” SC2 Remote Control Factory Reset...
  • Page 23 Remote Control Pairing If you are using the SC2 Remote Control other than the one included in the package, follow the procedure below to pair the SC2 and the SC2 Remote Control. “ Remote control pairing” 3. The SC2 will automatically “...

  • Page 24: Quick Reference

    QUICK REFERENCE SC2 power on & off SC2 Remote Control power on SC2 Remote Control power off Basic Operations Volume up & down Answer phone call End & reject phone call Mobile Phone...
  • Page 25 Activate the Siri or Google Assistant Siri and Google Assistant Play & pause Track forward & backward Music FM radio on & off Select preset Seek forward & backward FM Radio Scan up & stop scanning...
  • Page 26 Mesh Intercom on & off Channel setting Mesh Grouping Reset Mesh Enable & disable mic Intercom pairing Start & end intercom Intercom...
  • Page 27 Producer: Sena Technologies Co., Ltd. 19, Heolleung-ro 569-gil, Gangnam-gu Seoul 06376, Republic of Korea Importer in Europe: SCHUBERTH GmbH Stegelitzer Straße 12 D-39126 Magdeburg, Germany Importer in US: SCHUBERTH North America 9920 Pacific Heights Blvd., Suite 150 San Diego, CA 92121 1.3.0_EN_December2023...
  • Page 28 Subject to change. No liability for mistakes and errors. WWW.SCHUBERTH.COM...
