- Page 1 QUICK START GUIDE EDGE...
- Page 2 The SC Edge is approved according to ECE 22.06 for the following SCHUBERTH helmets: Helmet model approval number 0610510 0610510 0610596 C5 CARBON E2 CARBON 0610596 0610579 0610632 Serial number / Batch number Approval number acc. ECE 22.06 MODEL: XXXXXXXX...
- Page 3 Cardo Connect App SCHUBERTH SC EDGE App functions: Mesh Intercom, Bluetooth Intercom, Music, Device settings, Language settings, Voice Commands List User’s Guide This product comes with a Quick Start Guide, which is a basic version of the User’s Guide. A full version of the user’s guide can be downloaded from: cardosystems.com/pages/support/sc-edge...
-
Page 4: Product Details

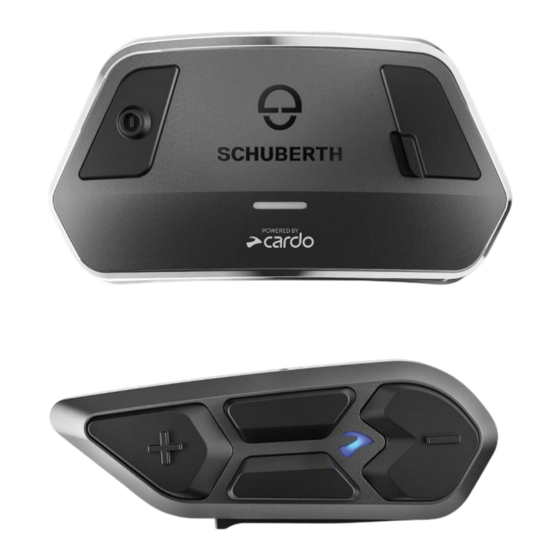

PRODUCT DETAILS SC EDGE Power & device Status LED pairing button Reset Indicator Charging port SC EDGE Remote Control (+) Button Media (-) Button Intercom Button Battery Slot Battery Release Hole... -
Page 5: Inserting The Battery
INSERTING THE BATTERY CR 2025 *unit also compatible with CR 2016... - Page 6 INSTALLING THE SC EDGE REMOTE CONTROL Cover for the SC EDGE Remote Control...
- Page 7 INSTALLING THE SC EDGE Single connector only click click...
- Page 8 REMOVING THE SC EDGE Note: Remove sticker from back unit before plugging the connectors. Note: When you need to un-plug the connectors, please wiggle and pull it. It will help the connector connection be released more easily. Note: Clean the communicator with a soft, lint-free cloth dampened in an electronic-safe solution, avoiding abrasive materials, and power off before cleaning.
-
Page 9: Installing The Microphone
INSTALLING THE MICROPHONE Note: the microphone is pre-installed on the S3 Install the microphone by pressing firmly on the area marked with the orange circle. Position the small triangle towards the mouth... - Page 10 They will automatically connect to each other when the SC Edge and the SC Edge Remote Control are powered on. * If you are using the SC Edge Remote Control other than the one included in the package, follow the procedure below to pair the SC...
- Page 11 Power Off - Remote Sec. Phone paring Sec. LED Red & Blue SC EDGE...
- Page 12 Cardo Connect App Download Register Choose Language Update Software...
- Page 13 Device pairing (GPS/Bike/Phone) Step 1 Sec. LED Red & Blue Step 2 SC EDGE Phone 1 Bike SC EDGE SC EDGE Phone 2 SC EDGE...
- Page 14 Device pairing (GPS/Bike/Phone) Stop phone Sec. Volume Up Volume Down...
- Page 15 Mute / Unmute Microphone Voice Assistant Siri Google Assistant...
- Page 16 Radio Set Presets Sec. Next Preset...
- Page 17 Previous Preset Auto tune Sec. Music Sec. Next...
- Page 18 Music Previous Mute audio Unmute audio tap any button...
- Page 19 Set Sharing Partner Start / Stop Sharing Sec. Switch source Music to Radio Radio to Music Sec.
- Page 20 Phone Call Answer incoming call Ignore incoming call End Call Speed dial (predefined number)
- Page 21 DMC Intercom Grouping Sec. LED Red & Green Grouping Success LED Purple Stop Grouping Sec. Mute / Unmute group Sec.
- Page 22 DMC Intercom Share call Sec. Start / Stop Private Chat Connect / Disconnect Bluetooth passenger to DMC Switch source DMC to Bluetooth Bluetooth to DMC ® ® Sec.
- Page 23 Bluetooth Intercom Pairing Pair to Rider A Sec. LED Red *Start Bluetooth intercom pairing on the other unit, according to its manual Pair to Rider B Sec. LED Blue LED Red *Start Bluetooth intercom pairing on the other unit, according to its manual Return to Rider A...
- Page 24 Stop Intercom pairing Sec. Share / Stop phone call Sec. Call/End Intercom (for both Rider A&B)
-
Page 25: Troubleshooting
TROUBLE SHOOTING Reboot Sec. Factory Reset Factory Reset will delete all pairings and all user setting Sec. Through Cardo Connect App Caution! This hole is a microphone. Do not insert any sharp object. - Page 26 Voice Commands - Always On! • Answer • Ignore • “Hey Cardo, call” • “Hey Cardo, speed dial” • “Hey Cardo, redial number” • “Hey Cardo, music on” • “Hey Cardo, music off ” • “Hey Cardo, next track” • “Hey Cardo, previous track”...
- Page 27 Manufacturer: Cardo Systems Ltd., 101 E. Park Blvd., Suite 600 Plano, TX 75074, USA. Importer in Europe: SCHUBERTH GmbH Stegelitzer Strasse 12, 39126 Magdeburg, Germany Importer in UK: Tran Am Ltd William House, Gore Road GB BH25 6RJ New Milton Hants Importer in US: SCHUBERTH North America 9920 Pacific Heights Blvd.,...
