SCHUBERTH R2 BASIC Manual page 13

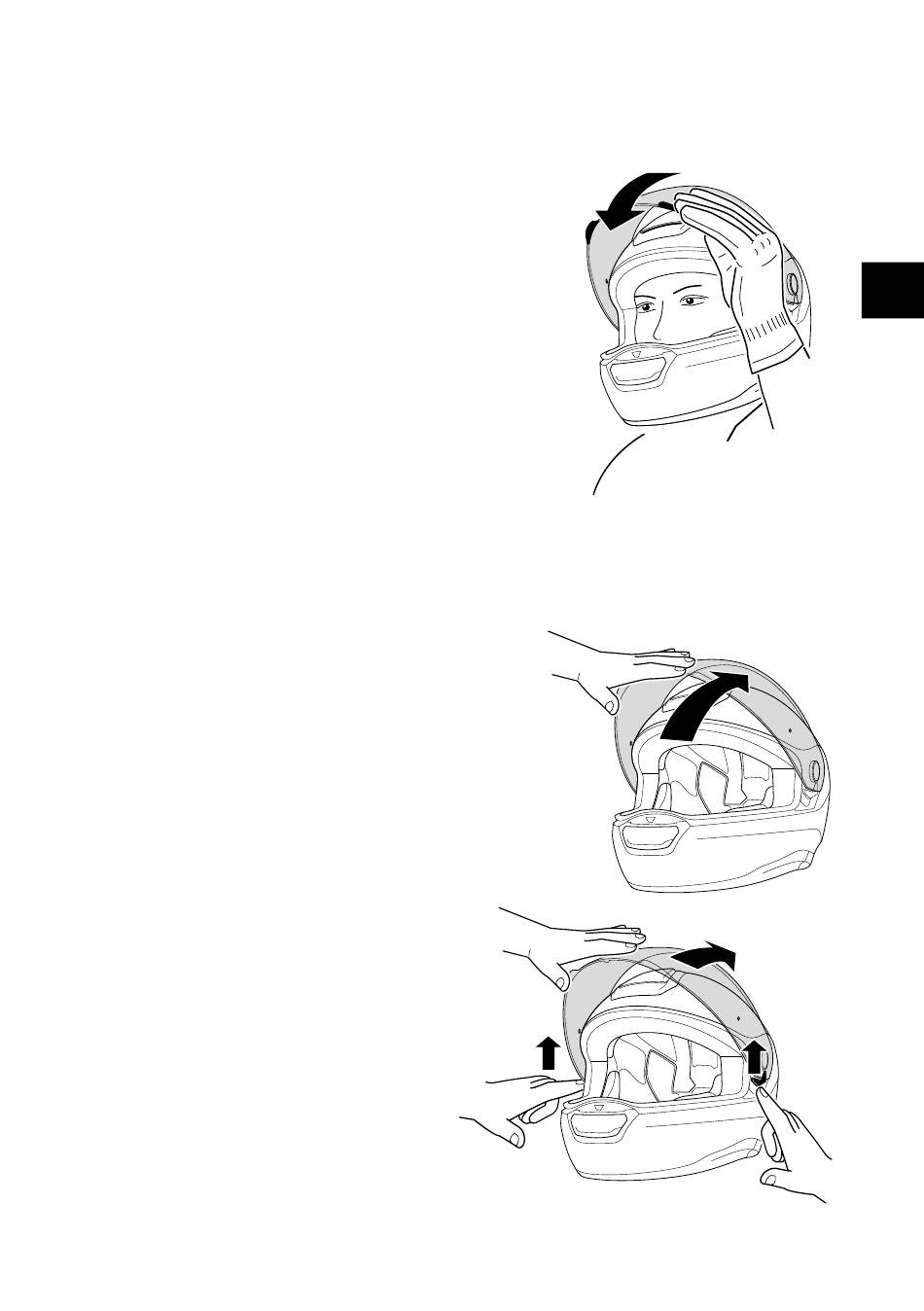

CLOSING THE FACE SHIELD
To close the face shield, grip the finger tabs at
top left and right and press the face shield down
with one movement until it audibly locks into
place.
REPLACING THE VISOR SHIELD
Changing the visor shield is easy to do without tools using the convenient
EasyChange visor mechanism. To replace the visor, it is helpful to place the
helmet on a flat surface or on your lap while seated.
Removing the face shield
1. Move the face shield into the
uppermost locked position.
2. Press the spring underneath the
face shield mechanism on one side
towards the face shield opening,
then do the same with the spring on
the other side.
EN
13
