Appendix

10

Wiring diagrams

10 Appendix
10.1 Wiring diagrams

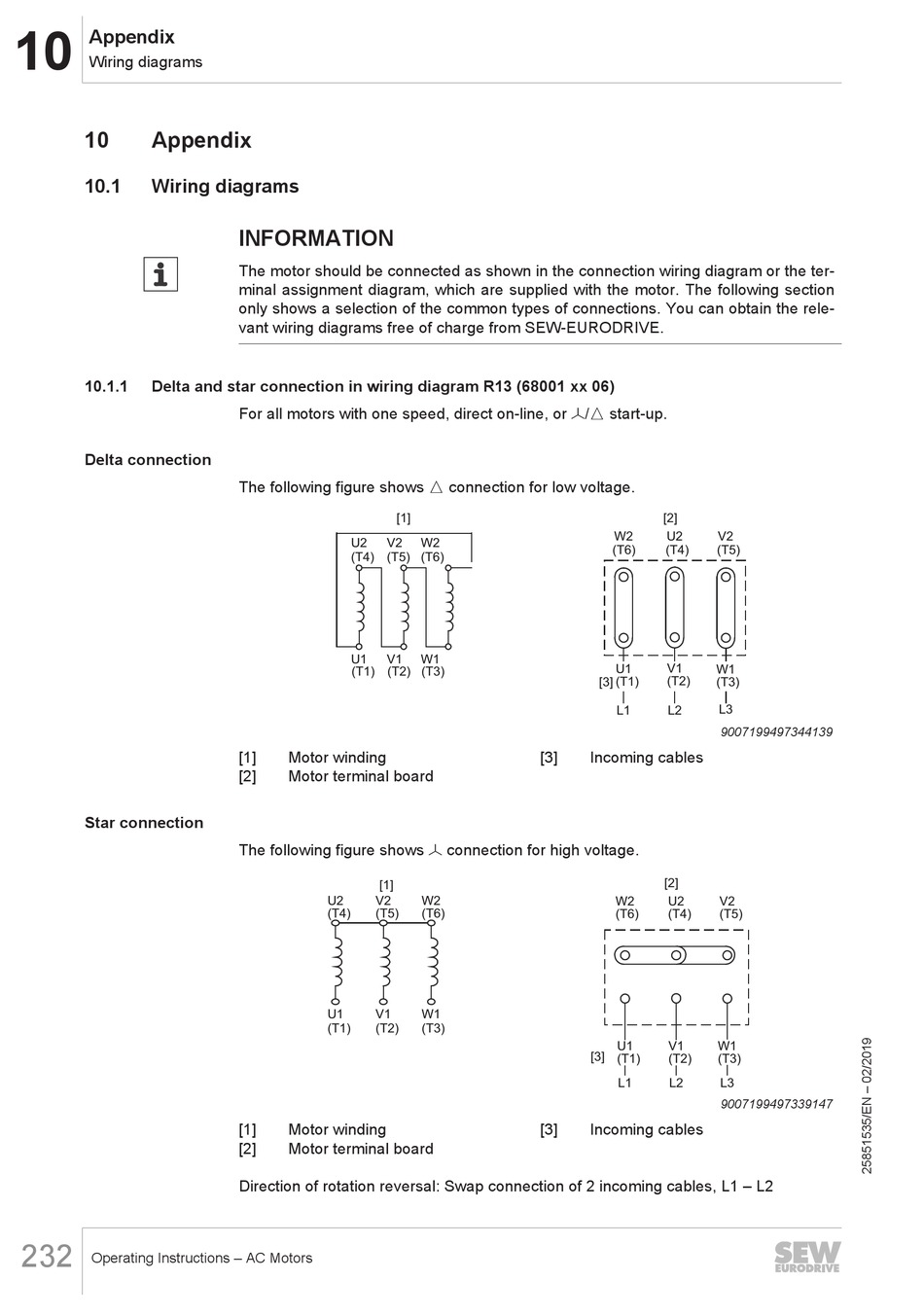

10.1.1 Delta and star connection in wiring diagram R13 (68001 xx 06)
Delta connection
Star connection
232
Operating Instructions – AC Motors
INFORMATION
The motor should be connected as shown in the connection wiring diagram or the ter-
minal assignment diagram, which are supplied with the motor. The following section
only shows a selection of the common types of connections. You can obtain the rele-
vant wiring diagrams free of charge from SEW‑EURODRIVE.
For all motors with one speed, direct on-line, or W/m start-up.
The following figure shows m connection for low voltage.
[1]
U2 V2
(T4) (T5)
U1 V1
(T1) (T2)
[1] Motor winding
[2] Motor terminal board
The following figure shows W connection for high voltage.
[1]
U2 V2
(T4) (T5)
U1 V1
(T1) (T2)
[1] Motor winding
[2] Motor terminal board
Direction of rotation reversal: Swap connection of 2 incoming cables, L1 – L2
W2
(T6)
W1
(T3)
[3] Incoming cables
W2
(T6)
W1
(T3)
[3]
[3] Incoming cables
[2]
W2 U2 V2
(T6) (T4) (T5)
U1 V1
W1
(T1) (T2)
[3] (T3)
L3
L1 L2
9007199497344139
[2]
W2 U2 V2
(T6) (T4) (T5)
U1 V1 W1
(T1) (T2) (T3)
L1 L2 L3
9007199497339147
