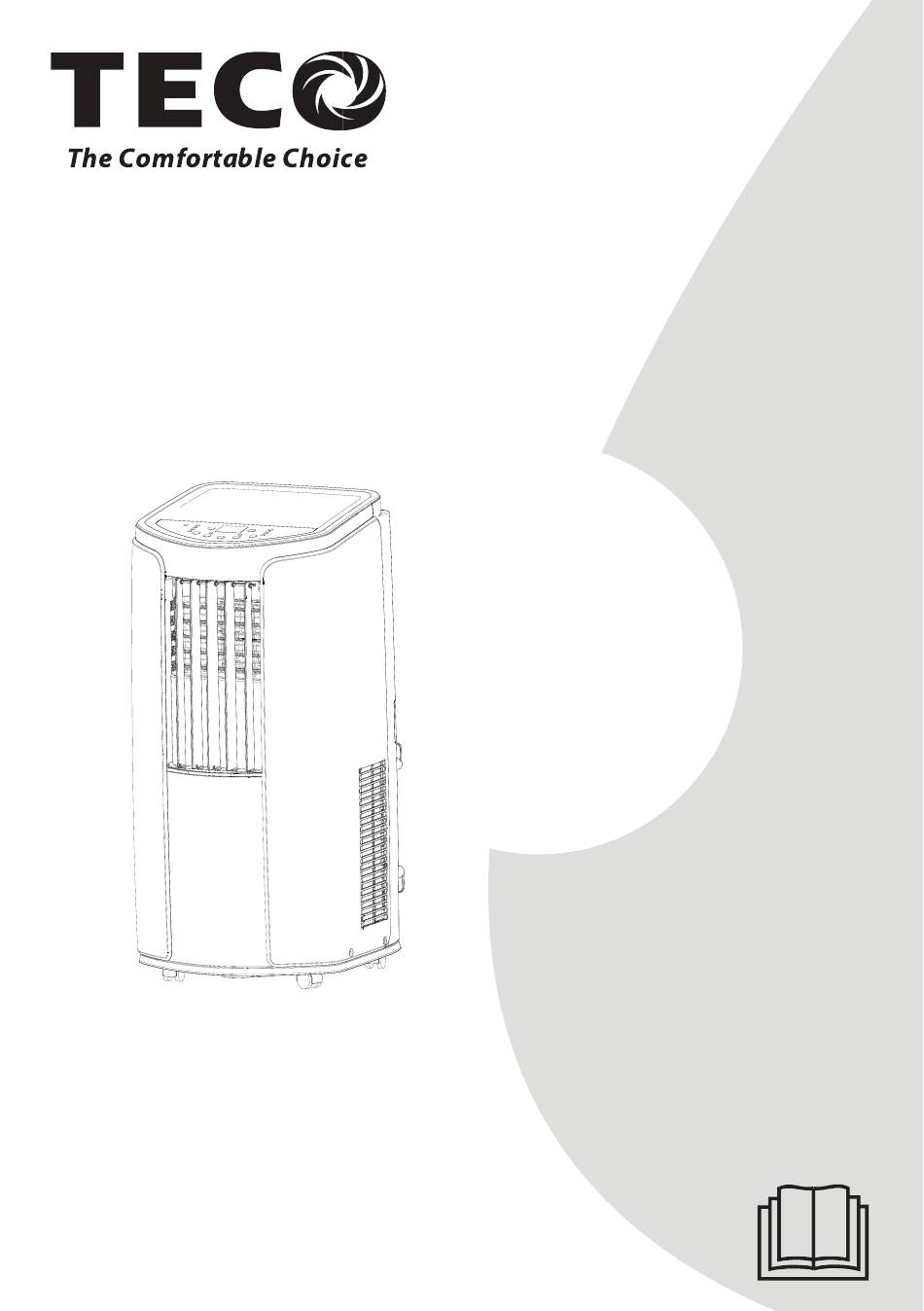

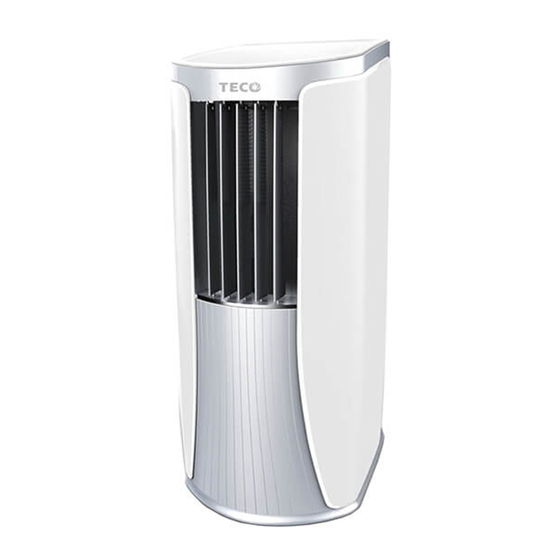

PORTABLE AIR CONDITIONER
Owner's Manual
IMPORTANT NOTE:
Thank you for selecting a TECO quality Air Conditioner. Read this
manual carefully before installing or operating your new air
conditioning unit. Make sure to save this manual for future
reference.
The design and specifications are subject to change
without prior notice for product improvement. Consult with the
sales agency or manufacturer for details.
Model:
TPO40CFWBG
(Cooling Only)
TPO40HFWBG
(Cooling&Heating)
Advertisement
Table of Contents
Related Manuals for TECO TPO40CFWBG
Summary of Contents for TECO TPO40CFWBG
- Page 1 (Cooling Only) TPO40HFWBG (Cooling&Heating) IMPORTANT NOTE: Thank you for selecting a TECO quality Air Conditioner. Read this manual carefully before installing or operating your new air conditioning unit. Make sure to save this manual for future reference. The design and specifications are subject to change without prior notice for product improvement.
-
Page 2: Table Of Contents
Content Operation Notices Operation Environment ...................1 Safety Warning ......................2 Part's Name ......................3 Operation Guide Operation Introduction for Control Panel ..............4 Use for Air Conditioner ....................6 Using the Remote Control ..................7 Buttons on Remote Control ..................8 Introduction for Icons on Display Screen ..............8 Introduction for Buttons on Remote Control .............9 Function Introduction for Combination Buttons .............12 Operation Guide ....................13... - Page 3 Explanation of Symbols Indicates a hazardous situation that, if not avoided, will DANGER result in death or serious injury. Indicates a hazardous situation that, if not avoided, could WARNING result in death or serious injury. Indicates a hazardous situation that, if not avoided, may CAUTION result in minor or moderate injury.
-
Page 4: Operation Environment
Operation Environment ● The air conditioner must be operated within the temperature range: 16°C ~ 35°C. ● The appliance is for indoor use only. ● This appliance is designed for domestic room air conditioning and must not be used for other purposes. ●... -
Page 5: Safety Warning
● Do not modify or alter the characteristics of the appliance in any way. ● Prohibit inserting any objects into the air conditioner. ● If the appliance requires repair, contact the TECO National Service Centre. Repairs carried out by unauthorised personnel may be dangerous and warranty may be voided. -
Page 6: Part's Name
Part's Name Controller panel Guide louver Swing louver Castor Wire-fixing hook Plug of power cord Filter Air inlet Joint A Heat discharge pipe Joint B+C Remote controller compartment 11 10 Remote controller NOTICE: Please do not discarded all installation accessories. -
Page 7: Operation Introduction For Control Panel
Operation Introduction for Control Panel Name of control panel Dual-8 nixie tube Health indicator + / - butto Cool mode indicator (Not applicable for this unit) Dry mode indicator Fan mode indicator Heat mode indicator Cool&Heat Unit only Fan speed indicator Mode button Wifi button Timer button... - Page 8 Operation Introduction for Control Panel Mode button Press this button and the mode will circulate according to below sequence: Cool→Dry→Fan→Heat Cool&Heat Unit only Cool: Under this mode, cooling mode indicator is bright. Dual-8 nixie tube displays set temperature. Temperature setting range is 16 °C~30°C. Dry: Under this mode, drying mode indicator is bright.
-
Page 9: Use For Air Conditioner
Use for Air Conditioner To change air flow direction 1. Up/down air flow direction • Hold the horizontal louvers as shown in the diagram and adjust the air flow direction. • Do not adjust the horizontal louvers to the lowest or the highest position in the COOL or DRY mode with the fan speed set to Low for an extended period of time, condensation may form on the louvers. -
Page 10: Using The Remote Control
Using the Remote Control This is a general use remote controller, it could be used for the air conditioners with multifunction; For some function, which the model doesn't have, if press the corresponding button on the remote controller that the unit will keep the original running status. -
Page 11: Buttons On Remote Control
Buttons on Remote Control ON/OFF button ▲ button MODE button SWING button (Not applicable) button FAN button TIMER OFF button CLOCK button TIMER ON button SLEEP button TEMP button (Not applicable) TURBO button X-FAN button WiFi button button (Not applicable) Introduction for icons on display screen Set fan speed I feel... -
Page 12: Introduction For Buttons On Remote Control
Introduction for Buttons on Remote Control Note: ● This is a general use remote controller, it could be used for the air conditioners with multifunction; For some function, which the model doesn't have, if press the corresponding button on the remote controller that the unit will keep the original running status. - Page 13 Introduction for Buttons on Remote Control FAN button This button is used for setting Fan Speed in the sequence that goes from AUTO, , to , then back to Auto. Auto Low speed Medium speed High speed Note: ● Unde AUTO speed, air conditioner will select proper fan speed automatically according to ex-factory setting.
- Page 14 Introduction for Buttons on Remote Control SLEEP button Press this button to go into the SLEEP operation mode. Press it again to cancel this function. This function is available in COOL, HEAT (Only for models with heating function) to maintain the most comfortable temperature for you. TEMP button Press this button, you can see indoor set temperature, indoor ambient temperature on indoor unit’s display.
-
Page 15: Function Introduction For Combination Buttons
Introduction for Buttons on Remote Control (Not applicable for this unit) button Function introduction for combination buttons ▲ Combination of " " and " " buttons: About lock Press "▲" and " " buttons simultaneously to lock or unlock the keypad. If the remote controller is locked, is displayed. -
Page 16: Operation Guide
Operation Guide 1. After putting through the power, press " " button on remote controller to ON/OFF turn on the air conditioner. Press " " button to select your required mode: AUTO, COOL, DRY, FAN, MODE (Cool&Heat Unit only). HEAT. Press "+"... -
Page 17: Installation Precaution
Installation Precaution WARNING: ● Observe all governing codes and ordinances. ● Do not use damaged or non-standard power cord. ● Be caution during installation and maintenance. Prohibit incorrect operation to prevent electric shock, casualty and other accidents. Selection of installation location Basic requirement Installing the unit in the following places may cause malfunction. -
Page 18: Preparation Before Installation
Preparation Before Installation NOTICE: Check if the accessories are available before installation. Accessory list joint A joint B joint C heat discharge pipe window panel exhaust cover wire hook extension panel adjustment panel screw pipe clip rubber plug pipe hoop battery drain connector remote controller... -
Page 19: Install Wire Hook
Install Wire Hook ● Assemble the wire hook at the back of the unit with screws (the direction of wire direction of wire hook is upward wire hook screw direction of wire hook is downward ● Wind the power cord around the wire hook. -
Page 20: Removing Collected Water
Removing Collected Water There are 2 ways to remove collected water: Use the continuous drainage option from the lower hole. NOTICE: When using the continuous drainage option from the bottom hole, install drainage pipe as follow before using, otherwise poor drainage will affect normal operation of the unit. - Page 21 Removing Collected Water ■ Drainage way as follows. 1. In Cool, Dry or Heat mode operating, the condensation water will be drained to the chassis. 2. When the chassis is full with water, the buzzer will give out 8 sounds and "H8" is displayed to remind user to discharge water: ●...
- Page 22 Removing Collected Water Use the continuous drainage option from the middle hole NOTICE: Water can be automatically emptied into a floor drain by attaching 14mm inner diameter hose (not included). 1. Remove the continuous drain cap 1 by turning it counter clockwise then remove the rubber stopper 2 from the spout.
-
Page 23: Installation In A Double-Hung Sash Window(Optional)
Installation in a Double-hung Sash Window(Optional) The window panel cannot be installed in windows less than 20.5" (520mm) wide, as you will be unable to shut the exhaust cover. (1) Open the window sash and place the window panel on the window sill. (2) Secure the window panel to the window stool with screws. - Page 24 Installation in a Double-hung Sash Window(Optional) 5. Close the window sash securely against the Window panel. 6. Stuff the sponge (not included) between the glass and the window to prevent air and insects from getting into the room. 7. Attach the bracket (not included) with a screw to make sure window is secured. Bracket...
-
Page 25: Installation In A Sliding Sash Window(Optional)
Installation in a Sliding Sash Window(Optional) The window panel cannot be installed in windows less than 20.5" (520mm) high, as you will be unable to shut the exhaust cover. (1) Open the window sash and place the window panel on the window frame. (2) Secure the window panel to the window frame with screws. - Page 26 Installation in a Sliding Sash Window(Optional) 5. Close the window sash securely against the Window panel. 6. Stuff the sponge (not included) between the glass and the window to prevent air and insects from getting into the room. 7. Attach the bracket (not included) with a screw to make sure window is secured. Bracket...
-
Page 27: Installation And Disassembly Of Heat Discharge Pipe
Installation and Disassembly of Heat Discharge Pipe Install heat discharge pipe 1. Rotate joint A and joint B clockwise into the two ends of heat discharge pipe. clockwise clockwise joint A heat discharge pipe joint B+C 2. Insert joint A of heat clasp the side with "TOP"... - Page 28 Installation and Disassembly of Heat Discharge Pipe Note of Installingheat discharge pipe correct correct correct wrong ● The length of the heat discharge pipe is less than 1m. It is recommended to use it with shortest length. When installing,heat discharge pipe should be as flat as possible. Don’t prolong the pipe or connect it with other heat discharge pipe.
- Page 29 Installation and Disassembly of Heat Discharge Pipe should not be over 130cm from floor. would easily cause malfunction.) Disassemble heat discharge pipe 1. Remove joint A: 2. Remove joint B+C from Press the clasp and lift joint A upwards to outdoors.
-
Page 30: Operation Test
Installation and Disassembly of Heat Discharge Pipe 3. Remove the window adapter. Pull out and remove the window adapter by pushing down two “PUSH” markings, and slide and close the exhaust cover in the window panel. "PUSH" "PUSH" Operation Test ●... -
Page 31: Clean And Maintenance
Clean and Maintenance WARNING: ● Before cleaning the air conditioner, please turn off the unit and disconnect power. Otherwise, it may cause electric shock. ● Do not wash air conditioner with water. Otherwise, it may cause electric shock. ● Do not use volatile liquid (such as thinner or gas) to clean the air conditioner. Otherwise, it may damage the appearance of air conditioner. - Page 32 Clean and Maintenance NOTICE dust in the operation environment, you can increase clean frequency. Clean heat discharge pipe Remove the heat discharge pipe from air conditioner, clean and dry it , and then reinstall it. (For the method of installation and removal , please refer to the instruction for "Installation and disassembly of heat discharge pipe").
-
Page 33: Malfunction Analysis
Malfunction Analysis Please check below items before asking for maintenance. If the malfunction still Phenomenon Troubleshooting Solution ● Power failure? ● Wait after power recovery. ● Is plug loose? ● Reinsert the plug. ● Whether the air switch is trip- ●... - Page 34 Malfunction Analysis Phenomenon Troubleshooting Solution ● Whether air outlet or air inlet is ● Eliminate the obstacles. blocked? ● Under heating mode, whether ● The unit will stop blowing indoor temperature ireaches fan after reaching set set temperature? temperature. ● In order to prevent cold air, No fan blowed ●...
- Page 35 Malfunction Analysis Malfunction code Disconnect power, and then turn on the unit Overcurrent protection. again after 10min. If "E5" still exits, please contact professional person to maintain the unit. 1. Pour out the water inside chassis. 2. If "H8" still exits, please contact professional Chassis is full of water.
-
Page 36: Electric Schematic Diagram
IF SERVICE IS REQUIRED: If you have a problem, and the problem persists after you have made the checks mentioned in this manual, contact: TECO Australia’s Service on 1300 660 037 (8:30am - 4pm Mon~Fri AEST) For warranty details please visit www.teco.com.au Service Email: had.service@teco.com.au... - Page 37 Did you know? TECO Australia’s product range also includes: Top Load Clothes Washers Front Load Clothes Washers Auto Sensing Vented Clothes Dryers Refrigerators Chest and Vertical Freezers Bar Fridges Televisions Air Curtains ...
- Page 38 IBH-PV1...
