Thank you for selecting our super quality Air Conditioner. To ensure satisfactory operation
for many years to come, this User's Manual should be read carefully before using your air
conditioner. After reading, store it in a safe place. Please refer to the manual for questions
on use or in the event that any irregularities occur.
Models:
TWW22CFAGJBB
TWW27CFAGJBB
TWW40CFAGJBB
TWW53CFAGJBB
TWW60CFAGJBB

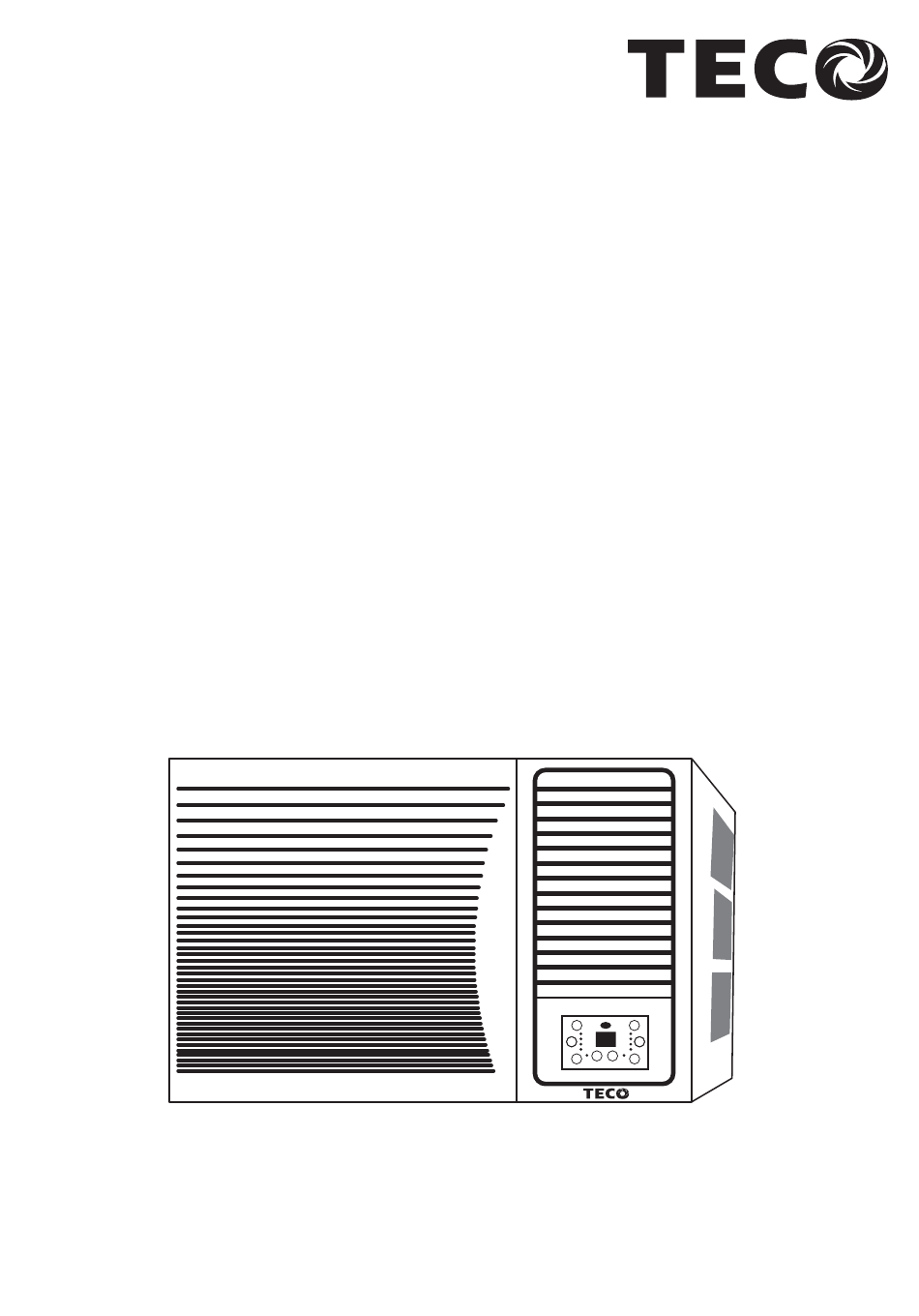

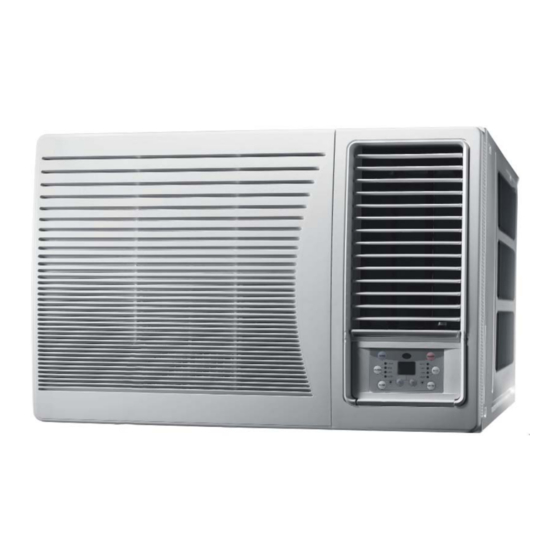

Window - Wall Type
Room Air Conditioner
User's Manual
TWW22HFAGJBB
TWW27HFAGJBB
TWW40HFAGJBB
TWW53HFAGJBB
TWW60HFAGJBB
The Comfortable Choice
Advertisement
Table of Contents
Related Manuals for TECO TWW22CFAGJBB
Summary of Contents for TECO TWW22CFAGJBB
- Page 1 The Comfortable Choice Window - Wall Type Room Air Conditioner User’s Manual Models: TWW22CFAGJBB TWW22HFAGJBB TWW27CFAGJBB TWW27HFAGJBB TWW40CFAGJBB TWW40HFAGJBB TWW53CFAGJBB TWW53HFAGJBB TWW60CFAGJBB TWW60HFAGJBB Thank you for selecting our super quality Air Conditioner. To ensure satisfactory operation for many years to come, this User’s Manual should be read carefully before using your air conditioner.
- Page 2 2. Familiarise yourself with the correct operation of the air conditioners controls and switches. 3. Maintain your air conditioner at regular intervals. Thank you for taking the time to read this booklet and we trust you enjoy the comfort obtained from your TECO room air conditioner.
-
Page 3: Table Of Contents
Index Safety Precautions --- Functions Operating Conditions Installation Part Identifi cation Control Panel Remote Control Operation Tips General Operation --- Care & Maintenance --- Troubleshooting... -
Page 4: Safety Precautions
Do not attempt to repair, take apart, or modify the appliance. It may result in fi re and/or electric shock. Refer servicing to your dealer or Teco Service Centre. Do not put the appliance near heat generating devices (such as stoves, fan heaters, etc.). - Page 5 Safety Precautions or fi re by short-circuiting. Do not use the appliance for special purposes, such as preservation of food, art works etc. This may negatively aff ect the quality of the items stored. If there is a possibility that the temperature around the drainage hose (fi eld supplied) could drop to freezing point.
-
Page 6: Functions
Functions Introduction TECO’s window - wall room air conditioners are engineered to maintain a comfortable temperature. Autumn Spring Each unit comes packed with a host of features that make it Summer Winter Room easy for you to operate, set and forget. -
Page 7: Operating Conditions
Operating Conditions Please operate the air conditioner in the correct conditions as follows: COOL & HEAT mode operation DRY mode operation Outdoor air on temperature should be Outdoor air on temperature should be between 18 C ~ 43 C for cooling and 1 in the range of 18 C and 43 C. -
Page 8: Installation
Installation Teco Australia Pty Ltd does not warrant the equipment supplied by Teco Australia Pty Ltd, will as installed, comply with the Building Code of Australia or any other similar standard or code. The customer/contractor is solely responsible for ensuring that the equipment installed complies with any relevant code or standard. - Page 9 External Clearances Installation A clear area is necessary around the exterior of the cabinet to allow adequate fresh air fl ow through the unit. The minimum clearances required are shown below. Internal Clearances A clear area is necessary around the interior of the cabinet to allow adequate air fl ow through the unit.
-
Page 10: Part Identifi Cation
Part Identifi cation Supply air outlet grille Outside air outlet grille Front intake Cabinet air grille Air fi lter Control panel (behind front grille) * This image is for illustration purposes only. Air Direction Adjustment Airfl ow direction vane Horizontal vane (Airfl ow direction adjustment up and down). -
Page 11: Control Panel
Control Panel Cooling Only Models Cooling & Heating Models POWER BUTTON SIGNAL RECEIVER Operation starts or stops when this button is pressed MODE BUTTON SWING BUTTON Select the operation mode, AUTO, HEAT, Activate the automatic air swing function COOL, FAN, DRY (for reverse cycle model) FAN SPEED BUTTON or AUTO, COOL, FAN, DRY (for cooling only Select the fan speed HIGH, MID, LOW and AUTO in sequence. -
Page 12: Remote Control
Name & Function of Wireless Remote Control Remote Control NOTE: Ensure there are no obstructions between receiver (air conditioner front panel) and remote controller. Do not drop or throw the remote control. Do not let any liquid in the remote control. Do not place the remote control in direct sunlight or any location with excessive heat. - Page 13 Name & Function of Wireless Remote Control Remote Control NOTE: Some functions mentioned below are not available to all models. + Button This button increases the set point temperature. Pressing this button, the temperature can be MODE ON/OFF increased. By holding this button down for two seconds will quickly change the temperature until the button is released.
- Page 14 Name & Function of Wireless Remote Control Remote Control NOTE: Some functions mentioned below are not available to all models. TIMER ON Button When the unit is off , press TIMER ON button, “HOUR ON” will blink and display the symbol. After 5 seconds of blinking, the value can be adjusted by pressing + or - buttons.
- Page 15 General Operation Guide Remote Control NOTE: Some functions mentioned below are not available to all models. 1. When mains power is supplied to the air conditioner, press the remote MODE ON/OFF ON/OFF button and the unit will start or stop. 2.
-
Page 16: Operation Tips
Operation Tips Swing Louvre Operation Hold the SWING button continuously for at least 2 seconds. The louvre will start to swing. Press and hold the SWING button to stop the louvre at the current direction. Press the SWING button again to resume louvre swinging. Switching between centigrade and fahrenheit While the air conditioner is off , press both “MODE”... -
Page 17: General Operation
General Operation Do not set the cooling Keep blinds and curtains To keep the room temperature too low. It could closed. Do not let sunshine temperature uniform, damage your health and directly in the room while the adjust the vertical and waste electricity. - Page 18 Caution: Operation for Safety & Health 1) The plug must be accessible after the appliance is installed. 2) Do not use this appliance in a laundry or location with high moisture or humidity. 3) If the power cord is damaged, it must be replaced by the manufacturer or qualifi ed service agent. Never attempt to repair the power cord.
-
Page 19: Care & Maintenance
Care & Maintenance Care & Maintenance To ensure safety, always turn off the air conditioner and main power supply before performing maintenance on the appliance. 1. Power off before cleaning. Air fi lter The air fi lter behind the intake grille should be Pull out plug washed at least once every two weeks or as only after air... -
Page 20: Troubleshooting
Troubleshooting Please check the following items before asking for repair or contacting service, it may saves you time and money. If problems persist, consult your warranty information for contact details. Fault Solution ▪ Power failure Air conditioner does ▪ Power plug disconnected not operate at all. - Page 21 LBB-PV1...
