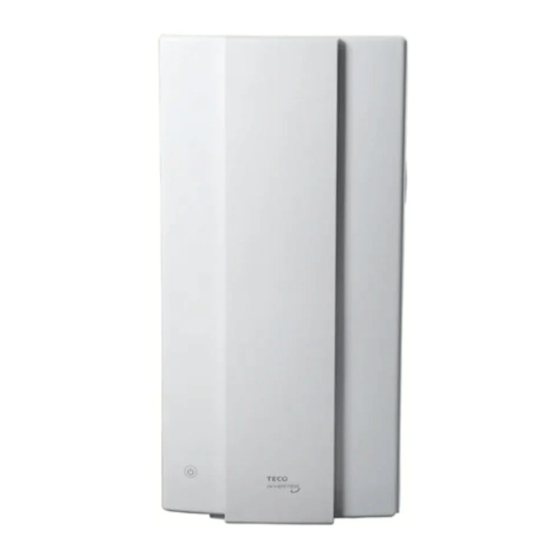

INVERTER VERTICAL SKINNY
WINDOW ROOM AIR CONDITIONER
User Manual
IMPORTANT NOTE:
Thank you for selecting a TECO quality Air Conditioner.
Please read this manual carefully before installing or
operating your new appliance. Make sure to keep this
manual for future reference.
The design and specifications are subject to change
without prior notice due to product improvement.
Cooling Only Model:
TVS26CVUVAH
Cooling & Heating Model:
TVS26HVUVAH
Advertisement
Related Manuals for TECO TVS26CVUVAH
Summary of Contents for TECO TVS26CVUVAH
- Page 1 TVS26CVUVAH Cooling & Heating Model: TVS26HVUVAH IMPORTANT NOTE: Thank you for selecting a TECO quality Air Conditioner. Please read this manual carefully before installing or operating your new appliance. Make sure to keep this manual for future reference. The design and specifications are subject to change...
-
Page 2: Table Of Contents
CONTENTS IMPORTANT SAFETY INSTRUCTIONS NAMES OF PARTS INSTRUCTIONS FOR USE OF DRAIN OUTLET CONTROL SETTING MAINTENANCE TROUBLESHOOTING REPAIRS, SERVICE & WARRANTY... -
Page 3: Important Safety Instructions
The appliance is specifically constructed for domestic use only. The appliance has not been designed or manufactured for professional use. TECO declines all responsibility for damage deriving from improper use of the appliance. Install the equipment correctly to ensure the required space size, including the ... - Page 4 Drain the collected condensate water before transportation and storage. Do not drink. Harmful to health. If the supply cord is damaged, it must be replaced by authorised TECO service personal, service agent or similarly qualified persons in order to avoid a hazard.
-
Page 5: Names Of Parts
NAMES OF PARTS Indoor ④ ⑨ ① ⑤ ② ⑥ ③ ⑦ ⑧ ①Front panel ②Vertical louver blades (auto swing) ③Horizontal louver blades (manually swing) ④Indoor air inlet ⑤Sliding panel ⑥Display screen ⑦Control panel ⑧Power cord ⑨Indoor water outlet - 3 -... - Page 6 Outdoor Window Kit ⑩ ⑬ ⑪ ⑭ ⑮ ⑫ ⑯ ⑩Back panel ⑪Outdoor air inlet ⑫Outdoor water outlet ⑬Outdoor air outlet ⑭Standard mounting bracket ⑮Base plate ⑯Continuous drain outlet PLEASE REFER TO INSTALLATION INSTRUCTIONS BEFORE INSTALLING THE STANDARD FRAME ONTO YOUR WINDOW TO PREVENT THE UNIT FROM FALLING OFF.
-
Page 7: Instructions For Use Of Drain Outlet
INSTRUCTIONS FOR USE OF DRAIN OUTLET Cooling and Heating model Cooling only model TVS26HVUVAH TVS26CVUVAH Continuous drain outlet Rubber water plug Drain hose Cooling only model： When the water full indicator "FL" appears, you can only drain it manually. Open one of the drain ports 9, 12, and 16 in the parts diagram to drain;... - Page 8 Install instruction of continuous drain hose for heating and cooling model： Machine Front Back Drain hose Continuous drain outlet As shown in the figure, when installing the drain hose, please firmly insert the hose to the drain outlet, make sure the drain hose is inclined downward, the inclination angle is more than 1 degree, ensure the drain hose is free of kinks and wrinkles, and there is no foreign matter in it.
-
Page 9: Control Setting
CONTROL SETTING Ⅰ. The operation panel & Remote controller Child lock icon Not applicable Timer icon Celsius icon Digital display Time icon Fan speed icon Dry icon Auto icon Cool icon Heat icon # Swing icon Fan icon Child lock Up/Down key Timer key Power key... - Page 10 Fan speed： ………………1 st speed，1 blade，display shows 1； ………………2 nd speed，2 blades，display shows 2； ………………3 rd speed，3 blades，display shows 3； ………………4 th speed，4 blades，display shows 4； ………………5 th speed，5 blades，display shows 5； ………………6 the speed，6 blades，display shows 6； ………………7 the speed，7 blades，display shows 7； ………………Turbo mode，8 blades，display shows tu；...
- Page 11 Cool Heat # Auto Sleep Signal icon Child lock Time icon Swing Celsius icon Turbo icon FOLLOW Me Auto fan Fan speed speed icon Wind speed Quiet blade Note: # Cooling only model dosen't have the Heat icon. - 9-...
- Page 12 ①. Power: ON & OFF of the air-conditioner ②. Mode：Press this button to switch between auto→ cooling→heating→ dry→ fan modes (the cooling only model don't have heating mode). ③. Up/Down: Press to increase/decrease the temperature when in auto, cooling and dehumidification modes, press to increase/decrease the time when setting timer.
- Page 13 Ⅱ Working mode operation 1. Auto mode Press the mode key to select the automatic mode while the machine is on. At this time, the corresponding indicator on the panel lights up. In this mode, the product will automatically adjust the corresponding operating function according to the current ambient temperature.
- Page 14 3. Dry mode Press the mode key to select the dehumidification mode while the machine is on. The corresponding indicator lights up. Set temperature is same as cooling mode. Wind speed is not adjustable. Press the swing key to turn the swing function on or off. 4.
-
Page 15: Maintenance
Self-cleaning state, the UV sterilization function is activated; after self-cleaning, the UV sterilization function is turned off. MAINTENANCE Cleaning: Turn off the unit and remove the power plug before cleaning and maintenance. 1.Cleaning surface Wash the surface with a soft, damp cloth. Do not use chemical reagents such as benzene, alcohol, or gasoline. - Page 16 ① Place fingers on air inlet grille catch and pull to open, and then slide out the filter net from the interior of the grille. (Note: the inlet grid can only be opened 7 ~ 8 degrees, please do not use too much force to cause damage.) ②...
-
Page 17: Troubleshooting
TROUBLESHOOTING Please check the following items before asking for repair or contacting service, it may save you time and money. If problems persists, refer to your warranty information for contact details. Problem Cause Solution Turn on the power after No power checking the power socket. - Page 18 Check the frame and air Loud The air conditioner is not conditioner to ensure proper noise installed correctly. and correct installation. Wait for 3 minutes until the compress temperature drops and then Overheat protection initiated. or is not turn it on. working Distance is too far.
-
Page 19: Repairs, Service & Warranty
REPAIRS, SERVICE & WARRANTY It is hazardous for anyone altering, repairing, servicing or testing a system containing refrigerants (i.e. charging, discharging or opening up pipework of a refrigeration system that uses hydrocarbon refrigerants). Only an Authorised Service Person can carry out servicing or repairs to this appliance. - Page 20 E&OE HCB-V1 www.teco.com.au...
