TECO TPO29CFAT User Manual

Cooling only
Hide thumbs Also See for TPO29CFAT:

Advertisement

Table of Contents

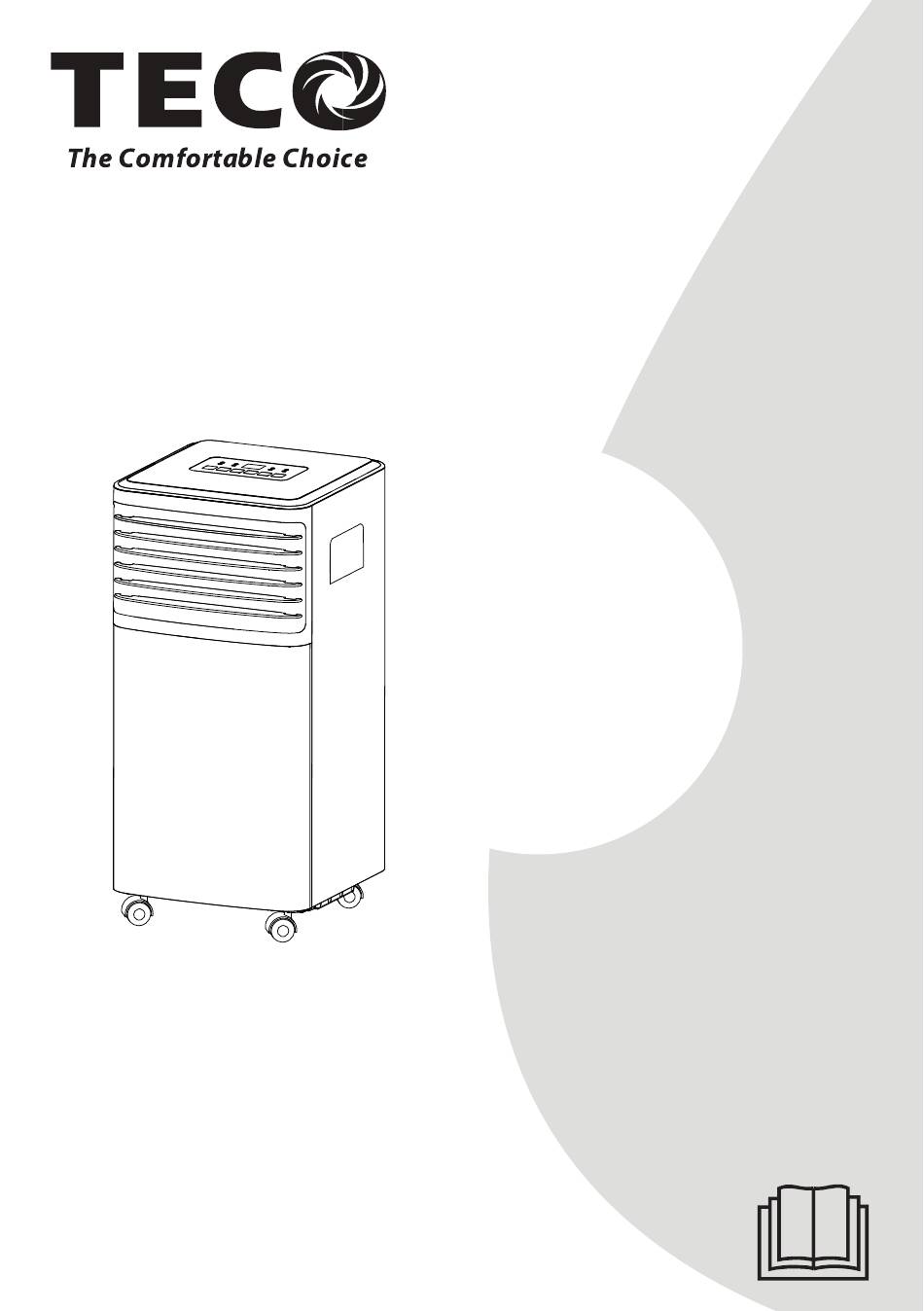

PORTABLE AIR CONDITIONER
User Manual
IMPORTANT NOTE:
Thank you for selecting a TECO quality Air Conditioner. Read
this manual carefully before installing or operating your new air
conditioning unit. Make sure to save this manual for future
reference.
The design and specifications are subject to change
without prior notice for product improvement. Consult with the
sales agency or manufacturer for details.
Cooling Only
Model:
TPO29CFAT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TPO29CFAT and is the answer not in the manual?

Questions and answers

Related Manuals for TECO TPO29CFAT

Summary of Contents for TECO TPO29CFAT

  • Page 1 Cooling Only Model: TPO29CFAT IMPORTANT NOTE: Thank you for selecting a TECO quality Air Conditioner. Read this manual carefully before installing or operating your new air conditioning unit. Make sure to save this manual for future reference. The design and specifications are subject to change without prior notice for product improvement.

  • Page 2: Table Of Contents

    Content Safety Warning ......................1 Part's Name ......................2 Installation Instructions ....................3 Operation Introduction for Control Panel ..............6 Using the Remote Control ..................10 Removing Collected Water..................15 Clean and Maintenance..................17 Troubleshooting .....................18 Repair, Service & Warranty ...................20...

  • Page 3: Safety Warning

    ● Do not modify or alter the characteristics of the appliance in any way. ● Prohibit inserting any objects into the air conditioner. ● If the appliance requires repair, contact the TECO National Service Centre. Repairs carried out by unauthorised personnel may be dangerous and warranty may be voided.

  • Page 4: Part's Name

    Part's Name NOTICE: Please do not discarded all installation accessories.

  • Page 5: Installation Instructions

    Installation Instructions Installation Instructions EXHAUSTING HOT AIR In the Cool Mode the appliance must be placed close to a window or opening so that the warm exhaust air can be ducked outside. First position unit on a flat floor and make sure there's a minimum of 17.7"...
  • Page 6 Installation Instructions WINDOW SLIDER KIT INSTALLATION 1 :Parts name: A) Panel (Optional second slider panel not supplied) B) Panel with one hole C) Panel without hole (Optional panel not supplied) D) Screw to lock window kit in place 2: Assembly: Slide Panel B and C into Panel A and size to widow width.
  • Page 7 Installation Instructions LOCATION Installation Location • The unit should be placed on a firm foundation to minimize noise and vibration. For safe and secure positioning. place the unit on a smooth, level floor strong enough to support the unit. • The unit has casters to aid pl acement, but it should only be rolled on smooth, flat surfaces. Use caution when rolling on carpeted surfaces.

  • Page 8: Operation Introduction For Control Panel

    Operation Introduction for Control Panel CONTROL PANEL 3 4 5...
  • Page 9 Operation Introduction for Control Panel COOL mode Ideal for hot muggy weather when you need to cooling and dehumidify the room. To set this mode correctly: " O " -Press the button a number of times until the "Cool" symbol light appears. "i6."...
  • Page 10 Operation Introduction for Control Panel DRY mode Ideal to reduce room humidity (spring and autumn, damp rooms rainy periods, etc). Before using the dry mode, the appliance should be prepared in the same way as for cool mode, with the air exhaust hose attached to enable the moisture to be discharged outside.
  • Page 11 Operation Introduction for Control Panel Switch between Celsius and Fahrenheit Hold on "!':,,." and "V" button three seconds by the same time, then you can change the unit of temperature. For example: Before change, in cool mode, the screen display like fig. 10. After change, in cool mode, the screen display like fig.

  • Page 12: Using The Remote Control

    Using the Remote Control Remote Control "� ,� Fan speed button <, Swing button �c " Sleep button Increase button Decrease button © On/Off button Mode button � Timer button ° �C/ Unit Switch button NOTE: This serial model have no auto swing function. ✓...
  • Page 13 Using the Remote Control INSERTING OR REPLACING THE BATTERIES • Remove the cover on the rear of the remote control; • Insert two "AAA" 1.5V batteries in the correct position (see instructions inside the battery compartment; NOTE: ✓ If the remote control unit is replaced or disposed of, the batteries must be removed and discarded in accordance with current legislation as they are harmful to the environment.
  • Page 14 Using the Remote Control Manual adjustment only.
  • Page 15 Using the Remote Control SLEEP function This function is useful for the night as it gradually reduces operation of the appliance. To set this function correctly: -Select the cool or heat mode as described above. -Press the " � [ " button. The appliance operates in the previously selected mode.
  • Page 16 Using the Remote Control Programming shut down -Under the running of appliance, please press the button, the screen will display 1-24 hours. -Press several times until the corresponding time is displayed. Wait about 5 seconds, the timer will be active, then "Timer'' symbol is displayed on screen. "...

  • Page 17: Removing Collected Water

    Removing Collected Water WATER DRAINAGE METHOD When there is excess water condensation inside the unit, the appliance stops running �, , "F and shows (FULL TANK as mentioned in SELF-DIAGNOSE). This indicates that the water condensation needs to be drained using the following procedures: Manual Draining Cfig.12) 1 .Unplug the unit from power source.
  • Page 18 Removing Collected Water Middle drainage When unit running in Dry mode, you can choose the way below to drainage. 1 .Unplug the unit from the power source. 2. Remove the drain plug(fig A). While doing this operation some residual water may spill so please have a pan to collect the water.

  • Page 19: Clean And Maintenance

    Clean and Maintenance CLEANING Before cleaning or maintenance, turn the appliance off by pressing the button on the control panel or remote control, wait for a few minutes then unplug from the mains socket. CLEANING THE CABINET You should clean the appliance with a slightly damp cloth then dry with a dry cloth, may not used water to wash appliance.

  • Page 20: Troubleshooting

    Troubleshooting TROUBLESHOOTING PROBLEM CAUSE SOLUTION The appliance • There is no current • Wait does not come on • It is not plugged into the • Plug into the mains mains • Wait 30 minutes, if the • The internal safety device problem persists, contact has tripped your service center...
  • Page 21 Troubleshooting SELF-DIAGNOSIS The appliance has a self diagnosis system to identify a number of malfunctions. Error messages are displayed on the appliance display. IF IS DISPLAYED WHAT SHOULD I DO? The appliance is fitted with a frost protection device to avoid excessive formation of ice.

  • Page 22: Repair, Service & Warranty

    IF SERVICE IS REQUIRED: If you have a problem, and the problem persists after you have made the checks mentioned in this manual, contact: TECO Australia’s Service on 1300 660 037 (8:30am - 4pm Mon~Fri AEST) For warranty details please visit www.teco.com.au Service Email: had.service@teco.com.au...
  • Page 23 Did you know? TECO Australia’s product range also includes:  Top Load Clothes Washers  Front Load Clothes Washers  Auto Sensing Vented Clothes Dryers  Refrigerators  Chest and Vertical Freezers  Bar Fridges  Televisions  Air Curtains ...
  • Page 24 HBJ-PV...
