Thank you for selecting our super quality Air Conditioner. To ensure satisfactory operation for many years to
come, this User's Manual should be read carefully before using your air conditioner. After reading, store it in a
safe place. Please refer to the manual for questions on use or in the event that any irregularities occur.

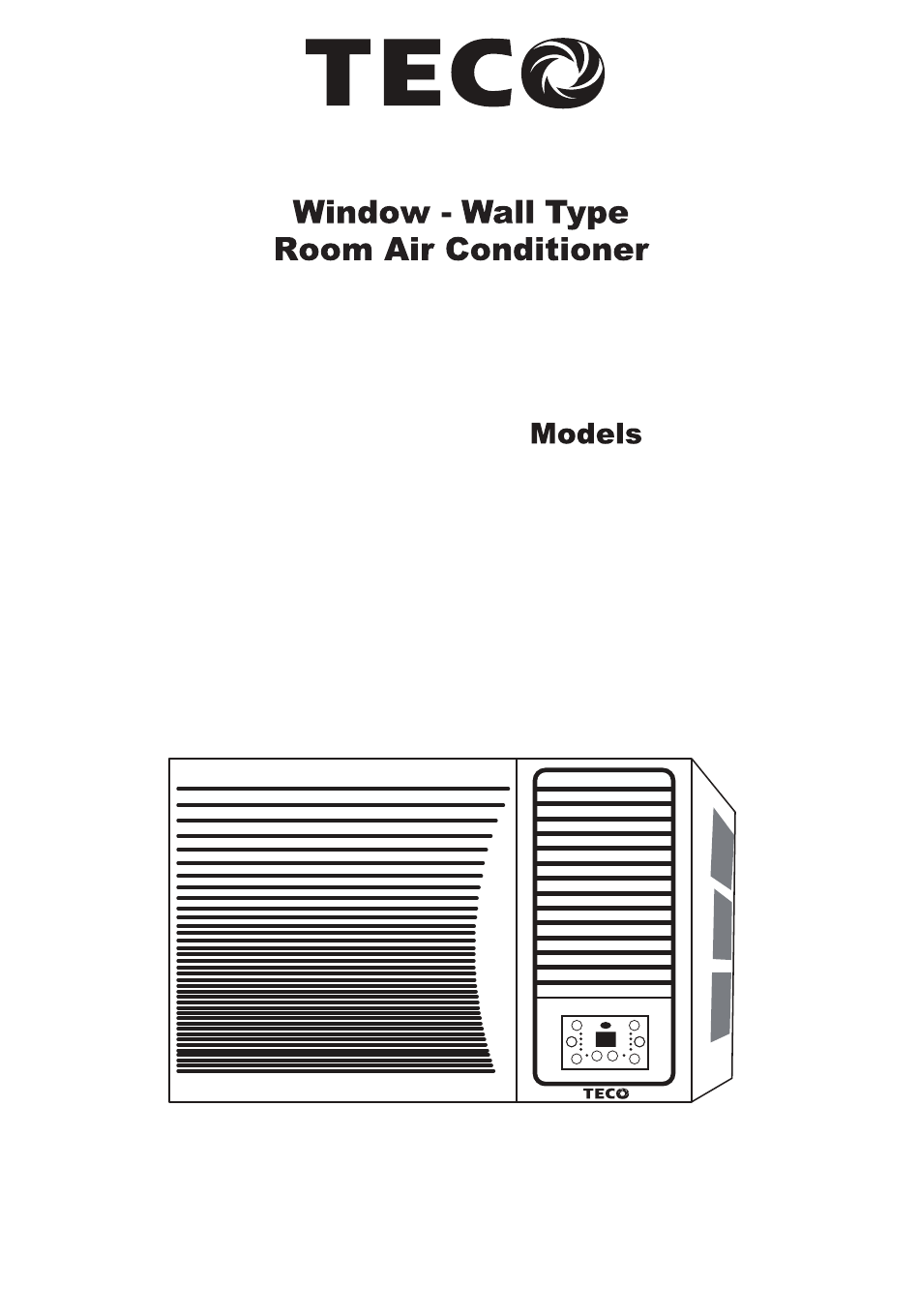

The Comfortable Choice
User's Manual
R32 Refrigerant
TWW16CFDG
TWW22CFWDG
TWW27CFWDG
TWW40CFWDG
TWW53CFWDG
TWW60CFWDG
TWW22HFWDG
TWW27HFWDG
TWW40HFWDG
TWW53HFWDG
TWW60HFWDG
TWW61HFWEG
Advertisement
Related Manuals for TECO TWW61HFWEG
Summary of Contents for TECO TWW61HFWEG
- Page 1 TWW53CFWDG TWW60HFWDG TWW60CFWDG TWW61HFWEG Thank you for selecting our super quality Air Conditioner. To ensure satisfactory operation for many years to come, this User’s Manual should be read carefully before using your air conditioner. After reading, store it in a...
- Page 2 Index Foreword ................1 The Refrigerant ..............1 Specialist's Manual ..............2 Safety Precautions ..............7 Functions ................9 Operating Conditions ............10 Installation ................11 Part Identification ..............14 Control Panel ................ 14 Remote Control ..............15 General Operation ..............19 Care &...
- Page 3 Foreword Congratulations on your purchase of a TECO room air conditioner. To assist you in protecting your investment and maintaining the appliances satisfactory operation, three simple steps are provided for you to follow. 1. Ensure that your air conditioner is installed according to the specifications detailed in this booklet.
- Page 4 Specialist's Manual The following checks shall be applied to installations using flammable refrigerants: – the charge size is in accordance with the room size within which the refrigerant containing parts are installed; – the ventilation machinery and outlets are operating adequately and are not obstructed; –...
- Page 5 Specialist's Manual Presence of fire extinguisher If any hot work is to be conducted on the refrigeration equipment or any associated parts, appropriate fire extinguishing equipment shall be available to hand. Have a dry powder or CO2 fire extinguisher adjacent to the charging area. Ventilated area Ensure that the area is in the open or that it is adequately ventilated before breaking into the system or conducting any hot work.
- Page 6 Specialist's Manual Repair to intrinsically safe components Do not apply any permanent inductive or capacitance loads to the circuit without ensuring that this will not exceed the permissible voltage and current permitted for the equipment in use. Intrinsically safe components are the only types that can be worked on while live in the presence of a flammable atmosphere.
- Page 7 Specialist's Manual The refrigerant charge shall be recovered into the correct recovery cylinders. For appliances containing flammable refrigerants other than A2L refrigerants, the system shall be perged process may need to be repeated several times. Compressed air or oxygen shall not be used for purging refrigerant systems.
- Page 8 Specialist's Manual When the cylinders have been filled correctly and the process completed, make sure that the cylinders and the equipment are removed from site promptly and all isolation valves on the equipment are closed off. Recovered refrigerant shall not be charged into another refrigeration system unless it has been cleaned and checked.
- Page 9 Do not attempt to repair, take apart, or modify the appliance. It may result in fire and/or electric shock. Refer servicing to your dealer or TECO Service Centre. Do not put the appliance near heat generating devices (such as stoves, fan heaters, etc.).
- Page 10 Safety Precau ons Water may leak into the appliance adversely affecting the electric insulation and cause electric shock and/ or fire by short-circuiting. Do not use the appliance for special purposes, such as preservation of food, art works etc. This may negatively affect the quality of the items stored.

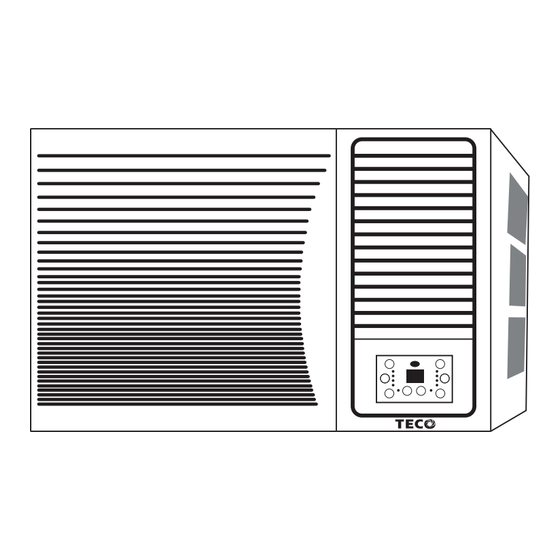

- Page 11 Func ons Introduc on TECO’s window - wall room air condi oners are engineered to maintain a comfortable temperature. Autumn Spring Each unit comes packed with a host of features that make it Summer Winter Room easy for you to operate, set and forget.
- Page 12 Operating Conditions Please operate the air condi oner in the correct condi ons as follows: COOL & HEAT mode opera on DRY mode opera on Outdoor air on temperature should be Outdoor air on temperature should be in between 18 C ~ 43 C for cooling and the range of 18...
- Page 13 Installa on Teco Australia Pty Ltd will not warrant the equipment supplied, if the installa�on does not comply with the Building Code of Australia or any Local Government standard or code. The customer/contractor is solely responsible for ensuring that the equipment installed complies with all relevant building codes or standards.
- Page 14 Installa on External Clearances A clear area is necessary around the exterior of the cabinet to allow adequate fresh air flow through the unit. The minimum clearances required are shown below. Tilt When installing the unit, to clear condensate from the unit, the back edge of the cabinet should be approximately 6mm lower...
- Page 15 Installa on Removal Procedure Steps Procedure 1.Remove panel assembly a. Remove the air-inlet grille Air-inlet panel b. Remove the filter Filter c. Remove screws from either side and middle of front panel d. Push into sides and top of metal casing to releas clips and remove front panel screw 2.
- Page 16 Part Identification For TWW16CFDG Only Cabinet Cabinet Air inlet louver Air inlet louver Front grille Front grille Front intake grille Front intake grille Remote control panel Power cord Air filter Power cord Air filter Control panel (behind the front intake grille) (behind the front intake grille) All images are for Illustration purposes only.
- Page 17 Control Panel Cooling Only Models Cooling & Heating Models POWER BUTTON MODE BUTTON Operation starts or stops when this button is pressed Select the operation mode, AUTO, HEAT, SWING BUTTON COOL, FAN, DRY (for reverse cycle model) or Activate the automatic air swing function AUTO, COOL, FAN, DRY (for cooling only FAN SPEED BUTTON model).
- Page 18 Name & Func on of Wireless Remote Control Remote Control (Not applicable to TWW16CFDG) NOTE: Ensure there are no obstruc ons between receiver (air condi oner front panel) and remote controller. Do not drop or throw the remote control. Do not let any liquid in the remote control. Do not place the remote control in direct sunlight or any loca n with excessive heat.
- Page 19 Name & Func on of Wireless Remote Control Remote Control (Not applicable to TWW16CFDG) Fan button This button is used for setting Fan Speed in the sequence that goes from AUTO, , to then back to Auto. Auto Speed 1 Speed 2 Speed 3 NOTE: There are 3 speeds for the Fan Speed of this model.
- Page 20 Name & Func on of Wireless Remote Control Remote Control (Not applicable to TWW16CFDG) Note: ● Range of time setting is: 0.5~24h ● The interval between two motions can't exceed 5s, otherwise the remote controller will exit setting status. Combined Bu on Func ons Child Lock Func on Press “+”...
- Page 21 Remote Control Changing the remote controller batteries signal sender battery Press the remote controller back cover downward while sliding the cover in the direction of the arrow. Remove the exiting batteries. reinstall Insert two new AAA 1.5V batteries. Ensure the batteries are inserted in the correct direction as in the image to remove the right.
- Page 22 General Operation Do not set the cooling Keep blinds and curtains To keep the room temperature too low. It could closed. Do not let sunshine temperature uniform, damage your health and directly in the room while the adjust the vertical and waste electricity.
- Page 23 General Operation Caution: Operation for Safety & Health 1) The plug must be accessible after the appliance is installed. 2) Do not use this appliance in a laundry or location with high moisture or humidity. 3) If the power cord is damaged, it must be replaced by the manufacturer or qualified service agent.
- Page 24 Care & Maintenance To ensure safety, always turn off the air conditioner and main power supply before performing maintenance on the appliance. 1. Power off before cleaning. Air filter The air filter behind the intake grille should be Pull out plug washed at least once every two weeks or as only after air often as it needs cleaning.
- Page 25 Troubleshooting Please check the following items before asking for repair or contacting service, it may saves you time and money. If problems persist, consult your warranty information for contact details. Fault Solution ▪ Power failure Air conditioner does ▪ Power plug disconnected not operate at all.
- Page 26 If you have a problem, and the problem persists after you have made the checks mentioned in this manual, contact: TECO Australia’s Service on 1300 660 037 (8:30am - 4pm Mon~Fri AEST) For warranty details please visit www.teco.com.au Service Email : had.service@teco.com.au...
- Page 27 Did you know? TECO Australia’s product range also includes: Top Load Clothes Washers Front Load Clothes Washers Twin Tub Clothes Washers Auto Sensing Vented Clothes Dryers Refrigerators Chest and Vertical Freezers Bar Fridges ...
- Page 28 66139908722 HCD-V2...
