STEVAL-STRKT01 system start-up

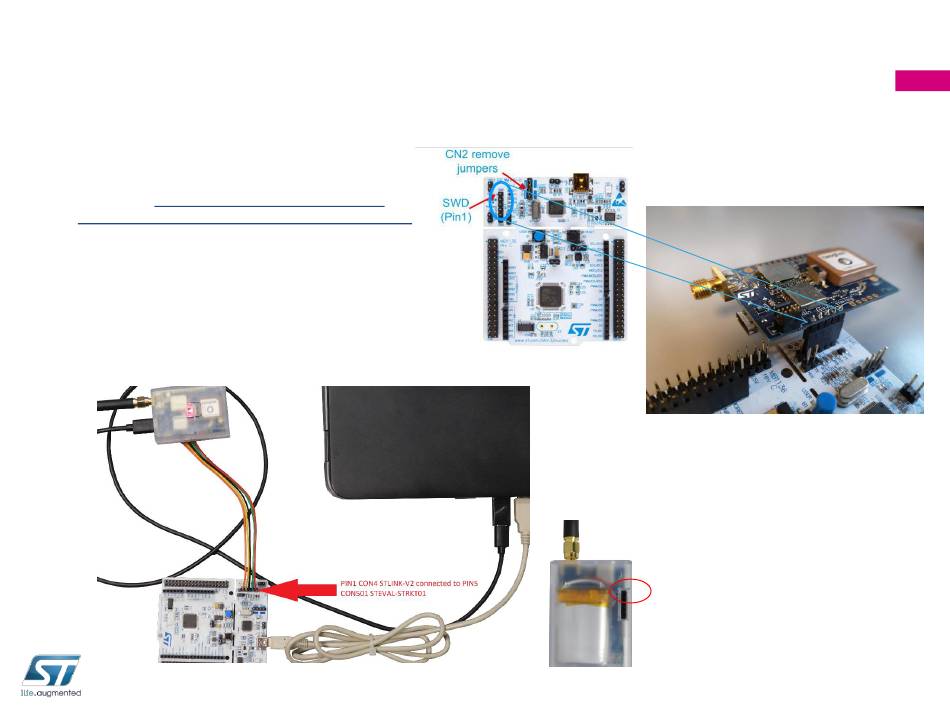

Programming procedure:
•
Use Nucleo board (e.g. NUCLEO-F401RE)
•
Connect CN4(SWD) to CN501 of STEVAL-STRKT01
(by 5 poles cable or by plugging directly on the STlink
connector. (Pin1 CON4 of ST-LINKV2 has to be
connected to Pin5 CON 501 of STEVAL-STRKT01).
•
Connect a USB A-to-TypeC adapter to the PC.
Connect the typeC cable to the adapter.
•
Remove NUCLEO-F401RE CN2 jumpers
•
Connect the NUCLEO-F401RE BOARD to the PC
through a USB A-to-miniB cable.
•
Download the firmware (see next slide for details).
FP-ATR-LORA1 hardware setup
on STEVAL-STRKT01
PIN1
