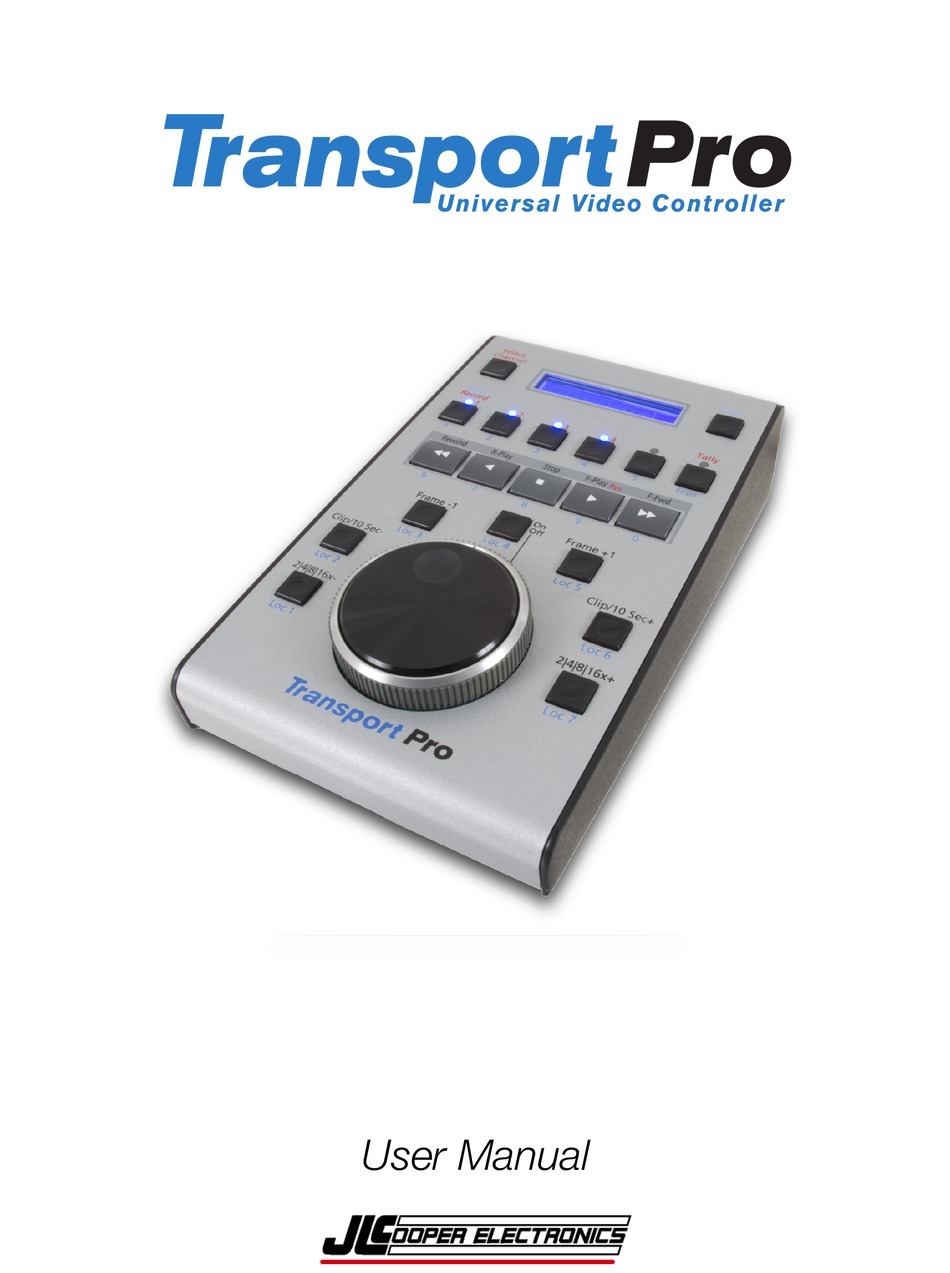

- Page 1 User Manual...
- Page 2 ES-450 are trademarks of JLCooper Electronics. All other brand names are the property of their respective owners. TransportPro RS422 User’s Manual, First Edition (May 7, 2019) Part Number 932157 ©2019 JLCooper Electronics, 142 Arena Street, El Segundo, CA 90245 USA (310) 322-9990 FAX(310) 335-0110 www.jlcooper.com...
-
Page 3: Table Of Contents
TransportPro RS422 User Manual Table of Contents Introduction ......................Features ........................Connecting ......................Using your TransportPro ..................Identifying your recorder .................... Using the TransportPro ....................Manual Timecode Entry ....................One Touch Preset and Recall .................... Storing a Preset Location .................. -
Page 4: Introduction

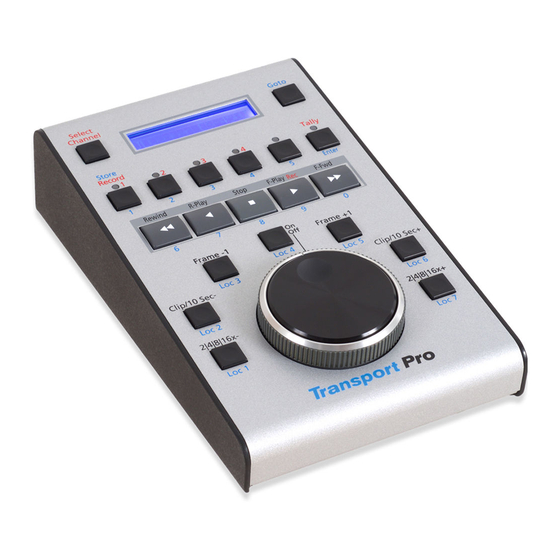

TransportPro RS422 User Manual Introduction The TransportPro is a compact controller for News, Sports, Scoreboard and other slow motion editing operations. It makes the operation of professional video recorders quick and easy. It’s a full-featured 4-machine editor and universal Jog/Shuttle remote for most VTRs and disk based recorders. -
Page 5: Connecting
TransportPro RS422 User Manual Connecting Connecting the TransportPro is straightforward. Connect the large 25 pin D-Sub connector to the rear of the TransportPro. Secure the connector the TransportPro by screwing the lock screws into the connector. Connect each video device or video server to the smaller 9 pin D-Sub connectors. -
Page 6: Using Your Transportpro
TransportPro RS422 User Manual Using your TransportPro Identifying Your Recorder As soon as the TransportPro is powered up, the controller continuously asks the recorder for its Device ID. The TransportPro uses this response to adjust its behavior to specific recorders. -
Page 7: Using The Transportpro
TransportPro RS422 User Manual Using The TransportPro TIMECODE DISPLAY The TransportPro continuously asks the recorder selected for tally for its position. The TransportPro will display the recorders position in the Timecode display on the controller. Nondrop frame timecode is indicated without a... - Page 8 TransportPro RS422 User Manual F-FWD, REWIND Pressing the F-FWD/Rewind buttons causes the TransportPro to send the Fast Forward and Rewind commands respectively. STOP Pressing the STOP button causes the TransportPro to stop the playback of video. If the recorder is in Record mode, the TransportPro commands the recorder to stop recording.
- Page 9 TransportPro RS422 User Manual SHUTTLE RING Turning the outer Shuttle ring causes the recorder to play video quickly (faster than play speed). Turning the Shuttle ring clockwise from the center detent position causes the video to move forward. Conversely, turning the Shuttle ring counterclockwise from the center detent position causes the video to move backwards.
-
Page 10: Manual Timecode Entry
TransportPro RS422 User Manual Manual Timecode Entry The Manual Timecode Entry method allows you to manually enter a timecode and have the TransportPro command the recorder(s) to go to that location. To use the Manual Timecode Entry method, simply perform the following: 1. -
Page 11: Using With Gangway4
TransportPro RS422 User Manual Using with GangWay4 The TransportPro is able to remotely control the GangWay4. To use the GangWay4 with the TransportPro, simply connect the TransportPro to the rear panel controller port of the GangWay4 as shown below. Connecting the GangWay4 to the TransportPro and 4 video... -
Page 12: Controlling The Gangway
TransportPro RS422 User Manual Controlling the GangWay Select Channel To control the GangWay4, simply press the Select Channel button. The display will show Select Channel Select Channel and indicate the selected decks by illuminating buttons 1 -4. To toggle the selection of a deck, press a numbered button. -
Page 13: Technical Information
TransportPro RS422 User Manual Technical Information Pinout Deck Control The pinout of the 9 pin D Subminiature connectors is shown in the following table. TransportPro Direction Recorder Ground Ground ← Receive A (-) Transmit A (-) Transmit B (+) →... -
Page 14: Gpi Inputs And Outputs
TransportPro RS422 User Manual GPI Inputs and Outputs The table below details the pinout of the GPI connector on the rear panel of the TransportPro. Transport Switch Fast Forward Stop Rewind Ground Play R-Play Shift Pinout of 9 Pin D-Subminiature Connector... -
Page 15: Command Reference
TransportPro RS422 User Manual Command Reference The table below lists the various command messages that the TransportPro sends to the recorder. The specific messages may vary based on the actual recorder detected. Function Command 21 13 00 STOP 20 01... -
Page 16: Replacement Parts
TransportPro RS422 User Manual Replacement Parts If replacement parts are needed, you can order them directly from JLCooper Electronics. You can contact us at the following email address: service@jlcooper.com You can also contact us at the following phone number: +1-310-322-9990 Power Supply The TransportPro uses a power supply that is rated at 9 volts DC at 500mA. -
Page 17: Jlcooper Electronics Limited Warranty
TransportPro RS422 User Manual JLCooper Electronics Limited Warranty JLCooper Electronics ("JLCooper") warrants this product to be free of defects in materials or workmanship for a period of 12 months from the date of purchase. This warranty is non-transferable and the benefits apply only to the original owner. Proof of purchase in the form of an itemized sales receipt is required for warranty coverage.
