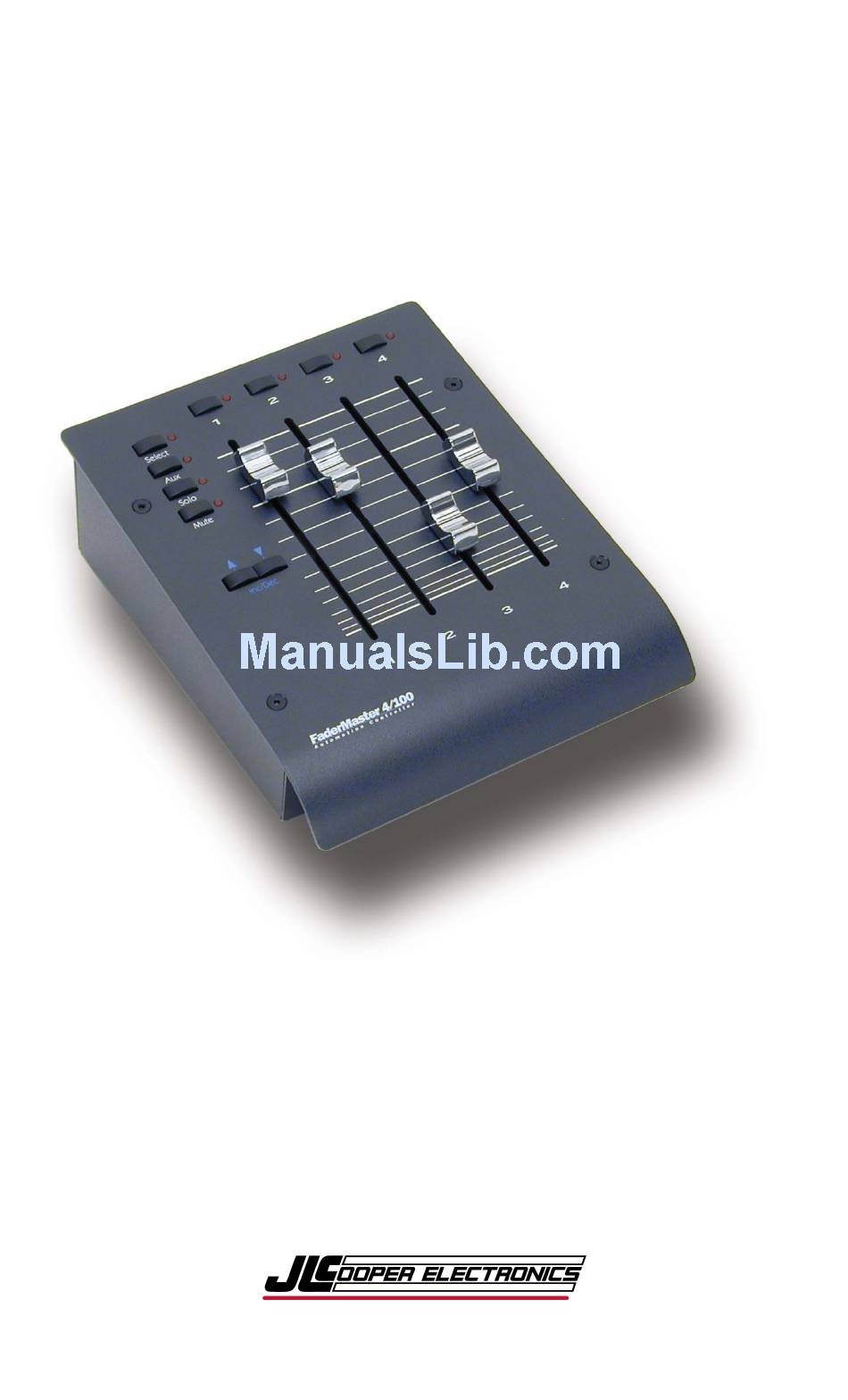

- Page 1 FaderMaster 4/100 RS-232 Desktop Automation Controller Users Manual First Edition...
- Page 2 +1 310 322 9990 www.jlcooper.com All rights reserved worldwide. FaderMaster 4/100, FaderMaster Professional, FaderMaster Pro, FaderMaster, MCS-3800, MCS-3400, MCS-3000, MCS-3000x and MCS-3000 Series are the property of JLCooper Electronics. All other product names are the property of their respective owners.
-
Page 3: Table Of Contents
Table of Contents Welcome ..................5 Introduction..................6 Features..................6 Interface ..................6 Controls..................7 System Requirements ..............9 Installation ..................9 Unpacking.................. 9 Physical Setup................9 Hookup..................9 Configuration ................10 Operation..................11 Faders..................11 Function Select ................ 12 Technical Information.............. -
Page 5: Welcome
Thank you for purchasing the FaderMaster 4/100. Continuing in the tradition of JLCooper’s FaderMaster Professional, the FaderMaster 4/100 retains the feel and control of high quality; 100mm long throw faders and adds touch sensitive, motorized automation. The FaderMaster 4/100 delivers this in a compact, durable desktop package. -
Page 6: Introduction
Introduction The FaderMaster 4/100 is a 4-channel automation controller. It can control computer-based applications such as audio editing, music production, video editing, animation and scientific visualization. Features • Controls audio, video and animation applications • Four 100mm touch sensitive, motorized faders •... -
Page 7: Controls
Controls Figure 1 – Control Location... - Page 8 To the left side are four buttons, which select the functionality of the buttons above the faders. 4. Inc / Dec Buttons Changes the fader bank. The FaderMaster 4/100 internally keeps track of 8 fader channels. However, since the FaderMaster 4/100 only has 4 physical faders, the INC/DEC buttons allow the user to select the four channels that the unit controls at any given time.
-
Page 9: System Requirements
• Connect the power supply to a proper power outlet. • Connect the FaderMaster 4/100 to your system as outlined below. Hookup The FaderMaster 4/100 RS-232 connects to a RS-232 port in your computer. It can connect to a computer such as a Mac or PC. -
Page 10: Configuration
Configuration Macintosh To install your FaderMaster 4/100 RS-232 on your Mac, you will need a USB to RS-232 adapter. Windows To install your FaderMaster 4/100 RS-232 on your PC, you only need to plug your unit into a RS-232 port on your PC. You may... -
Page 11: Operation
4) is active. When the INC button is pressed, Bank 2 (faders 5-8) is active. Bank 1 can be selected by pressing the DEC button. The FaderMaster 4/100 internally keeps track of all 8 faders. For example, if the INC button is pressed, the FaderMaster 4/100 will remember the settings of Faders 1-4. -
Page 12: Function Select
Function Select The Fader buttons can produce various actions in your application. Typically, the Fader buttons can be set to perform a SELECT, SOLO, MUTE or any other command that your software package might use. The SELECT function normally performs a track select or track arm. -
Page 13: Technical Information
Technical Information Communication Communications with the RS-232 unit follows the MIDI specification. Faders When a fader is moved, the FaderMaster 4/100 sends the following message: Bnh 07h 0xxxxxxxx 27h 0y000000 0 to 7, corresponding to faders 1 thru 8 xxxxxxx Most significant 7 bits of fader position Least significant bit of fader position. - Page 14 Touch When a fader knob is touched or released, the FaderMaster 4/100 sends the following message: Bnh 4Ah 0xxxxxxxx 0 to 7, corresponding to faders 1 thru 8...
-
Page 15: Care And Service
Care and Service While the FaderMaster 4/100 was designed to deliver years of trouble free use, there are some things to keep in mind while using this product: •... -
Page 16: Troubleshooting
Troubleshooting The FaderMaster 4/100 is a rather straightforward device that does not require any programming to setup. The unit works right out of the box. Try these steps before calling a Customer Service Rep. None of the Function Select Check power supply LED illuminate. -
Page 17: Specifications
Specifications Electrical: Operating voltage 100 – 240 Volts AC, 50 – 60 Hz, 0.45 Amps maximum Signal Interface RS-232 2 meter attached cable A type male connector 2.1mm coaxial power connector Environmental: Operating Temperature +10°C to +40°C Storage Temperature +0°C to +50°C Operating Humidity 20% to 80% (noncondensing) Storage Humidity... -
Page 18: Jlcooper Electronics Limited Factory Warranty
JLCooper Electronics Limited Factory Warranty JLCooper Electronics ("JLCooper") warrants this product to be free of defects in materials or workmanship for a period of 12 months from the date of purchase. This warranty is non-transferable and the benefits apply to the original owner. Proof of purchase in the form of an itemized sales receipt is required for warranty coverage.
