- Page 1 ECLIPSE M i d n i g h t F i n i s h C o l o r G r a d i n g C o n t r o l S u r f a c e U s e r s M a n u a l...
- Page 3 EclipseCX Midnight Finish and EclipseCX are trademarks of JLCooper Electronics. All other brand names are the property of their respective owners. Eclipse CX User’s Manual, First Edition Part Number 932113 2009 JLCooper Electronics, 142 Arena Street, El Segundo, CA 90245 USA (310) 322-9990 (310) 335-0110 www.jlcooper.com...
-
Page 5: Table Of Contents
Table of Contents Introduction................... 6 Installation ..................7 Unpacking ................... 7 Setup.................... 7 Connecting the Eclipse CX ............7 Configuring the Eclipse CX ............8 Configuring the Host Application..........9 Using the Eclipse CX ..............10 Technical Reference..............11 Troubleshooting ................ 11 Care and Service............... -
Page 6: Introduction

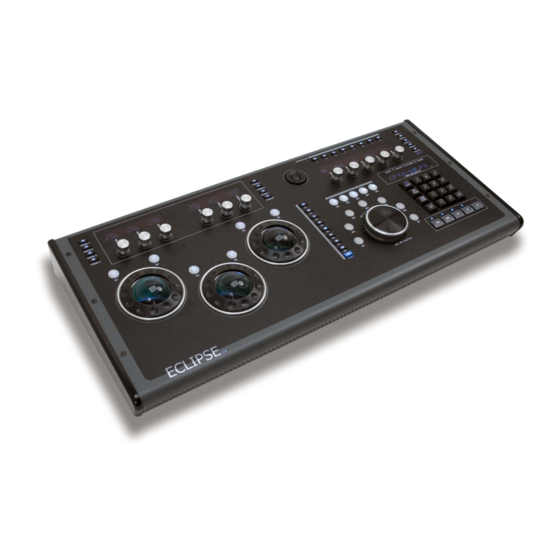

Introduction The EclipseCX Midnight is a tactile control surface intended for color grading applications such as Apple Color. The EclipseCX Midnight is identical to the EclipseCX with the following enhancements: • Darker unit finish with black sides, • White LED and VFD displays and, •... -
Page 7: Installation
Installation Unpacking When you receive your Eclipse CX Midnight, you should receive the following items: • EclipseCX Midnight • This Users Manual • Power Supply • Power Cord Please take a moment to register your product at: http://www.jlcooper.com This will allow us to notify you of important updates and changes to software or features. -
Page 8: Configuring The Eclipse Cx
Configuring the Eclipse CX Before using the Eclipse CX, it must be configured properly. To set initialize the Eclipse CX to factory defaults, perform the following steps: 1. Holding the Up and Down buttons, 2. switch the Power switch on, 3. -
Page 9: Configuring The Host Application
5. The Port number will now appear as a five-digit number. If you do not wish to change it, press ENTER. If you do wish to change it, it must be entered as a five-digit number. For instance, if you wish for port #80, you must enter 00080. If a mistake is made, press the CLEAR button once. -
Page 10: Using The Eclipse Cx
Using the Eclipse CX Refer to the user documentation of your host application for details on how to use the Eclipse CX with your application. -
Page 11: Technical Reference
(JLCooper part number 561024-3). If you need a power supply specific to your location, please contact your local distributor or JLCooper Electronics. Warning: using a power supply other than, the unit specified could result in damage to the Eclipse CX and/or other equipment, which is not covered by the JLCooper Factory Warranty. - Page 12 In addition, the JLCooper website (www.jlcooper.com) will contain current information on drivers, applications and troubleshooting. Below are listed some possible issues and solutions. Issue Can’t connect to Eclipse CX with the host software through an Ethernet hub or switch. Cause Eclipse CX not properly connected to ethernet hub or switch.
- Page 13 IP Address 192.168.254.nnn Subnet Mask 255.255.255.0 nnn is anything except 101 Note: You can verify that the computer can communicate with the Eclipse CX by pinging the Eclipse CX. In Windows, click Start | Run… and type: . If everything is configured ping 192.168.254.101 correctly, the Eclipse CX will reply.
-
Page 14: Care And Service
Clean with a soft, damp cloth. Do not allow liquids, dust or other foreign matter to get inside the unit. There are no user-serviceable parts in the Eclipse CX. Please refer to the JLCooper Electronics Limited Factory Warranty on the following page for detailed warranty and service information. - Page 15 JLCooper Electronics Limited Factory Warranty JLCooper Electronics ("JLCooper") warrants this product to be free of defects in materials or workmanship for a period of 12 months from the date of purchase. This warranty is non-transferable and the benefits apply only to the original owner. Proof of purchase in the form of an itemized sales receipt is required for warranty coverage.
