Summary of Contents for JLCooper Electronics CS-32 MiniDESK

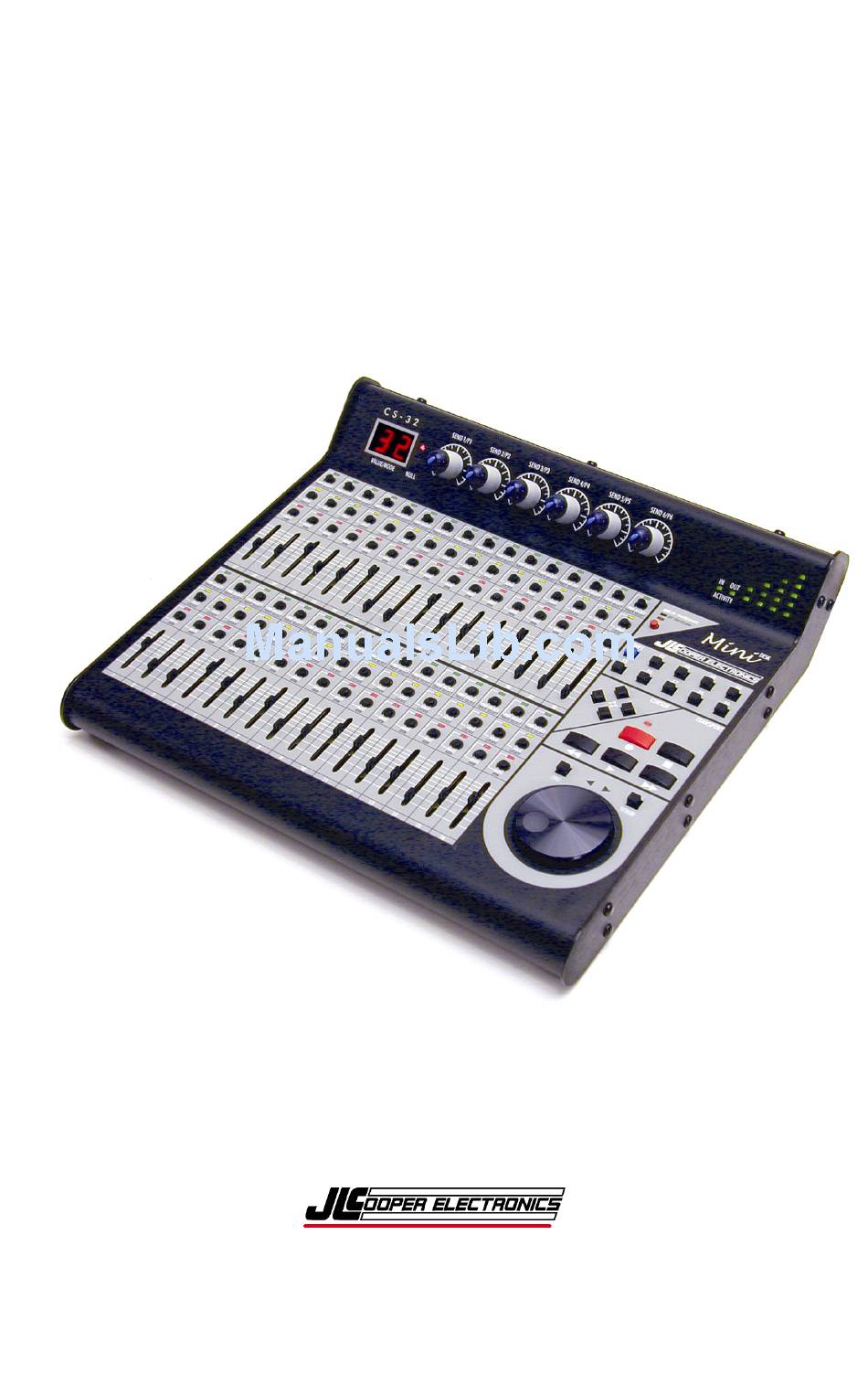

- Page 1 D E S K CS-32 Mini 3 2 C h a n n e l C o n t r o l S u r f a c e U s e r s M a n u a l...
- Page 2 , CS-10² and CS-10 are trademarks of JLCooper Electronics. All other brand names are the property of their respective owners. DESK CS-32 Mini User’s Manual, First Edition Part Number 932092 2003 JLCooper Electronics, 142 Arena Street, El Segundo, CA 90245 USA (310) 322-9990 (310) 335-0110 www.jlcooper.com...
-
Page 3: Table Of Contents
Compatibility------------------------------------------------------------ 5 Unpacking and Setup -------------------------------------------------- 6 Installation and Use ---------------------------------------------------- 7 Connecting the CS-32 MiniDESK ---------------------------------- 7 Using as a Generic MIDI Controller------------------------------- 9 Using as a Pro Tools Controller ------------------------------------ 9 Using as a Digital Performer 3.1 Controller--------------------- 12... -
Page 4: Introduction
The CS-32 MiniDESK is directly supported by: • Digidesign Pro Tools HD, TDM, LE & Free • Steinberg Cubase and Nuendo 1.6 • MOTU Digital Performer 3.1 The CS-32 MiniDESK is available in 2 different versions to suit your needs and application: • USB • MIDI... -
Page 5: Compatibility
Table 1: CS-32 MiniDESK Compatibility Note: The CS-32 MiniDESK USB must be plugged into a self-powered port not a bus-powered port. This can be a USB port on the computer or laptop or a USB port on a powered hub. -
Page 6: Unpacking And Setup
Unpacking and Setup When you receive your CS-32 MiniDESK, you should receive the following items: USB version • CS-32 MiniDESK • This Users Manual • Driver CD-ROM • 4 adhesive rubber feet • Warranty Card MIDI version • CS-32 MiniDESK •... -
Page 7: Installation And Use
Installation and Use Connecting the CS-32 MiniDESK MIDI The MIDI version of the CS-32 MiniDESK can connect to any computer or device that has a standard MIDI port. Configuring the CS-32 MiniDESK MIDI for OMS Applications To use the CS-32 MiniDESK MIDI under MacOS9 with OMS applications, you will need to create a device in OMS. - Page 8 The USB version of the CS-32 MiniDESK can connect to any computer running Windows, MacOS9 or MacOSX with a USB port. Note: The CS-32 MiniDESK must be plugged into a self-powered hub or the computer directly to work properly. A bus-powered hub does not supply enough current.
-
Page 9: Using As A Generic Midi Controller
The messages that the CS-32 MiniDESK sends and receives are detailed in the Technical Reference section. Using as a Pro Tools Controller The CS-32 MiniDESK is supported by all versions of Pro Tools including: • Pro Tools Free • Pro Tools LE •... - Page 10 Configuring Pro Tools to use CS-32 MiniDESK MIDI 1. In the menu, select Setups | Peripherals… 2. Select the MIDI Controllers tab. 3. Set Type to CS-10. 4. Set Receive From to CS- 5. Set Send To to CS-32*. 6. Set #CH’s to 32.
- Page 11 Configuring Pro Tools to use CS-32 MiniDESK USB 1. In the menu, select Setups | Peripherals… 2. Select the MIDI Controllers tab. 3. Set Type to CS-10. 4. Set Receive From to Control Surface Driver. 5. Set Send To to Control Surface Driver.
-
Page 12: Using As A Digital Performer 3.1 Controller
MIDI Control Surfaces Guide in the Pro Tools Help Menu. Note: When the Scrub or Shuttle mode is selected, Pro Tools hides and disables the mouse. This is not due to the CS-32 MiniDESK, rather it is a function of Pro Tools. - Page 13 Using the CS-32 MiniDESK in Digital Performer 3.1 Value/Mode Display Displays the current mode. The default mode is Pan/Send, during which the encoders will control the selected channel’s Pan and Sends. The display will read “PA” when the CS-32 is in this mode.
- Page 14 Defaults to toggling Record for each channel. Arm LEDs display the status for each channel. During mixdown, the function of the Arm buttons can be changed to toggling between automation off and some automation mode. The particular automation mode that the Arm buttons toggle is set using the Function Keys.
-
Page 15: Technical Reference
If you must use an extension cable, please keep the distance to a minimum. Footswitch The CS-32 MiniDESK has a footswitch jack at the end of the cable attached to the unit. Any normally open switch contact with a ¼-inch mono plug will work. -
Page 16: Commands
Power The MIDI version of the CS-32 MiniDESK requires a 9 volt DC supply capable of delivering at least 200 milliamps. The MIDI version of the CS-32 MiniDESK comes with a power supply appropriate for the country in which the unit was sold. If you need a power supply specific to your location, please contact your local distributor or JLCooper Electronics. - Page 17 BD 40 value Solo 1 BD 5F value Solo 32 BD 00 value Mute 1 BD 1F value Mute 32 BF 43 value Knob P1 BF 44 value Knob P2 BF 45 value Knob P3 BF 40 value Knob P4 BF 41 value Knob P5 BF 42 value...
- Page 18 value= Pressed Released Table 4: Button Values value= Illuminated Dark Table 5: LED Values value= Full Down Full Up Table 6: Fader Values value= Fast CW Slow CW Slow CCW Fast CCW Table 7: Wheel Values...
-
Page 19: Troubleshooting
Troubleshooting If for some reason the CS-32 MiniDESK does not give you the expected results, take a moment to do some investigating. The most important concept is that you have your CS-32 MiniDESK connected properly as outlined in Installation and Use. Take a moment to double check your setup. -
Page 20: Warranty
JLCooper Electronics Limited Factory Warranty JLCooper Electronics ("JLCooper") warrants this product to be free of defects in materials or workmanship for a period of 12 months from the date of purchase. This warranty is non-transferable and the benefits apply only to the original owner. Proof of purchase in the form of an itemized sales receipt is required for warranty coverage.
