E Instruments AQ Expert Instruction & Operation Manual page 9

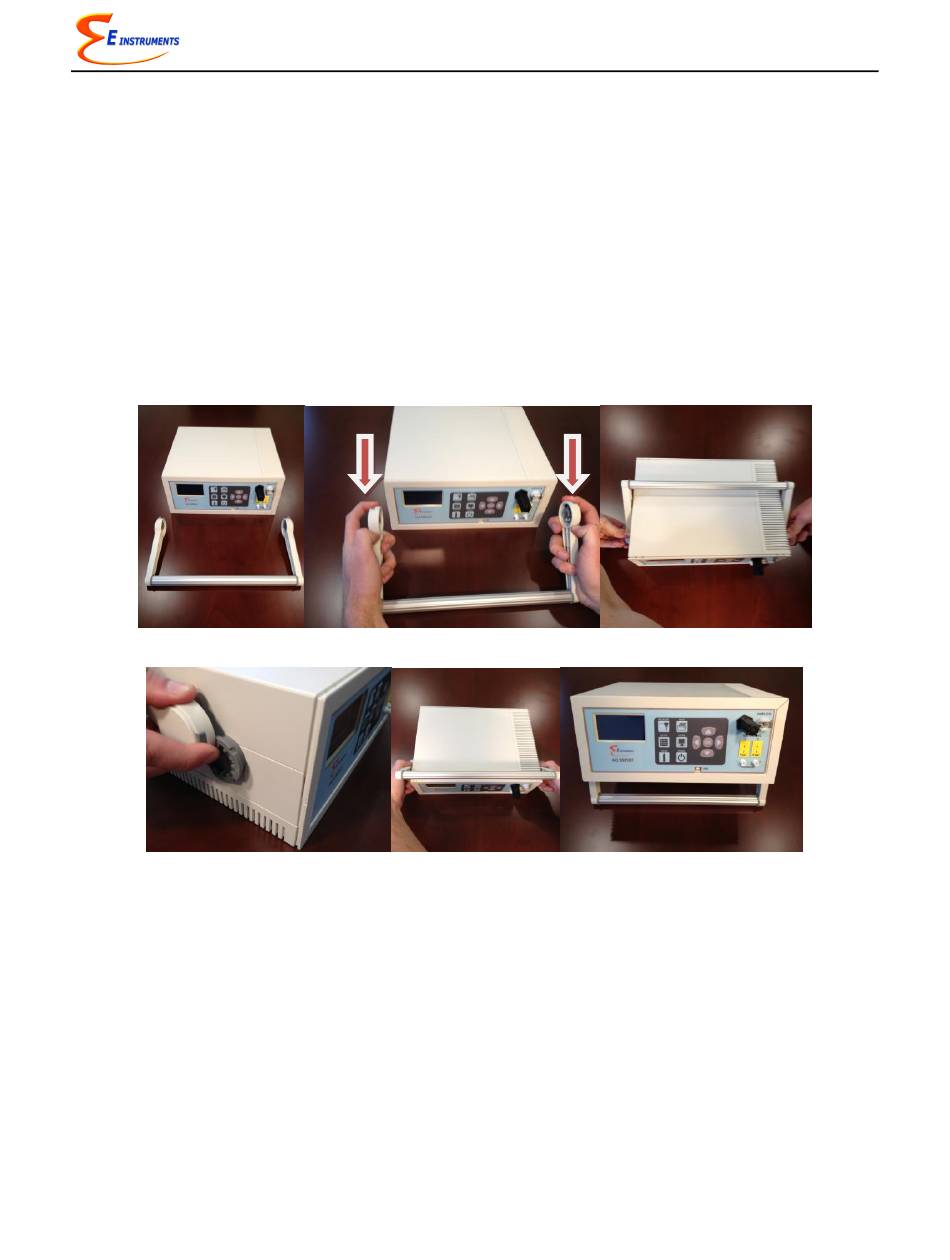

B. INSTALLING/REMOVAL OF SWIVEL HANDLE INSTRUCTIONS
1. Depress BOTH of the Grey Push-Release buttons on the Left & Right circular
ends of the handle (Photo B)
2. With the handle angled AWAY from the front face of the instrument and with the
buttons depressed, position the circular ends OVER the Gray circular holders ON
the side of the instrument until it falls into place (Photos C & D)
3. Depress the Grey Push-Release buttons and rotate the Handle down below the
Front Face (Photo E) of the instrument until it locks into place under the
instrument holding it upright in place. (Photo F)
4. To Remove the handle, repeat steps 1-3 in reverse
PHOTO A
PHOTO D
C. REPACKING UNIT IN OPTIONAL VINYL CARRYING CASE
1. With the AQ Expert powered OFF, turn the instrument on its side with the
FRONT FACE of the unit to the LEFT. See photo A below.
2. Place the carrying case on a supported surface (desk, floor, etc) with the Front
Logo facing the user.
3. With the AQ Expert powered OFF, turn the instrument on its side with the
FRONT FACE of the unit to the LEFT. See photo A below.
4. Carefully place the AQ Expert in the Case, taking SPECIAL PRECAUTION to
NOT damage the External Temp, RH, Pressure sensor. See Photo B below
AQ EXPERT Instruction & Operations Manual
PHOTO B
PHOTO E
Version 1.13
PHOTO C
PHOTO F
Page 9 of 63
