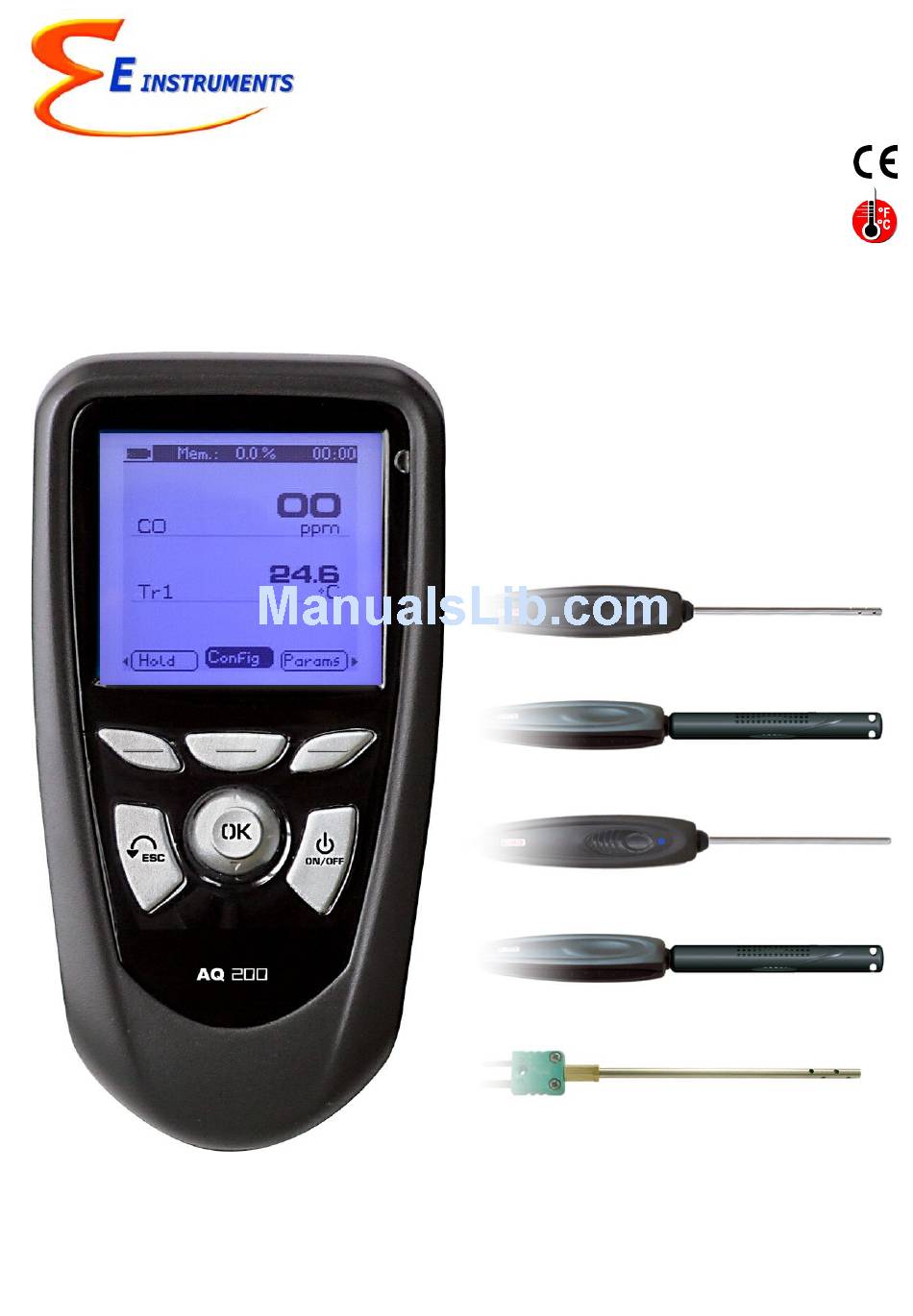

- Page 1 AQ 200 AQ 200 Air Quality...
- Page 2 Table of contents I – Technical specifications.....................4 Technical features..........................4 Specifications............................4 II – Introduction........................5 Description..............................5 Connections..............................6 III – Browsing........................7 IV – Menus..........................8 Probe menu...............................8 Using wire probes and modules......................8 Use wireless probes..........................8 Functions..............................8 Hold - Min/Max............................8 Configuration..............................9 Thermocouple type............................9 Display..................................9 Units..................................9 Delta T................................9 Alarms................................9 Recording...............................9...
-
Page 3: I – Technical Specifications
I – Technical specifications Technical features Display........Graphic display 128x128 pixels Sensing elements Dim. 50 x 54 mm, blue blacklit, Display of 6 measurements (including 4 simultaneously) Air quality probe : NDIR infrared sensor (Non dispersive- infrared) Housing......IP54, ABS shock-proof CO : Electrochemical sensor Keypad........Metal-coated, 5 keys, 1 joystick Temperature : Pt100 class A Conformity......Electromagnetical compatibility... -
Page 4: Ii – Introduction
II – Introduction Description... -
Page 5: Connections
II – Introduction Connections Interchangeable measurement modules Interchangeable modules with Smart-plus system are automatically recognized when connected to the instrument. 1. Current / voltage module 2. Thermocouple module It allows thermocouple temperature measurement on Tc1, It allows current or voltage measurements on V/A1 or VA/2 Tc2, Tc3 and Tc4 channels with type K, J or T with wire channels with current/voltage input cables or ammeter clamps. -
Page 6: Iii – Browsing
III – Browsing Power-up Enter key code with directional pad. (if the locking is activated) e Homepage display Select a sub menu with access keys Probe Params Infos or with arrow keys Probe connection Probes display ... -
Page 7: Iv – Menus
IV – Menus Probe menu 1. Using wire probes and modules Probe display Wire probes and modules with Smart-plus system are automatically recognized from first connection. The ''Probe'' menu only appears when probes or module are connected. This menu allows to view probe information plugged to C2, Module, C1 or wireless connections. -
Page 8: Configuration
IV – Menus Configuration If you use thermocouple probes, you must enter type into the Configuration sub-function. Configuration sub-function allows to: • Select thermocouple Click on OK or to enter into sub function : a list of thermocouple available ( K, J or T type) appears. Select type with ... - Page 9 IV – Menus 1.2 Automatic dataset Auto dataset An automatic dataset is composed of measuring points with interval of time. a. Click on OK or to enter sub function. b. Select Auto. with and . Confirm wih OK. c.
-
Page 10: Downloading Data
IV – Menus Parameters • Language Click on OK or to enter and a list of languages available appears. Select language with arrow keys and and Confirm wih OK. • Date / time Click on OK or to enter into sub function. Enter the day with and then move to the next digit with . Repeat this operation for the month, year, hour and minute. -
Page 11: V – General Information
In regards of Quality insurance norms, we recommend that the instruments are checked once a year. Warranty KIMO Instruments have 1-year guarantee for any manufacturing defect (return to our After-Sales Service required for appraisal). E Instruments Group LLC Distributed by: 172 Middletown Blvd - Suite B201 Temperature &...
