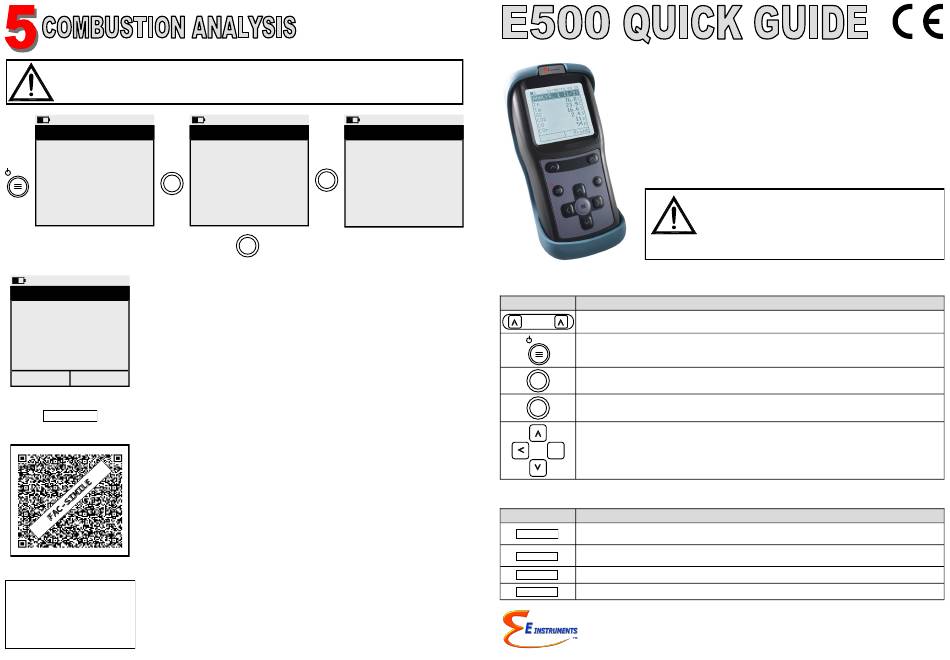

E Instruments E500 Quick Manual

Before proceeding with the combustion analysis remember to set the proper fuel.
15/06/18 10:00
MENU
Measurements
► Configuration
Diagnostic
Info. Service
OK
Once configured the analysis menu, push repeatedly
with the combustion analysis.
15/06/18 10:00
ANALYSIS [1/5]
O2 4.2 %
CO 23 ppm
CO2 2.9 %
Tf 190.1 C
Ta 15.4 C
Es 91.4 %
Print
Print
SCAN THE QR CODE
USING THE
E INSTRUMENTS APP
"E-INSTRUMENTS QR
CODE APP", TO
DOWNLOAD THE DATA.
15/06/18 10:00
CONFIGURATION
► Analysis ► Fuel
Instrument Condensation
Print O2 Reference
Language OK Measure units
Restore Autozero
Air Temp.
ESC to go back to the analysis screen and proceed
15/06/18 10:00
ANALYSIS
KEYBOARD FUNCTIONS
KEYS
ESC
OK
>
CONTEXT KEYS
CONTEXT KEY FUNCTION
Save
Print
Keep
Repeat
FEATURES
 Combustion, Flue gas analysis
 Calculation of stack heat loss and efficiency
CO environment measurement

 Measuring differential pressure
 Draft measurement
 Pressure measurement in the gas supply pipe
The magnets in the back of the instrument can damage
credit cards, hard drives, mechanical watches,
pacemakers, defibrillators and other devices proven
sensitive to magnetic fields.
It is recommended to keep the instrument at a distance
of at least 10" away from any of these devices.
FUNCTION
Activate the context keys shown on the display.
Turns on and off the instrument.
- If pressed briefly, accesses the instrument menu.
- If pressed for at least 2 seconds, turns off the instrument.
Exits the current screen.
Confirm settings.
Select and/or Modify.
This measurement will be stored on the ticket (Printout/QR Code) of the current combustion
analysis.
According to the version of the instrument and/or according with the related setting, it is possible to
print or visualize the QR code.
Proceed with the combustion analysis.
Repeat the autozero phase.
