  • Page 2 Pandora thanks you for choosing Pandect X1100 security system Pandect X-1100 is a premium-class service and security system, designed for motorcycles. It was developed and produced in Russia, in a cozy industrial city of Kaluga in the west of Russia, on a privately owned “Experimental Engineering Factory”...
  • Page 3: Table Of Contents

    Owner’s personal safety – immobilizer Immobilizer mode AntiHiJack mode Replacing immobilizer tag battery Control over system in case of emergency, entering individual PIN code Pandora and a cell phone Control over system via phone Voice information Repeating last message Arming/disarming...
  • Page 4 System installation and set up Installation requirements Connection of the base unit Wiring diagram Programming the systems, entering PIN code Changing setting via 2,4GHz wireless interface Programming menu using VALET button Changing settings using VALET button Additional devices Blockage Radio Relay Connecting RR 100 radio relay Programming the radio relay Supplementary module RHM-02...
  • Page 5: General Information

    General information User manual...
  • Page 6: System Features

    System features Base unit • Dialog encryption of commands. • Individual 128-bit encryption key that can be changed by the user. • Individual disarming PIN code. • RC blockage relay (2,4 GHz, frequency, up to 3 units can be connected). • Built-in integral accelerometer for determining motion and shocks with adaptive processing algorithm. • Built-in 2.4 GHz aerial. • Advanced process of sensor data reading, eliminating false alarm possibilities. • Automatic arming. • Registers delay for interior lighting when arming. • Hands-free mode for arming/disarming without using a remote. • Software updates via built-in mini-USB socket. Immobilizer tag • Dialog encryption of commands. • Arm/disarm button • Individual 128-bit encryption key that can be changed by the user. • Built-in LED indicator • CR 2032 battery. Motorcycle service and security system Pandect X-1100...
  • Page 7: Security Zones

    Security zones • Triggering of the shock sensor (warning level • Triggering of the shock sensor (alarm level) • Triggering of the motion sensor • Triggering of the tilit sensor • Ignition trigger • Brake pedal pressing • Top Case • Side Cases • Seat • Critically low on-board voltage. System set 1. Base unit 2. Immobilizer tags 3. Leather case for immobilizer tags 4. Main cable 5. Cable with VALET button and three-colored light indicator 6.
  • Page 8: Hands Free Mode

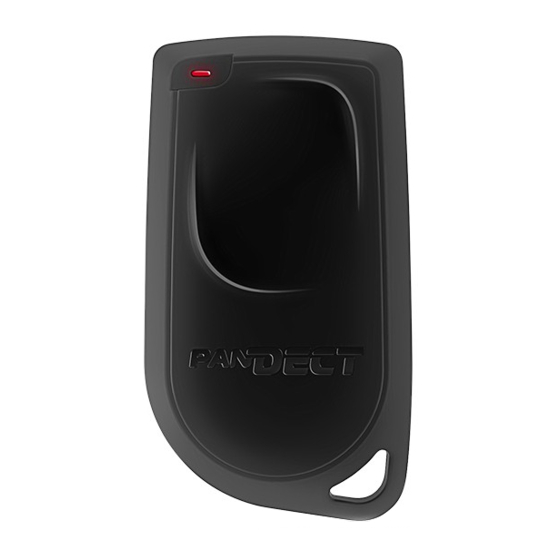

    Controlling security mode LED indicator Control button To arm or disarm a security system while in the range of radio channel (about 5 meters from the motorcycle) push a button on the immobilizer tag. The system will communicate dialog security codes (AES-128 encryption) in 2.4 GHz range on one of 125 channels and your security system will be armed or disarmed.
  • Page 9: Disabling Immobilizer And Antihijack In Case Of Emergency

    Arming/disarming via a phone To control the security system via a phone, call the system’s phone number, wait for response and dial to arm the system or to disarm it. Disabling Immobilizer and AntiHiJack in case of emergency In case immobilizer tag is lost or broken, the system allows for emergency disabling of immobilizer functions and mode.
  • Page 10: Owner's Personal Safety - Immobilizer

    Owner’s personal safety – immbilizer Motorcycle service and security system Pandect X-1100...
  • Page 11: Immobilizer Mode

    Service-security system Pandect X-1100 is a highly effective antitheft and anti-hi-jack security mean. System set has 2 immobilizer tags. For additional security 1 to 3 radio relays can be installed on a motorcycle. Immobilizer mode When ignition is being switched on, Pandect X-1100 moto base unit performs a search for immobilizer tags in radio range.
  • Page 12: Replacing Immobilizer Tag Battery

    Replacing immobilizer tag battery Carefully open the cover of the tag’s battery compartment. Extract discharged battery and insert a new one keeping in mind the correct polarity. Replacing a battery will not cause a loss of tag code information, as authorization data is stored in the nonvolatile memory of the MCU. Carefully close the cover of the tag’s battery compartment.
  • Page 13: Control Over System In Case Of Emergency, Entering Individual Pin Code

    Control over system in case of emergency, entering individual PIN code In case you cannot disarm the system using a tag, owner’s individual PIN code can be used. Individual PIN code is written on the owner’s plastic card under protective layer. Erase the protective VALET layer and use button to input the PIN code.
  • Page 14: Pandora And A Cell Phone

    Pandora and a cell phone Motorcycle service and security system Pandect X-1100...
  • Page 15: Control Over System Via Phone

    Control over system via phone Call the system’s phone number. When it answers, enter command code. Return to previous menu/state Switch on engine preheater Repeat the last message Switch off engine preheater Arming Enable automatic engine start Disarming Disable automatic engine start Silent arming Enable engine blockage Silent disarming...
  • Page 16: Arming/Disarming

    Arming/disarming 1. Call the system’s number and wait for answer. 2. Dial to arm the system or to disarm it. For silent arming dial , for silent disarming 3. The system will confirm: “Arming/disarming“. To end session hang up the phone. Event history 1.
  • Page 17: Enabling/Disabling Automatic Engine Starts

    3. The system will confirm execution. To end session hang up the phone. Switching on/off engine preheater Pandora system has additional control channel for engine preheater control: 1. Call the system’s number and wait for answer. 156* 651* 2.
  • Page 18: Changing Settings Via Phone

    Changing settings via phone To enter programming mode, call the system’s number, wait for answer, switch the ignition on, and in no more than 5 seconds switch it off. The system will switch into settings programming mode. Using voice help, program main settings. Owner's number ->...
  • Page 19: System Installation And Set Up

    System installation and set up User manual...
  • Page 20: Installation Requirements

    General installation requirements • When commutating the wires, leave a • Rigidly secure every element of the little slack, allowing sufficient sag to prevent the system, as regular usage of the motorcycle can destruction of the compounds from vibration create conditions that may damage not only the when driving.
  • Page 21: Connection Of The Base Unit

    Connection of the base unit Wire 1 (White) (DATA TX) can be connected to the corresponding wire of additional devices (optional). Wire 2 (Red/Black) (CH6) (Beeper) negative out of additional channel (max current carrying capacity is not more than 200mA). The out is universal and can operate according to different logic. Wire 3 (Orange-White) (CAN1-High) –...
  • Page 22 White to su CH6 - Outp Red/Black ATTENTION! 200mA Before starting the instalation of the Orange/White system, choose the motorcycle model in Alarm Studio (СAN bus Yellow/White protocols). Grey Microphone Green Base unit (bottom view) White/Blue Groun Black Blue to su Brown/White Orange/Black VALET button...
  • Page 23 MAIN SOCKET TA TX upplementary devices put to beeper +12V INP5 Siren Ignition INP1 CH1/ INP1 - Neutral 200mA INP3 INP4 / Clutch DATA TX DATA RX 200mA Brake pedal P5 - TURN SIGNALS RELAY +12V Black ATA RX upplementary devices +12V Orange/Red INP3 - Trunk...
  • Page 24 Wire 11 (Orange-Black) (CAN1-Low) – should be connected to the motorcycle’s CAN-Low wire. Wire 12 (Yellow-Black) (CH5) Factory preset – no. This output can be reprogrammed to work according to different logic. Wire 13 (Blue-Black) (CH3) Factory preset – blockage. Wire is used to control external blockage relay with normally open logics (is only grounded when the ignition is switched on, if security system is disarmed and radio tag is in range).
  • Page 25: Programming The Systems, Entering Pin Code

    Programming the systems, entering PIN code System settings can be changed by attaching a base unit to the PC vas micro-USB cable. To do this, you will need a piece of software called ALARM STUDIO. It can be downloaded from www.pandorainfo.eu To enter the programming menu 1.
  • Page 26 Level I - 4 Resetting to the factory settings Level I - 5, I - 6, I - 7 Programming of the radio relay #1, #2, #3 Level I - 8 GPS/GLONASS-receiver Pandora NAV-03 recording Motorcycle service and security system Pandect X-1100...
  • Page 27: Changing Settings Using Valet Button

    Settings changing mode via wireless interface of 2,4 GHz Level I - 11 Programming of the code immobilizer Level I - 12..I - 14 Software update of the GPS/ GLONASS-receiver Pandora NAV-03 Level I - 15 Emegency shutdown of the immobilizer and AntiHiJack Changing settings using VALET button Level I-1 Recording remotes and immobilizer tags into the system’s memory...
  • Page 28 • The input will be confirmed by red flash of indicator. • Enter the other numbers in the same manner. • The input of the fourth number will be confirmed by a series red and green .ashes of indicator. • Enter all four numbers again. • If you was able to double-enter the security code without any mistakes, the indicator will pro- duce a series of red and green .ashes and a new code will be recorded, the system will return to the programming mode. • In case of the incorrect code input the indicator will flash red and the system will return to a programming mode. After the input is complete, the indicator goes out, the system awaits a new programming level input.
  • Page 29 Level I-8 - GPS/GLONASS-receiver Pandora NAV-03 recording Enter this programming level; feed the power to the GPS/GLONASS-receiver Pandora NAV-03. If the recording has been done successfully, this will be confirmed by the siren’s signal. Level I-9 - Mode of software replacement via 2.4 GHz channel To change/update the software using a wireless interface 2.4 GHz, enter the ninth programming...
  • Page 30 LED will blink with long red flash, after that the system will go back to selecting the programming level. Level I-12 - Software update of the GPS/ GLONASS-receiver Pandora NAV-03 To update software of NAV-03 using 2.4GHz wireless interface, launch ALARM STUDIO and enter programming level 12.
  • Page 31: Additional Devices

    Additional devices Blockage Radio Relay Optional blockage radio relay RR-100 is available for Pandect x-1100. Radio relay with the built- in accelerometer can be placed in the engine bay. However, check for the built-in 2,4 GHz antenna not to be shielded. Rigid fastening to the motorcycle body or to the rigid wiring harnesses should be provided.
  • Page 32: Gsm/Glonass - Receiver Nav-03

    Programming GSM/GLONASS- receiver NAV-03 Enter this programming level; feed the power to the GPS/GLONASS-receiver Pandora NAV-03. If the recording has been done successfully, this will be confirmed by the siren’s signal.
  • Page 33: Important Information

    Important information User manual...
  • Page 34: Any Problem Can Be Solved

    Any problem can be solved Problem Solution The alarm constantly goes off The sensitivity is too high. Lower sensor sensitivity by the sensor data When arming buzzer sounds Some security zones were not armed (top or side cases were 4 times instead of one left open) or traffic lights were not switched off Cannot disarm the system Battery must be low.
  • Page 35: Buzzer Sounds And Winkers Light Signals

    Buzzer sounds and winkers light signals Signal name Signal description Alarm mode Incessant sound and light signals for 30 seconds Panic mode Incessant sound and light signals for 30 seconds Arming 1 sound and 1 light signal Disarming 2 sounds and 2 light signals Sensors triggered signal when disarming 4 sounds and 4 light signals Sensor malfunction signal when arming...
  • Page 36: Warranty Obligations

    Warranty obligations Manufacturer guarantees correct operation of the service-security system if exploitation, installation, storage and transportation conditions described in this manual were met. The system should only be used according to installation and user manuals. The system should only be installed by the professional installers in service centers. The installer must fill in installation certificate that is included in this manual.
  • Page 37 User manual...
  • Page 38: Installation Certificate

    Installation certificate I, the undersigned Position, name professional installer, certify, installation of the service-security system, described below was carried out by me according to manuals and schemes provided by the manufacturer. Car specifications: Car model Type ID number (VIN) Registration number Security system specifications: Model Pandect X-1100 Serial number...
  • Page 39: Acceptance Certificate

    Acceptance certificate Pandect X-1100 meets the requirements of technical condition act “ТУ 4372-006-55684712-2006“ and is certified for use. Serial number Date of production Responsible person’s signature (stamp) Packager Signature (personal stamp) Warranty card Model Pandect X-1100 Serial number Date of purchase “____“ ______________________ 20____y Seller’s (installer’s) stamp Seller’s signature User manual...
