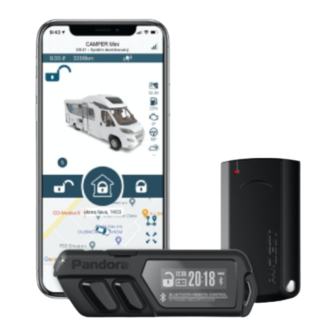

Pandora Camper Mini is a telemetric service-security system built for motorhomes with on-board
voltage of 12V. It is a complex engineering device, which includes unique and modern technological
software and hardware solutions.
When building the Pandora Camper Mini we were using the most up-to-date electronics from
world's best manufacturers. The device is built using high-precision mounting and controling
machinery, thus we guarantee highest possible quality, reliability and stable technical characteristics
for the whole operation period.
The Pandora Camper Mini has a cryptographically strong authorization code with unique dialog
algorithm and individual encryption key on every device. It guarantees protection form electronic
hacking for the whole operation period.
The system is built for your convenience: it's ergonomic, reliable, has the highest security and
service characteristics, 3 years unconditional warranty and free service and support. We are happy to
provide any support we can – feel free to use our online support.
!
WARNING! I
t Is stRoNGly AdvIsed to hAve pRofessIoNAl INstAllAtIoN of the system
INstAll the system usING INstAllAtIoN scheme IN thIs mANuAl ANd the
. o
competeNt INstAllAtIoN
pRoblem Is IN ImpRopeR INstAllAtIoN
This device has limited external factors resistance. It should not be subjected to water beyond occasional splatter, or operated in
temperatures outside -40 to +85° C range. All system components must be installed only in a car interior.
The base unit, remote control and radio tags fulfil with the IP40 category of protection against water.
Our web-site: pandorainfo.com
Customer support: support@pandorainfo.com
uR systems ARe thoRouGhly tested foR quAlIty
.
Product is in conformity with Electromagnetic Compatibility
Directive EMC 2004/108/EC and R&TTE Directive 1999/5/EC
Pandora would like to thank you for
choosing our service-security system
. A
Ny cAR electRoNIcs INstAlleR should be Able to
A
s
. m
lARm
tudIo softWARe
,
so If A feAtuRe fAIls to pRoduce expected Result
ost feAtuRes ARe hIGhly depeNdeNt of
,
most lIkely the

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Camper Mini and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pandora Camper Mini

Summary of Contents for Pandora Camper Mini

  • Page 1 12V. It is a complex engineering device, which includes unique and modern technological software and hardware solutions. When building the Pandora Camper Mini we were using the most up-to-date electronics from world’s best manufacturers. The device is built using high-precision mounting and controling machinery, thus we guarantee highest possible quality, reliability and stable technical characteristics for the whole operation period.

  • Page 2: Table Of Contents

    Table of contents General information Control the system by a phone System set Changing settings via a phone Read before using PIN codes of the system Online-service and mobile application Owner’s personal card External VALET button Control the system System modules layout Arming Base unit Activating Stay Home mode...

  • Page 3: System Set

    System set Read before using 1. Remote control Carefully read this manual before starting installation and using the security-service system. Pay attention to text marked with 2. Radio tag 3. Owner’s personal card 4. External VALET button he secuRIty ANd telemetRIc system Is A complex techNIcAl pRoduct ystem INstAllAtIoN ANd coNfIGuRAtIoN must be cARRIed out oNly by A skIlled pRofessIoNAl 5.

  • Page 4: External Valet Button

    PIN-codes of the system External VALET button The “Secret PIN-code” An external VALET button with a three-color status LED indicator is placed CANNOT BE CHANGED (is written on the “Owner’s personal card”) inside a vehicle (see the system modules layout). The “Service PIN-code”...

  • Page 5: Base Unit

    Webasto Thermo Top Evo и Eberspacher Hydronic/2 heaters. Base unit Built-in micro-USB port – update and configuration of the system using a PC and Pandora Alarm Studio. Built-in GSM modem (2G/3G/4G LTE) provides a connection with our online-service pandora-on.

  • Page 6: Information Signals Of The System

    Information signals of the system SOUND AND LIGHT SIGNALIZATION SIGNALS DESCRIPTION (sound / light) LED INDICATOR SIGNALS Arming 1х /1х SIGNALS DESCRIPTION Disarming 2х /2х THE SYSTEM IS ARMED Car search 5х /5х Short red flashes System is armed Alarm, PANIC mode 30 sec.

  • Page 7: System Functions And Modes

    SYSTEM FUNCTIONS AND MODES • Parking (automatic gearbox) /Handbrake (manual gearbox) status • Parking light is not turned off” notification (status) Security mode • Shock sensor (security zone – alarm and warning level) • Motion sensor (security zone – alarm level) The system confirms arming with 1х...

  • Page 8: Stay Home Mode

    AN EXAMPLE OF THE PROGRAM NETURAL PROCEDURE hIs mode Is dIsAbled by defAult foR A dIGItAl pRotocol oRe INfoRmAtIoN oN loAdeR pANdoRAINfo t Is “p ” slAve 1. When the engine is running, fixate the car with the handbrake and put gear lever to the neutral RecommeNded to ActIvAte the RohIbIt dIsARmING WheN A tAG Is AbseNt to INcReAse secuRIty feAtuRes of the...

  • Page 9: Checking The Number Of Paired Devices

    REMOTE CONTROL D-030 ANTI-HI-JACK-1 mode – The base unit checks if an authorization device is in the radio coverage zone each time when ignition is on and a door is opened/closed. ANTI-HI-JACK-2 mode – The base unit constantly checks if an authorization device is in the radio coverage zone when ignition is on.

  • Page 10: Switch On/Off The Remote Control

    Updating firmware of the remote control -18 С ° Security zone Outside temperature • Download the Pandora BT application (for Android or iOS devices equipped with a Bluetooth 4.0 Low Doors security zone Energy or higher module). 12.0 V • Press and hold the button.

  • Page 11: Quick Access Functions Of The Remote Control

    IMMOBILIZER RADIO TAG Quick access functions of the remote control System is disarmed A radio tag is a device used to control a vehicle/system. The tag is also used as an authorization device System is armed (no alarm events) for “Immobilizer/Anti-Hijack/HandsFree” modes. It works in the Bluetooth coverage zone. The radio tag Ignition is on Ignition is off has: a control button...

  • Page 12: Light Indication Of Send Led

    (fig. 2). Replacing a battery will not cause a loss of • Download the Pandora BT application (for Android or iOS devices equipped with a Bluetooth 4.0 Low tag code information, as authorization data is stored in the non-volatile memory of the MCU. Carefully Energy or higher module).

  • Page 13: Control The System By A Phone

    3. The system will confirm arming/disarming. To end the session, hang up the phone. Enabling/disabling Force connection to the server automatic engine starts Pandora systems have a function of prompt disabling automatic engine start: Switch on additional channel Enable authorization devices 1.

  • Page 14: Changing Settings Via A Phone

    3. The system will confirm: ‘Current coordinates are sent via text message’ and will send text message 1. Enter the setting menu via a phone according to the instruction above; 2. Dial DTMF command 1*(phone number settings) and 1*(owner’s system number); with coordinates and a web link to a map to your phone.

  • Page 15: Online-Service And Mobile Application

    Settings of the alarm level of the supplementary sensor sensitivity Mobile apps: Text messages on engine stop Pandora Connect for iOS is available in the AppStore; GSM connection Settings Pandora Connect for Android is available on the Play Text messages on restoring GSM...
  • Page 16 The system will confirm browser or via the mobile apps Pandora Pro or Pandora Online. Use your previously created login/ pairing with the series of green and red flashes of the LED and a sound signal of the siren.

  • Page 17: Control The System

    CONTROL THE SYSTEM Online-service PRO.P-ON.RU Login to the PANDORA-ON.COM, when the system is online (there is an Internet connection) press the Arming button on the control panel. To arm the system when the ignition is off, use one of the methods described below. The system...

  • Page 18: Disarming

    A radio tag must be in the Bluetooth coverage area. Press and hold the control button on the tag Login to the PANDORA-ON.COM, when the system is online (there is an Internet connection) press the for 2 seconds (until the second flash of the «SEND»...

  • Page 19: Car Search Function

    2 sec. Remote Control Mobile application Pandora Connect • To start the engine, press and hold the button for 3 seconds (the remote control must be in Open the mobile application. When the system is online (there is an Internet or Bluetooth connection), the radio coverage zone).

  • Page 20: Service Mode

    Mobile application Pandora Connect • To start the engine, login to the PANDORA-ON.COM, when the system is online (there is an Internet connection) press the START ENGINE button on the control panel. In a few seconds the engine will be To activate/deactivate service mode, open the mobile application.

  • Page 21: Control The System In Case Of Emergency

    CONTROL OF THE SYSTEM IN CASE OF EMERGENCY between presses should not exceed 1 second. Each pressing will be confirmed with an orange LED indicator flash. The correct input will be confirmed with the series of green and red flashes of the The system has emergency ways to deactivate security and anti-hi-jack functions (using the VALET LED indicator.

  • Page 22: Additional Devices

    The function will be activated. • supports up to 4 remote controls D-043; • integrated “CALL/SOS” for arming/disarming, driver call and emergency notifications; • Integrated PANDORA security mode status LED. 868mh /128b | 2.4G (ble 4.2) |...

  • Page 23: Warranty Obligations

    WARRANTY OBLIGATIONS Blocking radio relay BTR-101 is a wireless device designed to perform blocking engine blocking based or not based on car movement. 2.4G 4.2) R (Nc) | m Manufacturer guarantees correct operation of the service-security system if exploitation, installation, AdIo INteRfAce uIlt IN blockING RelAy...

  • Page 24: Installation Certificate

    Car specifications: Car model____________________________________________ Type ____________________________ Id number (VIN)_______________________________________________________________________ Registration number____________________________________________________________________ Security system specification: Model Pandora Camper Mini Serial number_________________________________________________________________________ Service center name, full address and installer’s stamp ____________________________________________________________________________________ ____________________________________________________________________________________ Signature_____________________/___________________________________/...

  • Page 25: Acceptance Certificate

    ACCEPTANCE CERTIFICATE Model Pandora Pandora Camper Mini is in conformity with Electromagnetic Compatibility Directive EMC 2004/108/EC and R&TTE Directive 1999/5/EC. Serial number ______________________________ Date of production__________________________ Responsible person’s signature (stamp) Packager_____________________________________________________________________________ Signature (personal stamp) WARRANTY CARD Model Pandora Pandora Camper Mini Serial number _______________________________________________________________________ Date of purchase «____»...
