PAWNEE BRAVE SERVICE MANUAL
SECTION XII
ELECTRONICS
12-1. AUTOFLIGHT.
There is no autoflight equipment currently available for this aircraft.
12-2. EMERGENCY LOCATOR TRANSMITTER
(NARCO).
12-3. DESCRIPTION.
The electrical power for the ELT is totally supplied by its own self-contained battery.
This battery pack must be replaced according to the date marked on the battery pack label. If the transmitter
has been used in an emergency situation before the time limit of the battery pack or it has more than one hour
of accumulated test time, the battery must be replaced according to FAA regulations. To replace the battery
pack in the transmitter, it is necessary to remove the transmitter from its mount. (Refer to paragraph 12-5.)
12-4. LOCATION. The ELT is located under an access panel in the aft fuselage near the vertical fin.
D178
TRANSMITTER
o
O 2
I I
I I
REMOTE

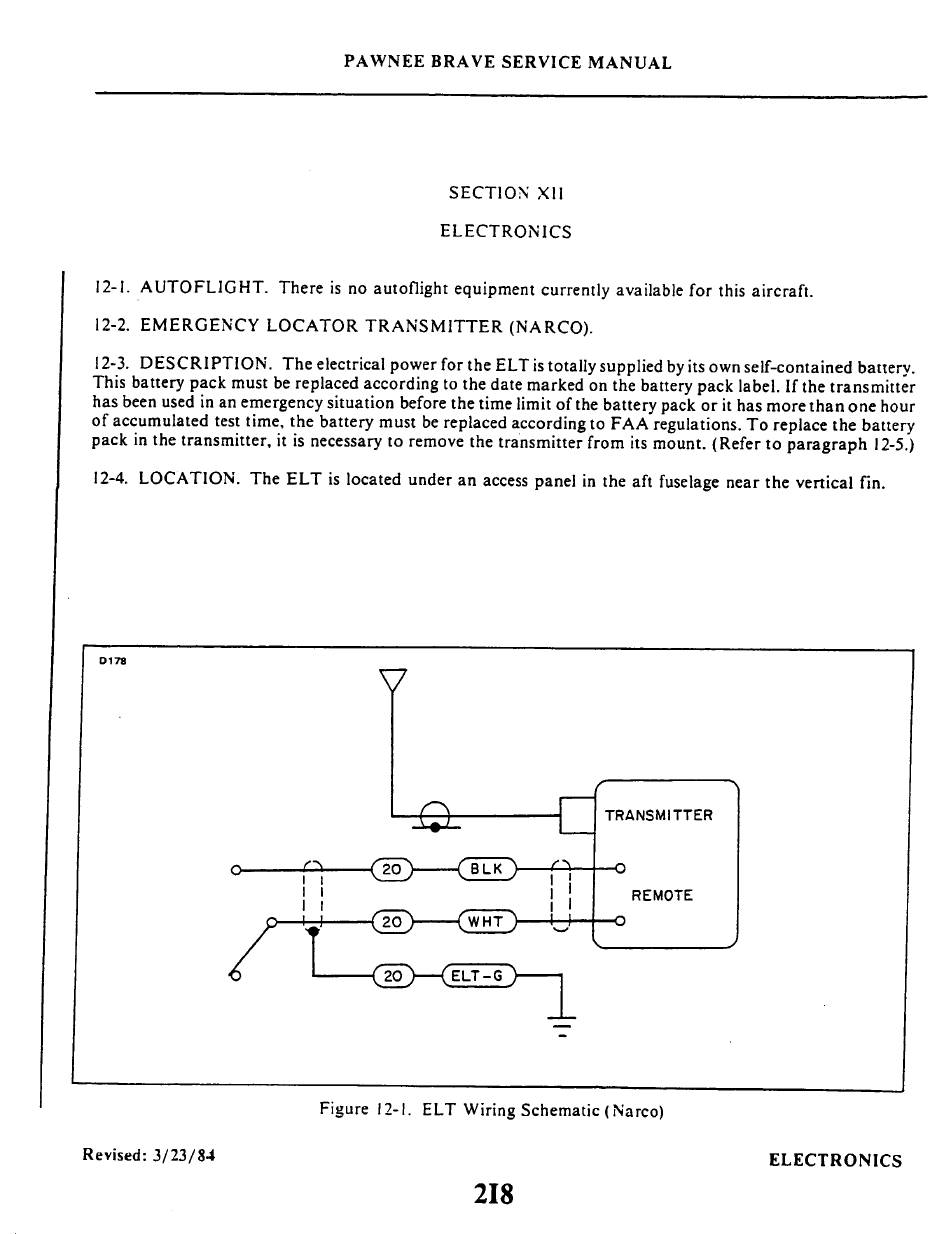

Figure 12-1. ELT Wiring Schematic (Narco)
Revised: 3/23/84
ELECTRONICS
218
