PAWNEE BRAVE SERVICE MANUAL
2386
7
2
1. NOSE BOWL ASSEMBLY,
UPPER
2. TOP ASSEMBLY,
COWL
3. HINGE, UPPER,
RIGHT
15
4. STUD ASSEMBLY
5. DOOR SUPPORT, RIGHT
6. BOLT ASSEMBLY
7. DOOR ASSEMBLY,
COWL, UPPER, RIGHT
15. COWL ASSEMBLY,
LOWER
8. HINGE, UPPER, LEFT
16. SUPPORT ASSEMBLY,
COWL, LOWER, FORWARD
9. DOOR ASSEMBLY,
COWL, UPPER, LEFT
17. SUPPORT ASSEMBLY,
COWL, LOWER, AFT
10. STUD
18. SCREW ASSEMBLY,
COWL ATTACHMENT
11. RETAINER
19. SCREW ASSEMBLY,
COWLATTACHMENT
12. HOOK ASSEMBLY,
COWL LATCH (5 REQ)
20. SCREW ASSEMBLY,
COWL ATTACHMENT
13. HOOK ASSEMBLY,
COWL LATCH (1 REQ)
21. SCREW ASSEMBLY,
COWL SUPPORT
14. DOOR ASSEMBLY,
COWL. LOWER, LEFT.
22. BRACKET,
COWL MOUNTING

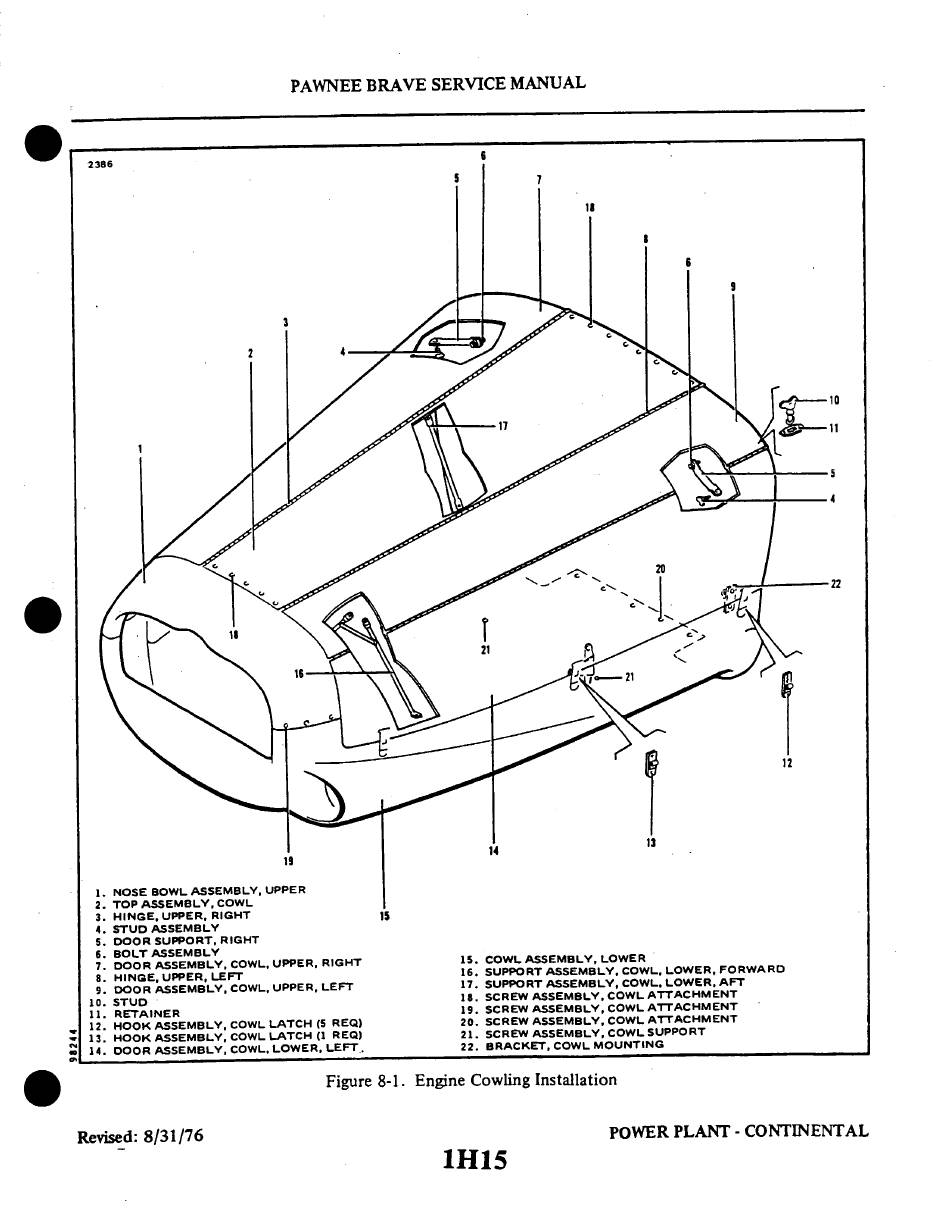

Figure 8-1. Engine Cowling Installation
POWER PLANT - CONTINENTAL
1H15
Revised: 8/31/76
