Sonoscape S8Exp Quick Manual

General Introduction
S8 Exp is borne from our relentless efforts to be the most
innovative ultrasound manufacturer in the word. The S8 Exp
provides a premium, efficient portable ultrasound solution with
performance and style.

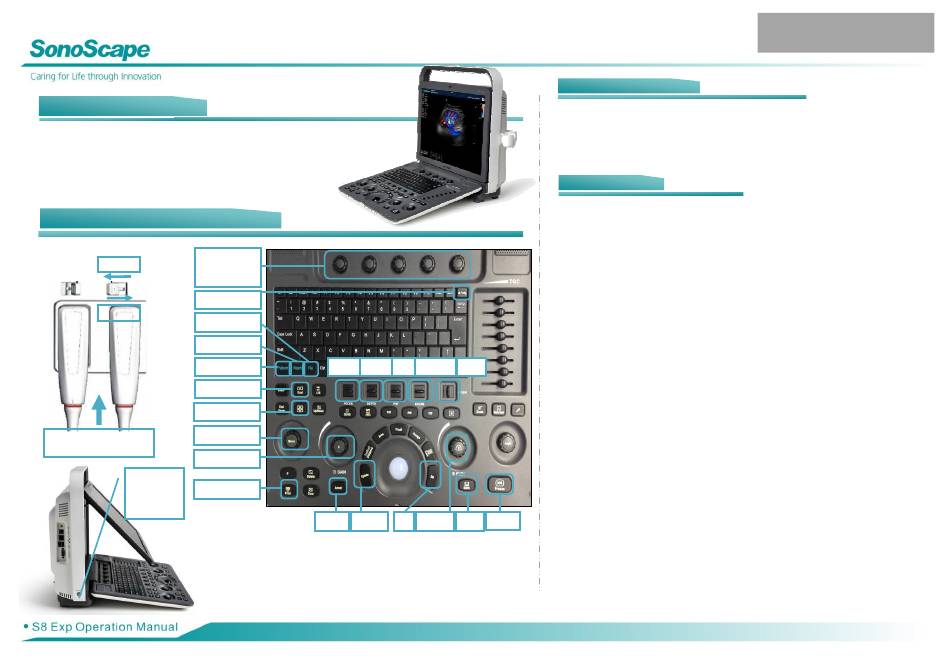

Preparation before Scanning
Parameter
Lock
Adjustment
M-Tuning
Unlock
File
Report
Patient
Dual
Quad
Menu
Probe Direction
Color Mode
Power
Print
ON/Off
Focus Depth PRF
Baseline Steer
Annot Update Set B Mode Save Freeze
1. Getting Start
Create new patient and get into Scanning Mode
1. Press [Patient], fill in basic patient information;
2. Press OK on the patient interface to create a new patient file;
3. Move the [Trackball] to choose the probe and exam.
2. Scanning
B Mode
1. The default scanning mode is B mode, if you want to return to B mode, please
press the [B] in keyboard;
2. Rotate [B] in keyboard to adjust gain, or Press [M-tuning] for image one key
optimization.
Image Adjustment in B mode:
Easily adjust parameters by five knobs just under the monitor, or press the [Menu],
mostly include:
[Gain] : ↓↑ brightness;
[μ-Scan] : 5- level speckle reduction；
[Compound]: edge enhancement; [GSC]: 7 selectable grayscale curve;
[DYN] : ↓more contrast, ↑more information and details;
[Frequency]: high frequency for resolution, while low frequency for penetration;
[Chroma]: colorize the image for high resolution.
2B/4B Imaging
1. Press [Dual] or [Quad] to get into 2B/4B imaging;
2. Press [Dual] or [Quad] to change the activated image.
Color/DPI Mode
1. Press [C] in the keyboard to enter Color mode;
2. Move [Trackball] to change the position of ROI;
3. Press [Set] and then move [Trackball] to change the size of ROI;
4. Press [Set] again to change the position of ROI.
The Parameters in Color Mode:
Easily adjust parameters by keys in the keyboard, include:
[D Gain] : ↓↑ color brightness ; [PRF] : ↓↑ Scale;
