Sonoscape Flagship S9 Quick Manual

General Introduction

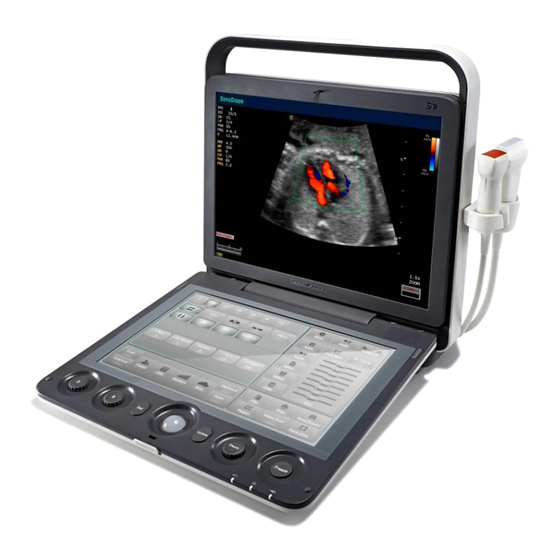

S9, the portable Color Doppler system in SonoScape, has the
unique 13.3 inch touch control panel. With the state-of-the-art
powerful imaging platform, it will provide you the best solution for
ultrasound diagnosis with outstanding performance.

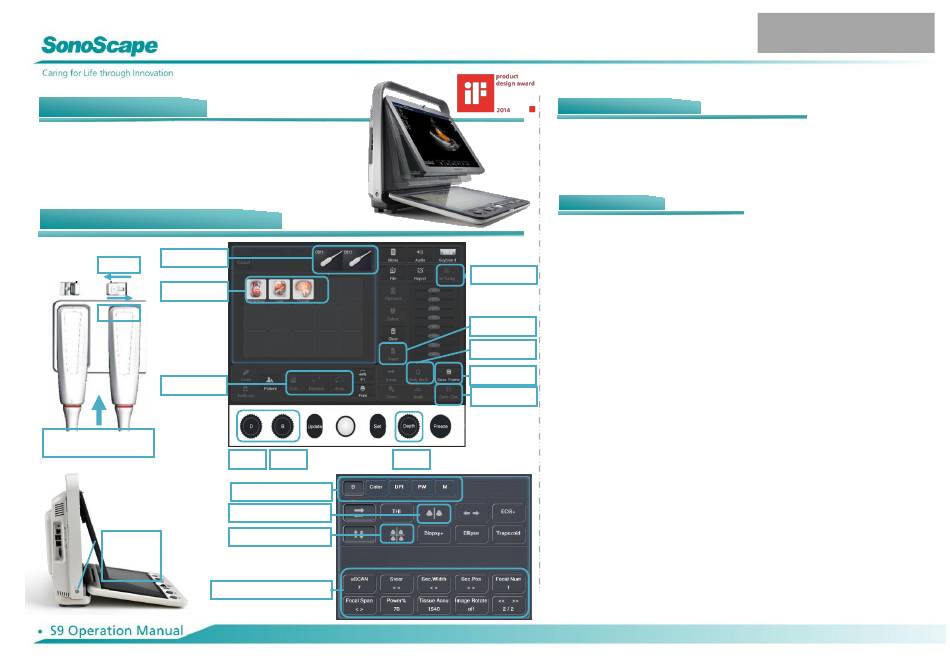

Preparation before Scanning
Probe
Lock
Exam Mode
Unlock
Calculation
Probe Direction
Power
ON/Off
Parameter Adjustment
D Gain B Gain Depth
Scanning Mode
Dual Mode
Quad Mode

1. Getting Start

Create new patient and get into Scanning Mode
1. Press [Patient], fill in basic patient information;
2. Press OK on the patient interface to create a new patient file;
3. Choose the probe and exam mode on the touch screen.

2. Scanning

B Mode
1. The default scanning mode is B mode, if you want to return to B mode, please
press the [B] in keyboard or B Mode on the touch screen.
M-tuning
2. Rotate [B] in keyboard to adjust gain, or Press [M-tuning]on the touch screen for
image one key optimization.
Image Adjustment in B mode:
Annotation
Easily adjust parameters by touch left or right side of the button, mostly include:
Body Mark [Gain] : ↓↑ brightness;
[Compound]: edge enhancement;
Save Image
[DYN] : ↓more contrast, ↑more information and details;
Save Cine
[Frequency]: high frequency for resolution, while low frequency for penetration;
[Chroma]: colorize the image for high resolution.
2B/4B Imaging
1. Press [Dual] or [Quad] to get into 2B/4B Imaging;
2. Press [Dual] or [Quad] to change the activated image.
Color/DPI Mode
1. Press [Color] on the screen or [D] in keyboard to enter Color mode;
2. Move [Trackball] to change the position of ROI;
3. Press [Set] and then move [Trackball] to change the size of ROI;
4. Press [Set] again to change the position of ROI.
The Parameters in Color Mode:
Easily adjust parameters by touch left or right side of the button, include:
[D Gain] : ↓↑ color brightness ; [PRF] : ↓↑ Scale;
Flagship
S9
[μ-Scan] : 5- level speckle reduction；
[GSC]: 7 selectable grayscale curve;
