Installation Instruction; Physical Dimension Of The Outdoor Unit And Mounting Hole - Gree GMV-224WM/B-X Owner's Manual

D.C. Inverter Multi-variable Modular

4 Installation Instruction

4.1 Physical Dimension of the Outdoor Unit and Mounting Hole

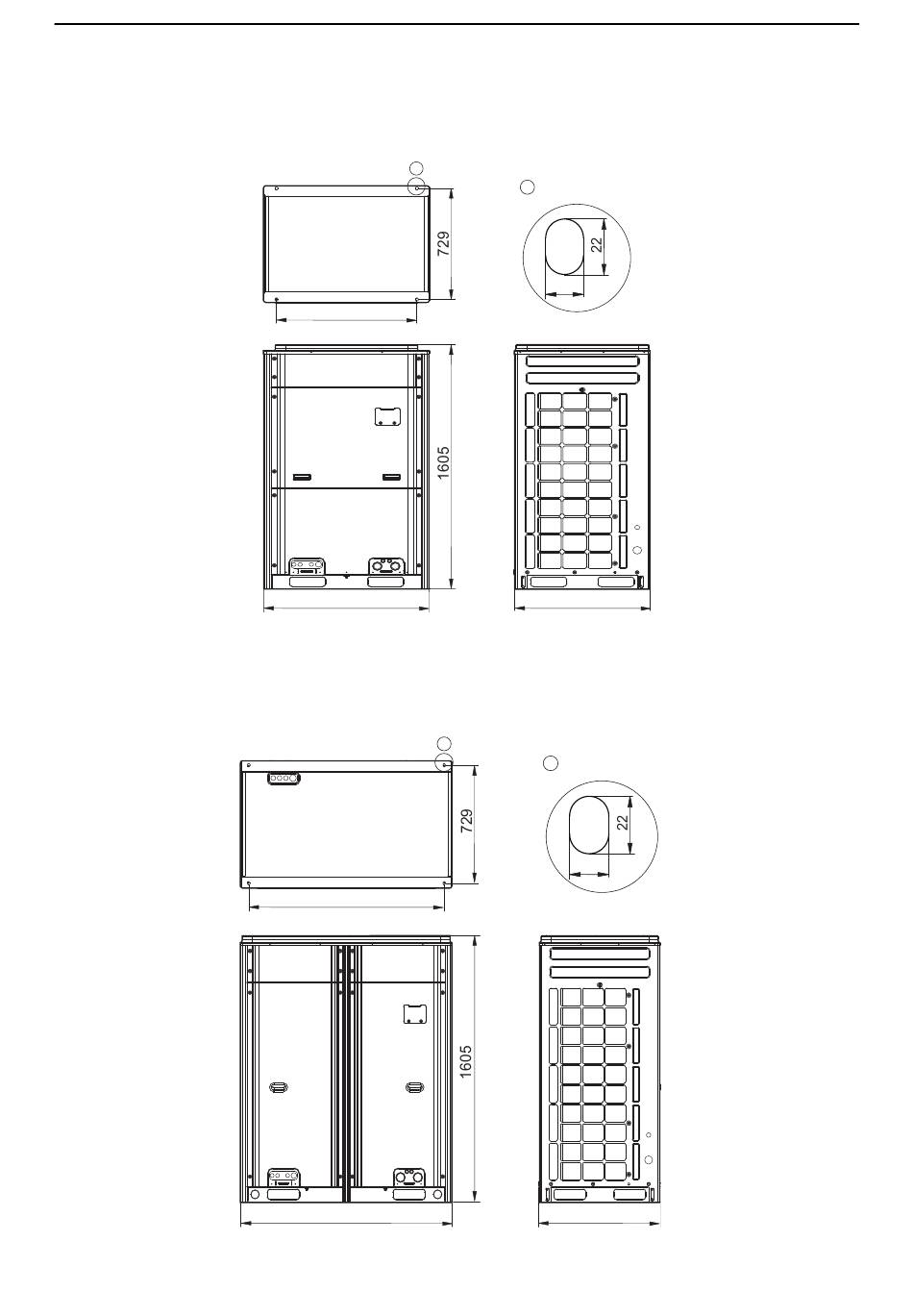

Outline and Physical Dimention of GMV-224WM/B-X and GMV-280WM/B-X unit.
Outline and Physical Dimention of GMV-335WM/B-X, GMV-400WM/B-X and GMV-450WM/B-X
unit.
1
792
930
Fig.13
2
1200
1340
Fig.14
11
Installation hole
1
15
765
Installation hole
2
15
765
