INSTRUCTION MANUAL
FOR
TEMPERATURE RELAY
BE1-49
Publication Number:
9 1267 00 990
Revision:
D
12/01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BE1-49 and is the answer not in the manual?

Questions and answers

Related Manuals for Basler BE1-49

Summary of Contents for Basler BE1-49

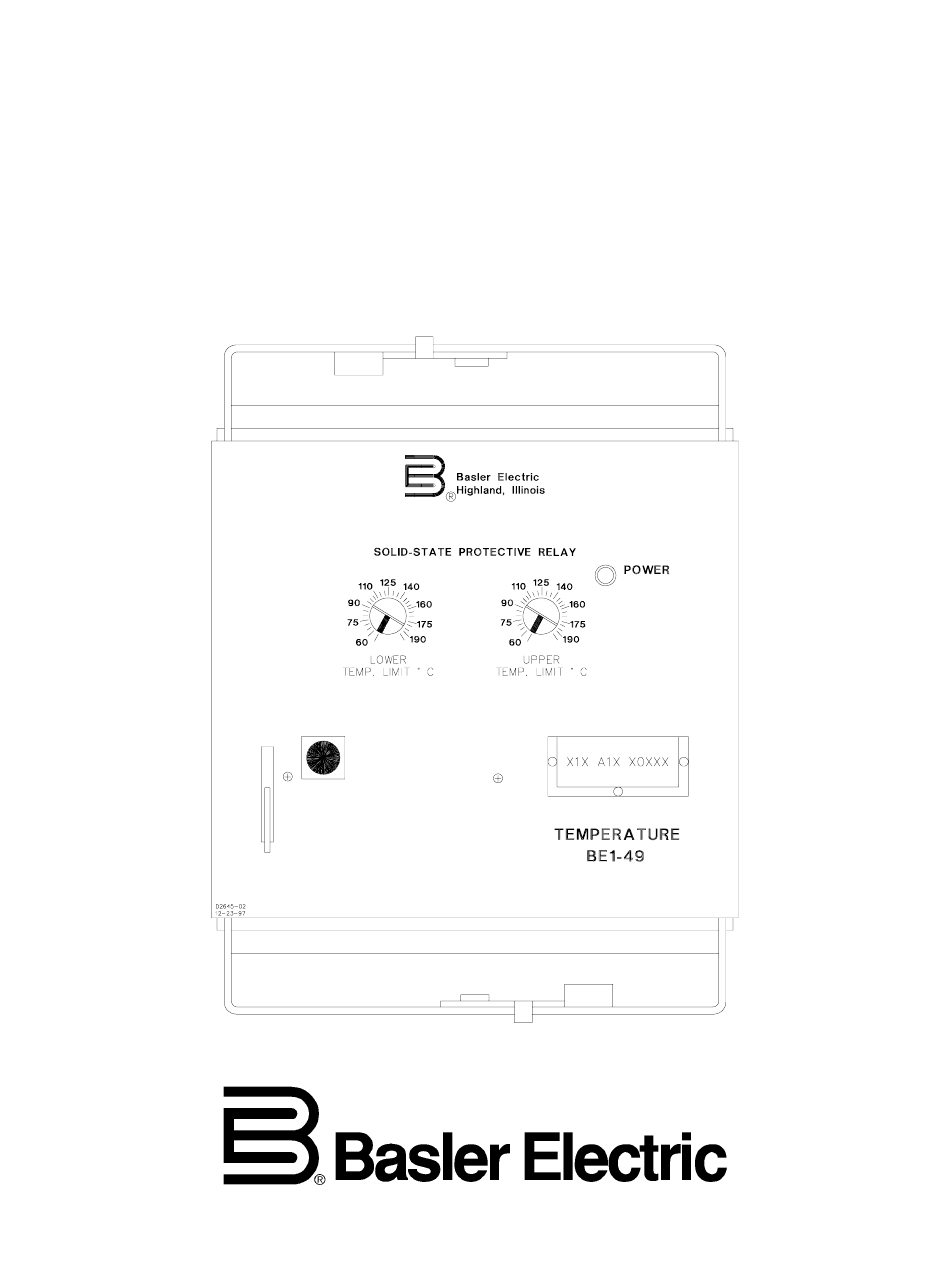

  • Page 1 INSTRUCTION MANUAL TEMPERATURE RELAY BE1-49 Publication Number: 9 1267 00 990 Revision: 12/01...
  • Page 2 INTRODUCTION This Instruction Manual provides information concerning the operation and installation of BE1-49 Temperature Relay. To accomplish this, the following is provided. Specifications Functional characteristics Installation Operational Tests Mounting Information WARNING To avoid personal injury or equipment damage, only qualified personnel should perform the procedures presented in this manual.
  • Page 3 December 2001 CONFIDENTIAL INFORMATION OF BASLER ELECTRIC COMPANY, HIGHLAND, IL. IT IS LOANED FOR CONFIDENTIAL USE, SUBJECT TO RETURN ON REQUEST, AND WITH THE MUTUAL UNDERSTANDING THAT IT WILL NOT BE USED IN ANY MANNER DETRIMENTAL TO THE INTEREST OF BASLER ELECTRIC COMPANY.

  • Page 4: Table Of Contents

    Changes ............7-1 BE1-49 Introduction...

  • Page 5: Section 1 • General Information

    SECTION 1 • GENERAL INFORMATION GENERAL The BE1-49 Temperature Relay is a solid state device that monitors the temperature of a remotely located resistive temperature detector (RTD), and provides signals to the protective scheme when the sensed temperature goes above or below predetermined limits. A variety of output options provide a selection of latching or non-latching types of normally open or closed contacts.
  • Page 6 Closed, Closed NC, Latching (UTL) S. Two relays: Open, Open Closed, Open Closed, Open Open, Closed Upper NO Latching Lower NC T. Two relays: Closed, Closed Open, Closed Open, Closed Closed, Open Upper NC Latching Lower NO BE1-49 General Information...

  • Page 7: Sample Style Number

    (E) Isolated internal operating power obtained from 100/120 Vac source (B) One current operated target (0) No Option 1 available (N) No Option 2 available (5) SPDT auxiliary contact output (F) Semi-flush mounting Figure 1-1. Style Number Identification Chart BE1-49 General Information...

  • Page 8: Specifications

    (NO) output contacts have been specified. Temperature Adjustment Range Two independently adjustable temperature controls, one for upper and one for lower temperature limits, each capable of settings over the range of 60 to 190  C. BE1-49 General Information...
  • Page 9 Temperature -20  C (-4  F) to +65  C (+149  F). Operating Range -50  C (-58  F) to +90  C (+194  F). Storage Range Weight 11 pounds net. Case Size BE1-49 General Information...

  • Page 10: Human-Machine Interface (Controls And Indicators)

    (black) position after an upper temperature indication is terminated by pushing up on the reset lever that extends through the lower left of the relay case front cover. BE1-49 Human-Machine Interface (Controls and Indicators)
  • Page 11 Figure 2-1. Location of Controls and Indicators BE1-49 Human-Machine Interface (Controls and Indicators)

  • Page 12: Section 3 • Functional Description

    Figure 3-1. Functional Block Diagram Power Supply Basler Electric enhanced the power supply design for unit case relays. This new design created three, wide range power supplies that replace the six previous power supplies. Style number identifiers for these power supplies have not been changed so that customers may order the same style numbers that they ordered previously.

  • Page 13: Power Supply Status Output

    Refer to Figure 1-1 for a list of all of the available output options. Target Indicator An optional target indicator on the front panel is tripped and magnetically latched when the upper temperature limit is exceeded. It may be reset manually after the upper temperature limit output is de-energized. BE1-49 Functional Description...

  • Page 14: Section 4 • Installation

    If there is evident damage, immediately file a claim with the carrier and notify the Regional Sales Office, or contact Customer Service at Basler Electric, Highland, Illinois. In the event the relay is not to be installed immediately, store the relay in its original shipping carton in a moisture and dust free environment.

  • Page 15: Adjustments

    The relay has been calibrated at the factory and it is strongly recommended that the calibration adjustments not be disturbed. If, however, relay pickup accuracy is suspect for any reason, remove the relay from service and check the temperature settings using the procedures given in Section 5 of this manual. BE1-49 Installation...
  • Page 16 D 1 4 2 7 - 0 1 . V S D 12-04-01 Figure 4-1 . S1 Case, Outline Dimensions, Front View BE1-49 Installation...
  • Page 17 DETAIL A-A SHOWING THE ADDITION OF WASHERS OVER THE BOSS TO TIGHTEN THE RELAY AGAINST THE PANEL. D 1 4 2 7 - 2 8 12-04-01 Figure 4-3 . S1 Case, Single-Ended, Projection Mount, Outline Dimensions, Side View BE1-49 Installation...
  • Page 18 Figure 4-4 . S1 Case, Double-Ended, Semi-Flush Mounting, Outline Dimensions, Side View CASE DETAIL A-A SHOWING THE ADDITION OF WASHERS OVER THE BOSS TO TIGHTEN THE RELAY AGAINST THE PANEL. P0002-17 01-30-01 Figure 4-5 . S1 Case, Double-Ended, Projection Mount, Outline Dimensions, Side View BE1-49 Installation...
  • Page 19 5.56 (141.3) D1427-25 12-06-01 8.38 (212.9) Figure 4-6 . S1 Case, Single-Ended, Projection Mount, Outline Dimensions, Rear View BE1-49 Installation...
  • Page 20 Figure 4-7 . S1 Case, Double-Ended, Projection Mount, Outline Dimensions, Rear View BE1-49 Installation...
  • Page 21 Figure 4-8 . S1 Case, Panel Drilling Diagram, Semi-Flush Mounting BE1-49 Installation...
  • Page 22 Figure 4-9 . S1 Case, Single-Ended, Projection Mount, Panel Drilling Diagram, Rear View BE1-49 Installation...
  • Page 23 Figure 4-10 . S1 Case, Double-Ended, Projection Mounting, Panel Drilling Diagram, Rear View 4-10 BE1-49 Installation...
  • Page 24 Figure 4-11. DC Connection Diagram BE1-49 Installation 4-11...

  • Page 25: Section 5 • Operational Test

    Step 5. With relay connecting plug(s) in place, apply appropriate operating power to relay. Step 6. Observe that the test setup indicators are ON or OFF as listed in the chart which follows. Test Setup Indicators, Step 6 OUTPUT OPTION OPTION 3 BE1-49 Operational Test...
  • Page 26 Figure 5-1. Temperature Relay Test Setup BE1-49 Operational Test...
  • Page 27 10°C below the upper limit setting (using Figure 5-2), then adjust resistor decade box for the resistance value obtained. Observe that relay resets per indication chart below. Reset Indications, Step 11 OUTPUT OPTION OPTION 3 BE1-49 Operational Test...

  • Page 28: Operational Test Of Lower Temperature Limit Trip

    Step 1. Connect the relay as shown in Figure 5-1. Step 2. Set the resistor decade box for 0.0 ohms. Step 3. Set LOWER T EMP LIMIT °C control to 60. Step 4. Set UPPER TEM P LIMIT °C control to 190. BE1-49 Operational Test...

  • Page 29: Trip Point Selection (Except Output Options L And M)

    This proced ure provides a method for selecting the upper and lower temperature limit trip points. The lower trip point is selected first. If only the upper trip selection is desired, perform steps 1, 3, 9, 10 and 11. Step 1. Connect the relay as shown in Figure 5-1. BE1-49 Operational Test...

  • Page 30: Trip Point Selection (Output Options L And M)

    Step 9. Slo wly adjust LOW ER TEM P LIMIT °C control counterclockwise until appropriate indication is observed. For option L, DS1 should go off; for option M, DS1 should go on. The lowe r temperature limit trip point is now selected. BE1-49 Operational Test...

  • Page 31: Section 6 • Maintenance

    SECTION 6 • MAINTENANCE GENERAL Basler relays are static devices which require no preventive maintenance other than a periodic operational check. The operational test procedure of Section 5 provides an adequate check to verify proper operation of the relay. Most components are on conformally coated PC boards. In-house replacement of individual components may be difficult and should not be attempted unless appropriate equipment and qualified personnel are available.

  • Page 32: Section 7 • Manual Change Information

    1. Corrected Style Chart by changing power supply type X from “230 Vac” to “240 Vac”. Added new power supply information to Section 3 in Power Supply paragraph starting with “Basler Electric enhanced the power supply design...”. Added new dimension figures to include all options available (S1 Single- Ended and Double-Ended, and both mounting positions).
