Summary of Contents for Robe onePATT

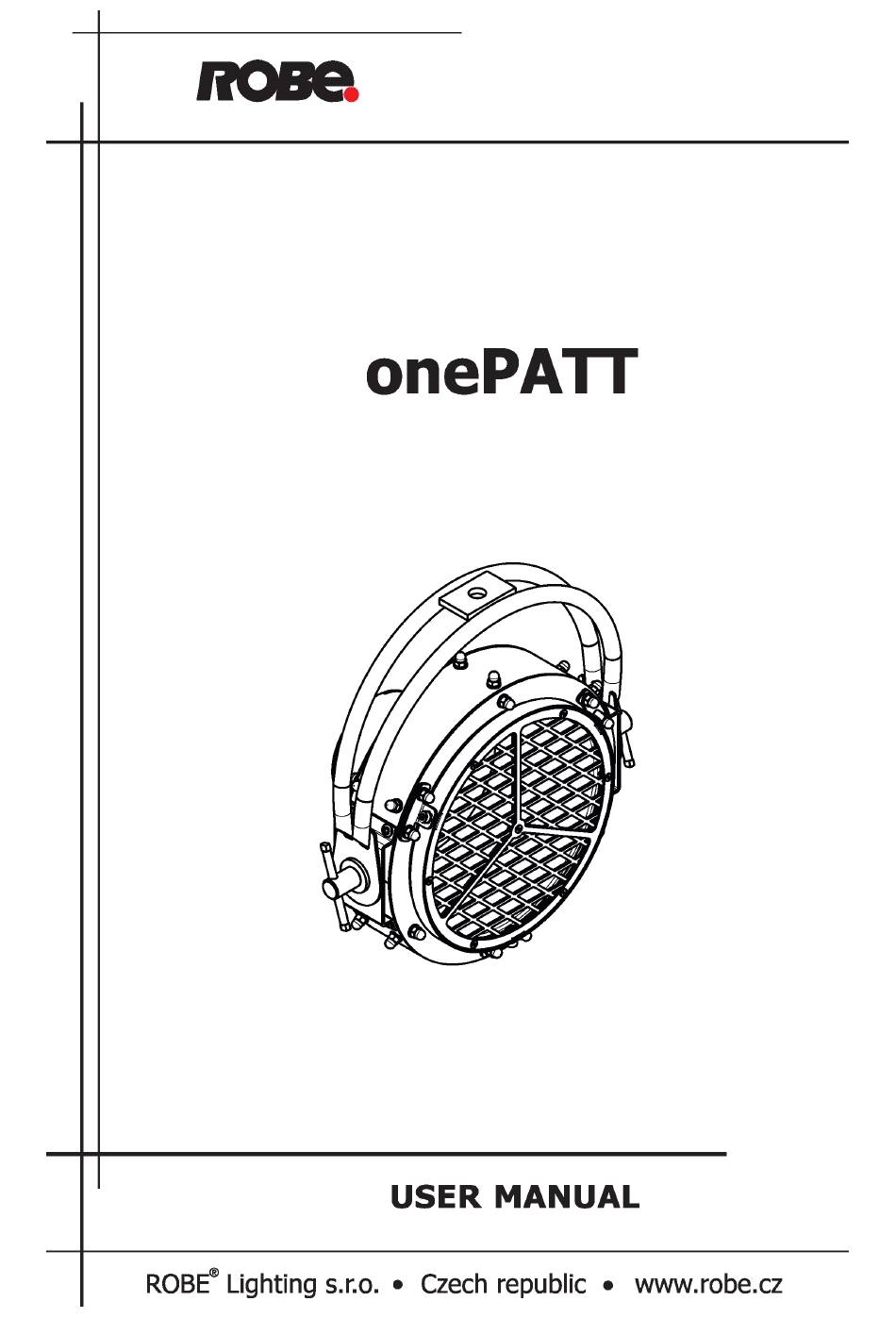

- Page 1 Version 1.4...
- Page 2 Table of contents 1. Safety instructions ......................3 2. Description of the fixture ....................4 3. Installation........................5 3.1 Mounting the onelPATT ..................... 5 3.2 Connecting the pixelPATT with the PATT Driver ............5 4. Technical specifications ....................7...
-
Page 3: Safety Instructions
The light source contains blue LEDs. When choosing the installation spot, please make sure that the onePATT are not exposed to extreme heat, moisture or dust. Operate the onePATT only after having familiarized with its functions. Do not permit operation by persons not qualified for operating the onePATT. - Page 4 2. Description of the fixture 1 - Yoke with mounting hole 2 - Tilt lock 3 - Front net cover 4 - Control Output (4-pin XLR) 5 - Control Input (4-pin XLR) 6 - Parabolic aluminium reflector Control...
- Page 5 Note: the spigot has to be inserted into the floor stand and always secured. For overhead installation the onePATT has to be always secured to the truss by means of a safety wire (that can hold at least 10 times the weight of the fixture) which is fastened to the truss and around mounting yoke of the onePATT.
- Page 6 (the first onePATT connected to the PATT Driver) as shown on the picture bellow. If you use the original Robe 4-pin XLR cable, this ferrite is part of the cable and you do not need to install another ferrite on the cable.
-
Page 7: Technical Specifications
4. Technical specifications Input voltage: Max. power consumption: Compatible control driver: PATT Driver (max. 7 onePATTs can be connected to the driver) Light source: RGBW LED multichip LED life expectancy: min. 20 000 hours Typical lumen maintenance: 70% @ 20 000 hours Optical System: 200 mm parabolic aluminium reflector with high reflectivity coating Control input/output:... - Page 8 Beam distribution Copyright © 2017-2018 Robe Lighting - All rights reserved Specifications are subject to change without notice. January 19, 2018 Made in ROBE Lighting s.r.o., Palackého 416, 757 01 Valašské Meziříčí, Czech Republic...
