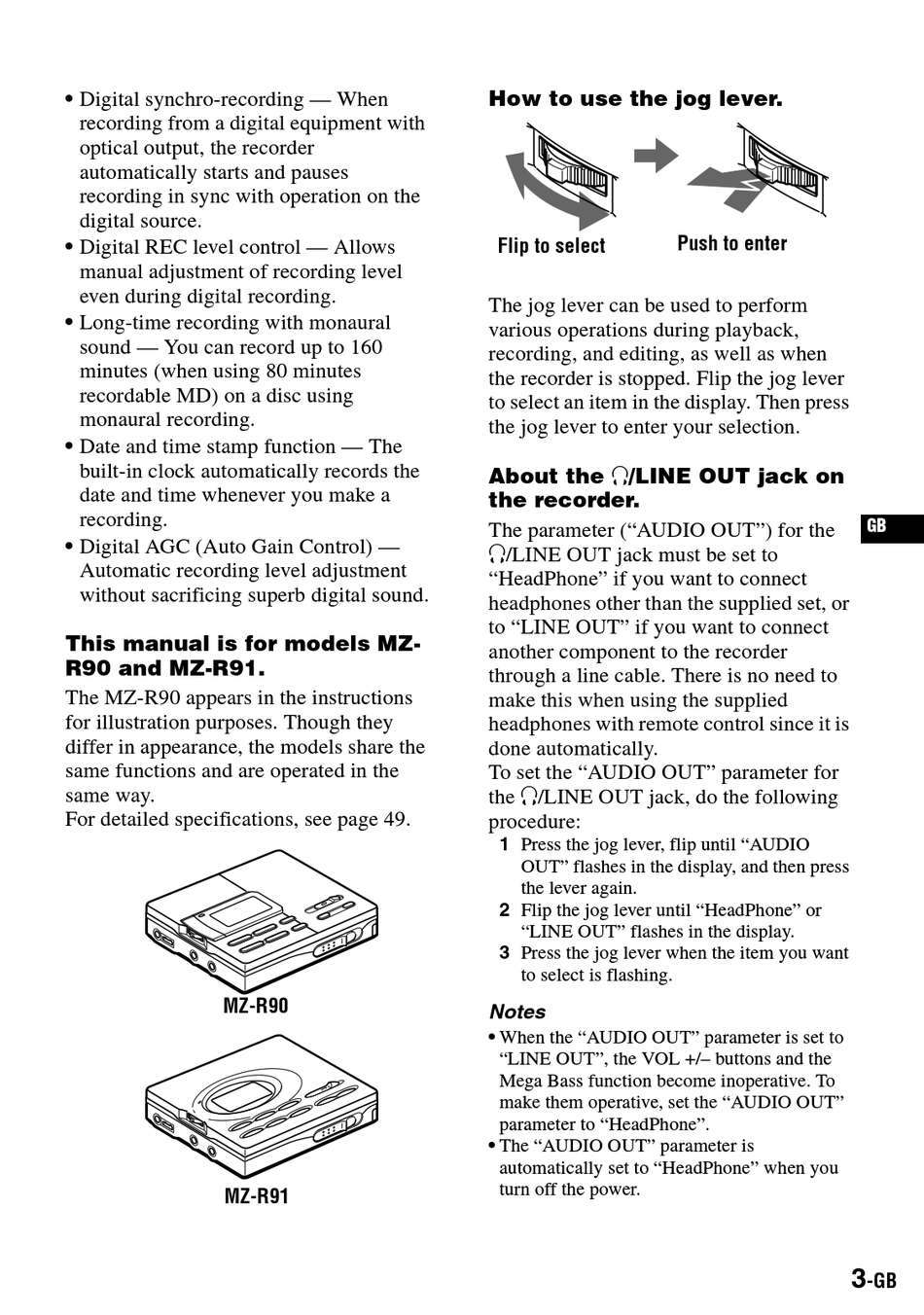

Sony MZ-R90/R91 Operating Instructions Manual page 3

• Digital synchro-recording — When
recording from a digital equipment with
optical output, the recorder
automatically starts and pauses
recording in sync with operation on the
digital source.
• Digital REC level control — Allows
manual adjustment of recording level
even during digital recording.
• Long-time recording with monaural
sound — You can record up to 160
minutes (when using 80 minutes
recordable MD) on a disc using
monaural recording.
• Date and time stamp function — The
built-in clock automatically records the
date and time whenever you make a
recording.
• Digital AGC (Auto Gain Control) —
Automatic recording level adjustment
without sacrificing superb digital sound.
This manual is for models MZ-
R90 and MZ-R91.
The MZ-R90 appears in the instructions
for illustration purposes. Though they
differ in appearance, the models share the
same functions and are operated in the
same way.
For detailed specifications, see page 49.
MZ-R90
MZ-R91
How to use the jog lever.
Flip to select
The jog lever can be used to perform
various operations during playback,
recording, and editing, as well as when
the recorder is stopped. Flip the jog lever
to select an item in the display. Then press
the jog lever to enter your selection.
About the i/LINE OUT jack on
the recorder.
The parameter ("AUDIO OUT") for the
i/LINE OUT jack must be set to
"HeadPhone" if you want to connect
headphones other than the supplied set, or
to "LINE OUT" if you want to connect
another component to the recorder
through a line cable. There is no need to
make this when using the supplied
headphones with remote control since it is
done automatically.
To set the "AUDIO OUT" parameter for
the i/LINE OUT jack, do the following
procedure:
1 Press the jog lever, flip until "AUDIO
OUT" flashes in the display, and then press
the lever again.
2 Flip the jog lever until "HeadPhone" or
"LINE OUT" flashes in the display.
3 Press the jog lever when the item you want
to select is flashing.
Notes
• When the "AUDIO OUT" parameter is set to
"LINE OUT", the VOL +/– buttons and the
Mega Bass function become inoperative. To
make them operative, set the "AUDIO OUT"
parameter to "HeadPhone".
• The "AUDIO OUT" parameter is
automatically set to "HeadPhone" when you
turn off the power.
Push to enter
3
GB
-GB
