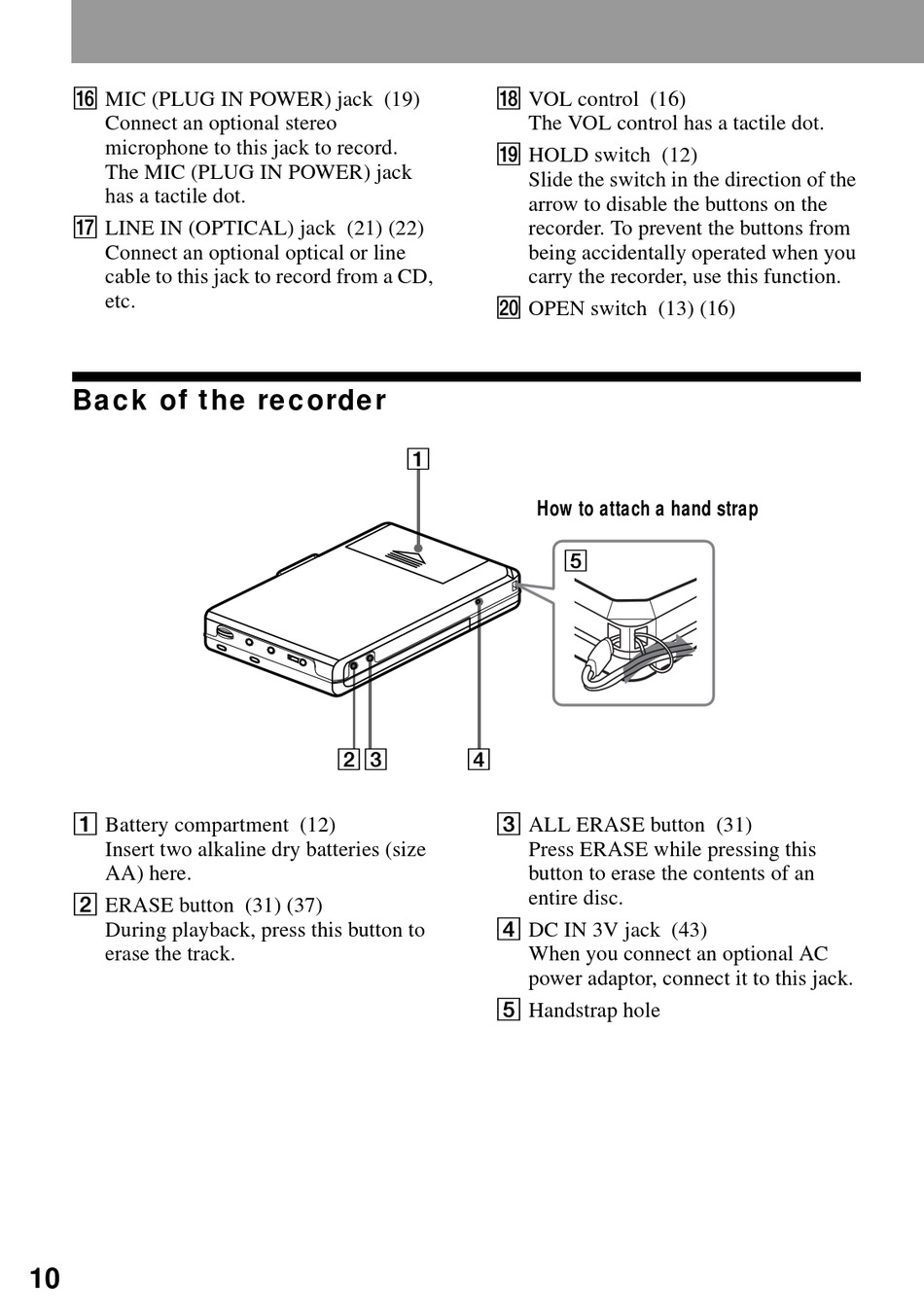

P MIC (PLUG IN POWER) jack (19)
Connect an optional stereo
microphone to this jack to record.
The MIC (PLUG IN POWER) jack
has a tactile dot.
Q LINE IN (OPTICAL) jack (21) (22)
Connect an optional optical or line
cable to this jack to record from a CD,
etc.
Back of the recorder
A Battery compartment (12)
Insert two alkaline dry batteries (size
AA) here.
B ERASE button (31) (37)
During playback, press this button to
erase the track.
10
R VOL control (16)
S HOLD switch (12)
T OPEN switch (13) (16)
1
2 3 4
C ALL ERASE button (31)
D DC IN 3V jack (43)
E Handstrap hole
The VOL control has a tactile dot.
Slide the switch in the direction of the
arrow to disable the buttons on the
recorder. To prevent the buttons from
being accidentally operated when you
carry the recorder, use this function.
How to attach a hand strap
5
Press ERASE while pressing this
button to erase the contents of an
entire disc.
When you connect an optional AC
power adaptor, connect it to this jack.
