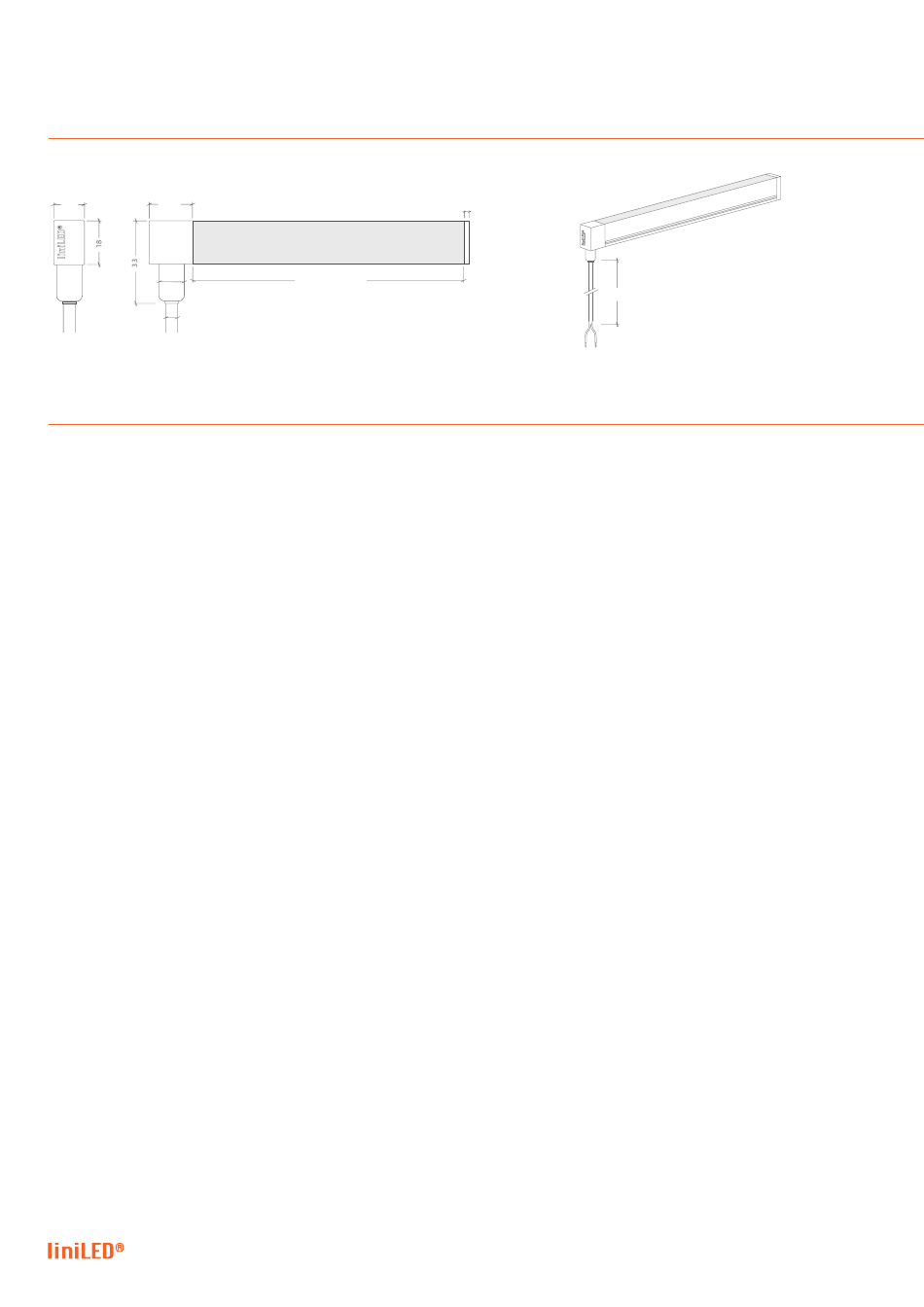

Top Diffuse 12 - Product drawings
18
12
10
4.5
Top Diffuse 12 - Technical specifications
Ultra Warm White
Top Diffuse 12
Product code
11829
Typical CCT
2309K
Power (24 V DC)
8.9 W/m
Power (25 V DC)
9.3 W/m
Luminous flux
167 lm/m
Luminous efficiency
19 lm/W
CRI
> 88
Binning
± 50K
MacAdam
3 steps
Output signal
PWM dimming, 24 V DC Common Anode
LED
Duris® E3
Number of LEDs
6 per section/120 per metre
Operating voltage
24 V DC
Max. operating voltage
25 V DC
Spool length
Max. 10 m
Section length
5 cm
Max. connection length
10 m
Expected lifetime
B50/L70 > 60,000 hours @ Tc = 40°C
Ingress protection
IP68+ > 50 m/IP69K
Storage temperature
-30°C ... 55°C
Operating temperature
-30°C ...
Minimal bending radius
150 mm
Dimensions
12x18 mm
Weight
240 gram per metre
1
Max. connection length between -30°C ... -20°C is 7 metres.
LED strip length
Extra Warm White
Warm White
11830
11831
2534K
2828K
8.9 W/m
8.3 W/m
9.3 W/m
8.6 W/m
185 lm/m
169 lm/m
21 lm/W
20 lm/W
> 91
> 90
55°C1
3
1000/5000 mm
Natural White
Cold White
11832
11833
3700K
6201K
8.6 W/m
8.6 W/m
9.0 W/m
9.0 W/m
181 lm/m
184 lm/m
21 lm/W
21 lm/W
> 92
> 92
5
