ETC Installation Guide
Unison Echo
Overview
Echo Inspire stations provide preset, zone, and space combine and color
controls for use with Unison Echo and Sensor
Reference the ETC website at
documentation including the data sheet which provides a complete listing of
station types, and the Echo Inspire Station Programming Guide for complete
instruction to configure and program all station controls and features.

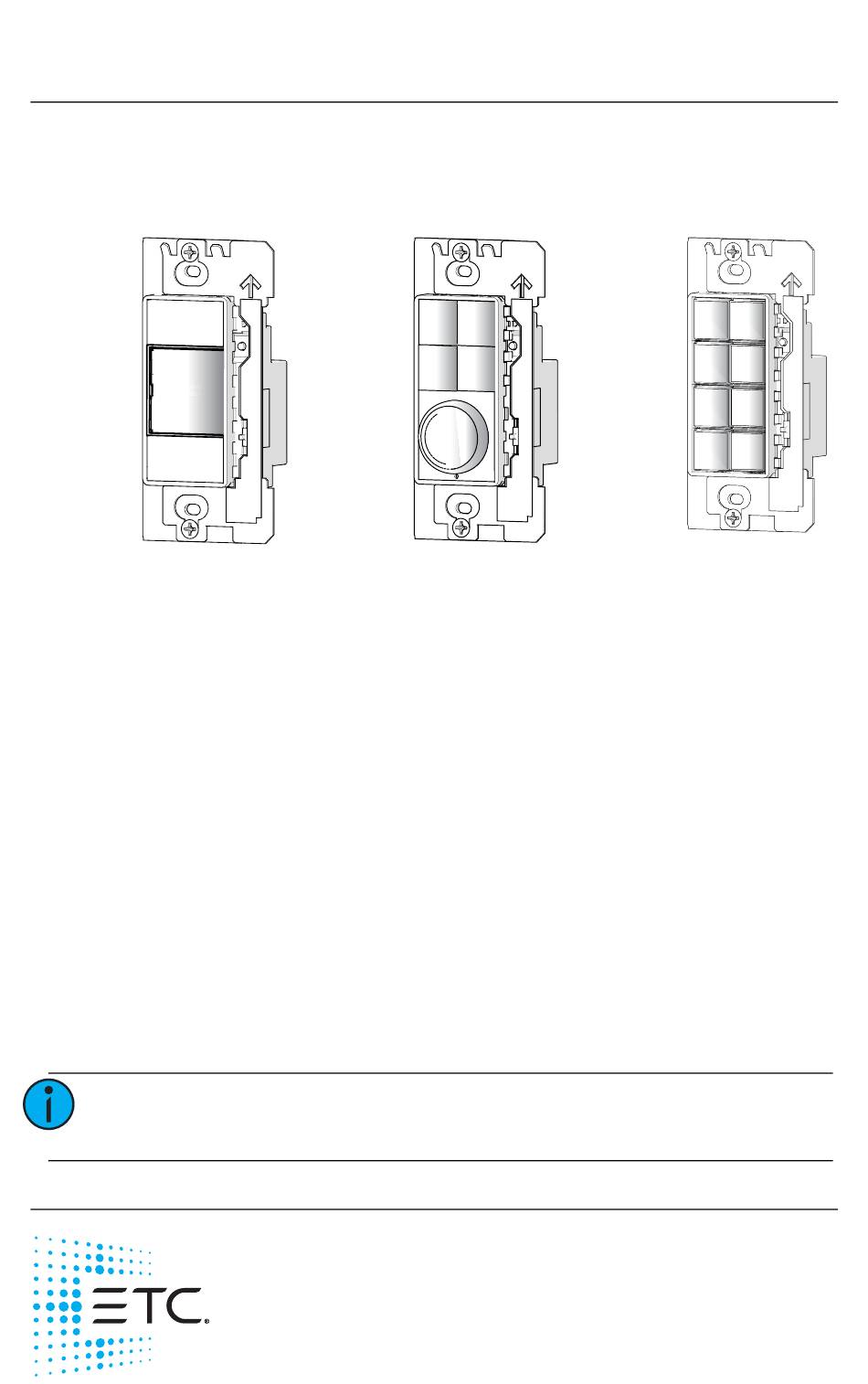

Stations are available in 1, 2, 4, 6, and 8 button assemblies, and a 4 button
with fader station. Station buttons are backlit by both blue and amber LEDs.
The 4 button with fader station knob is backlit with a blue LED.
Custom Configuration
This document guides you through the installation and local DIP switch setup
of the Echo Inspire station. For more detailed information about local
configuration options available for the Echo Inspire station, reference the
Echo Inspire Station Programming Guide.
For information about the custom configuration options available for the
Echo Inspire station using EchoAccess, reference the EchoAccess Mobile App
integrated help system. ETC's user documentation is available from our
website etcconnect.com.
®
Inspire
Note: To configure the Echo Inspire station using EchoAccess,
the station Function switch must be set to Custom.
Corporate Headquarters
Service (Americas)
London, UK
Tel +44 (0)20 8896 1000
Rome, IT
Tel +39 (06) 32 111 683
Holzkirchen, DE
Hong Kong
Tel +852 2799 1220
Web:
etcconnect.com
specifications subject to change.
7186M2140
Rev E
®
Station
etcconnect.com
Middleton, Wisconsin, USA
service@etcconnect.com
Service: (UK)
Service: (UK)

Tel +49 (80 24) 47 00-0
Service: (Asia)
© 2017 Electronic Theatre Controls, Inc.
ETC intends this document to be provided in its entirety.
Released 2017-09
®
control systems.
for related Inspire station
Tel +608 831 4116
service@etceurope.com
service@etceurope.com
Service: (DE)
techserv-hoki@etcconnect.com
service@etcasia.com
Product information and

Advertisement

Table of Contents
loading

Summary of Contents for ETC Unison Echo Inspire

  • Page 1 For information about the custom configuration options available for the Echo Inspire station using EchoAccess, reference the EchoAccess Mobile App integrated help system. ETC’s user documentation is available from our website etcconnect.com. Note: To configure the Echo Inspire station using EchoAccess, the station Function switch must be set to Custom.
  • Page 2: Prepare For Installation

    EchoConnect is a bidirectional protocol that uses one pair of wires (data+ and data-) for both data and power. ETC recommends using Belden 8471 (or approved equal) Class 2 wire. The total combined length of an EchoConnect wire run (using Belden 8471, or equal) may not exceed 1,640 feet (500m).
  • Page 3: Connect The Wiring

    ETC Installation Guide Inspire Station Note: When using Category5 (or equivalent) cable on the EchoConnect communication bus, please note the following: - Not all topologies are supported using Cat5; careful planning is required to ensure the proper termination kits are available and the wire is pulled appropriately.
  • Page 4: Rotary And Dip Switches

    ETC Installation Guide Inspire Station Rotary and DIP Switches Rotary and DIP switch settings are accessible on the rear of the station. Rotary Switch Assignments Two rotary switches on the rear panel of the station provide for space assignment and station address assignment.
  • Page 5: Station Configuration

    Reference the Echo Inspire Station Programming Guide for information about local settings on your Inspire station, including configuration, program and record mode, and station functionality. ETC’s user documentation is available for free download from our website etcconnect.com. Reference the EchoAccess Mobile App integrated help system for details about custom configuration using the EchoAccess.
  • Page 6: Install Button Legends

    Note: Customize and print your own button legends on standard transparency. Download the button legend template provided on the ETC website www.etcconnect.com. Each button can have a legend, installed beneath the button lens. To remove, install, or replace a button legend you must first remove the bezel and button lens from the station electronics.
  • Page 7: Install The Station Into The Back Box

    ETC Installation Guide Inspire Station Install the Station into the Back Box Receptacle spacers are provided to help align the station and cover flush against the wall in flush mount application. The spacers are not required when installing the station into a surface mount back box.
  • Page 8: Install The Wall Plate

    ETC Installation Guide Inspire Station Secure each station electronics in place using the two screws provided. If using spacers, insert the screws through the spacers as well. CAUTION: To improve successful station and wall plate installation, do not over tighten the screws. If screws are over tightened, button activation can be negatively impacted.
