ETC UHCI-4 Installation Manual

ETC Installation Guide
®
Unison Heritage Contact Station
Overview
The Unison Heritage Contact Station (model# UHCI-4) provides convenient
interface and integration to external devices such as photo cells, motion sensors,
fire alarm system, etc., by sending and receiving contact closures.

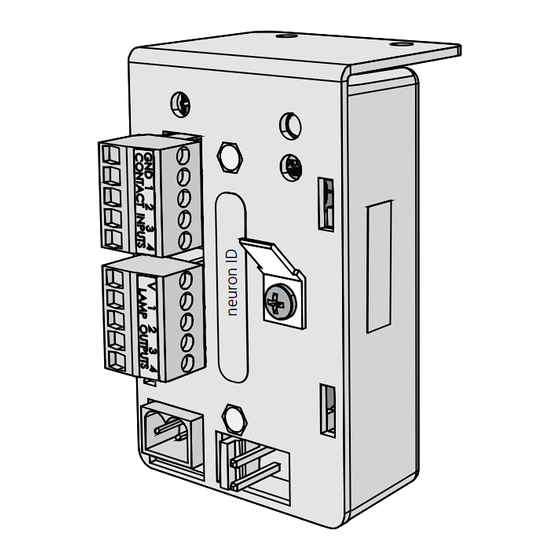

This station provides four contact (switch) input and four lamp output
connections. Closures are configurable for either maintained or momentary
operation.
Installation
The Contact Station ships with a termination kit for use with Belden 8471 (or equivalent wire), a
LinkConnect power pigtail, ground wire pigtail, receptacle spacers, and all required wire termination
connectors for installation.
Note:
Chase Enable / Disable
After powerup, when the station is unbound from the Paradigm Architectural Control Processor (P-ACP),
the contacts will cycle as indication to the user that the station is unbound.
If this chase behavior is undesired, remove the rear cover and slide the chase enable switch to the off
position.
Replace the cover and continue installation.
Corporate Headquarters
London, UK
Rome, IT
Holzkirchen, DE
Hong Kong
Web:
Product information and specifications subject to change. ETC intends this document to be provided in its entirety.
7181M2111
Installation should follow local codes and standard practices.
Slide switch Off to disable
chase behavior
