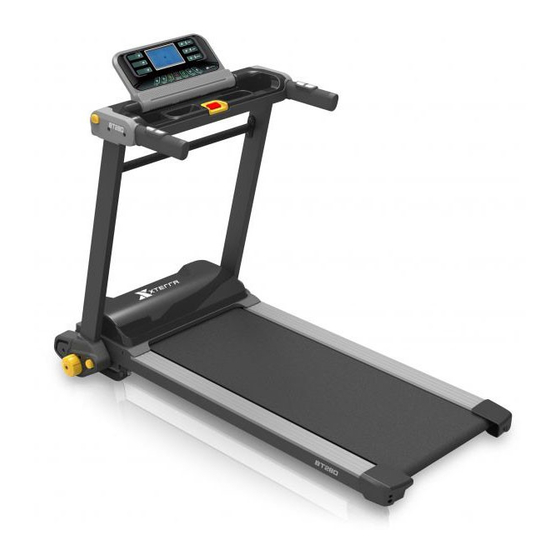

Xterra BT280 User Manual

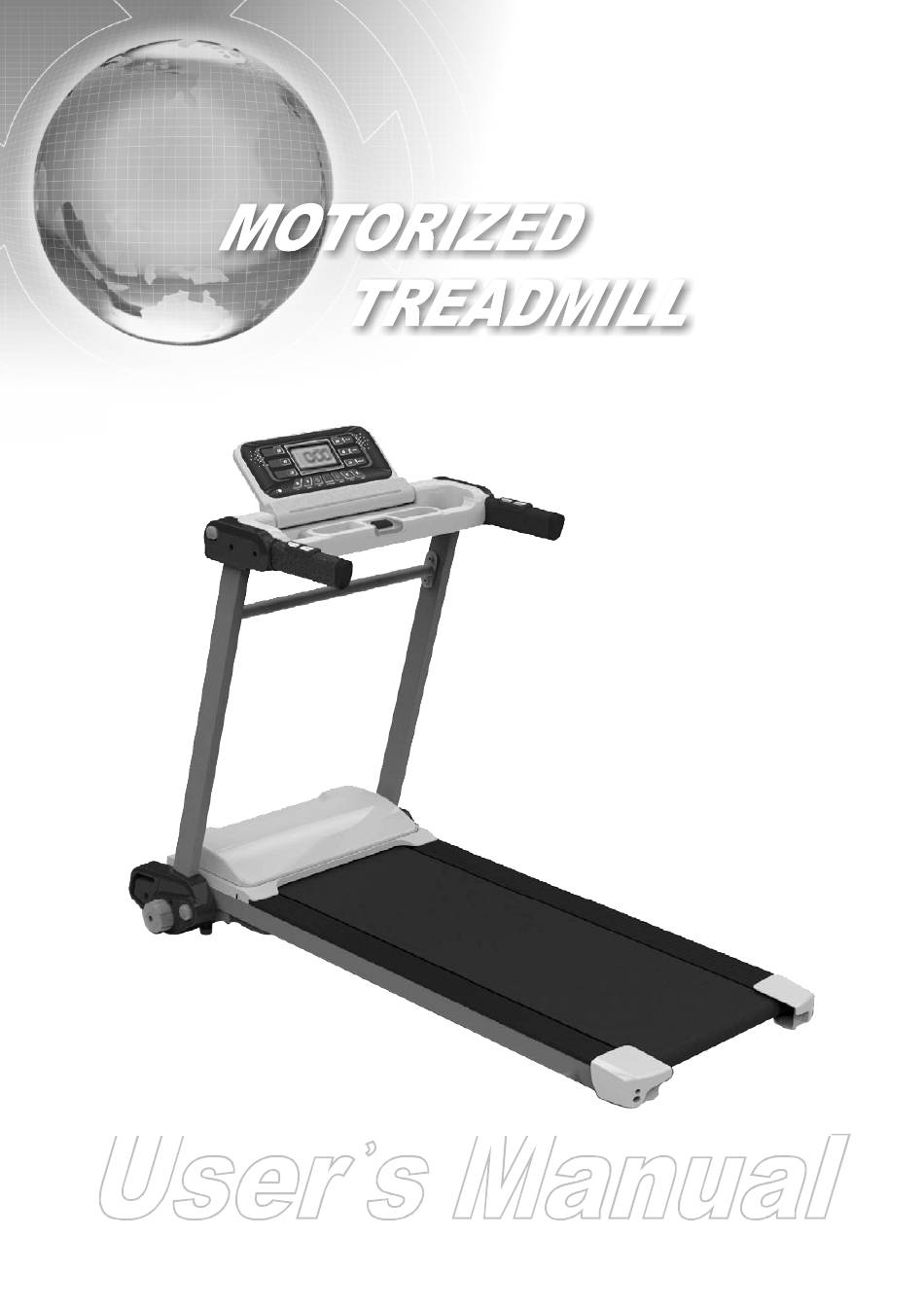

Motorized treamdill
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BT280 and is the answer not in the manual?

Questions and answers

Related Manuals for Xterra BT280

Summary of Contents for Xterra BT280

  • Page 2 SAFETY HINTS IMPORTANT: THIS UNIT IS INTENDED FOR HOUSEHOLD USE ONLY SAFETY PRECAUTIONS Your treadmill was designed and built for optimum safety. However, certain precautions apply whenever you use your treadmill. Be sure to read the manual before assembly and operation. Also, please note the following safety precautions: DANGER: To reduce the risk of electric shock, always unplug the treadmill from the electrical outlet immediately after using and before cleaning.

  • Page 3: Running Belt

    INTRODUCTION The treadmill has been designed and constructed to provide trouble free usage and enjoyable exercise. You can greatly improve your understanding and benefits of exercising by carefully reading the instructions given in this manual. Please familiarize yourself with the maintenance advice provided for you. SPECIFICATIONS Drive Motor: 1.5 HP •...
  • Page 4 ASSEMBLY PACK ASSEMBLY PACK CHECK LIST CHECK LIST #99. M5 × P0.8 × 12L #111. Lubricant (1 pc) Phillips Head Screw (2 pcs) #112. L Allen Wrench (1pc) #115. Short Phillips Head Screw Driver (1pc)
  • Page 5 ASSEMBLY ASSEMBLY Step 1. Place the treadmill on level ground. Step2. Install Front Frame Base Cover (L)(R) (37) and (38) on the treadmill and use Short Phillips Head Screw Driver (115) to tighten 2 pcs of M5 × P0.8 × 12L_Phillips Head Screw. NOTE: Please make sure all screw are tightened before moving to the next step.
  • Page 6 UNFOLDING FOLDING TRANSPORT Unfolding Procedure Step 1. Place the treadmill on level ground. Step 2: Press in the Release button (# 48), this will unlock the upright posts (# 3 & # 2). Start lifting the upright posts before depressing the Release button. Lift the upright posts in an upwards direction as shown by the arrows until the upright posts are fully upright.
  • Page 7 UNFOLDING FOLDING TRANSPORT Step 3. Press and hold the Release button (# 23). Start moving the console support (# 4) down in the direction of the arrow before depressing the Release button. You will hear a click sound once the console support has locked into place. You can then unfold the console display (# 26) into the open position.
  • Page 8 UNFOLDING FOLDING Folding Procedure TRANSPORT Step 1. Fold down the Console Assembly (26). Step 2. Press and hold the Release Button (# 23) and lift the Console Support (# 4) up until it locks in. You will hear a click sound when the Console Support is locked in..
  • Page 9 UNFOLDING FOLDING TRANSPORT Step 3. Press and turn Brake Tension Knob (#20) clockwise and lower the Uprights (# 3 & 2) as the arrow indicates to the fully down position. Step 4. Lift up the Main Frame (1) to fold up the treadmill.

  • Page 10: Computer Operation Instructions

    FUNCTIONS COMPUTER OPERATION INSTRUCTIONS Button Function A > “START/ STOP” Button Press this button to start the operation of the treadmill with the starting speed at 1.0 KPH. Press it again to stop the treadmill with the speed gradually slow down until full stop.
  • Page 11 FUNCTIONS G > “DOWN” Button 1. Press the "DOWM" button to decrease the incline until the proper incline. Hold this key for 3 seconds will quickly decrease the incline. 2. In setting mode,pressing "DOWM" button to change the parameter(decreases). H > “RAPID SPEED” Button Press quick buttons 3, 6 and 9(KPH) or WALK for low speed, JOG for medium speed and RUN for high speed, I >...
  • Page 12 FUNCTIONS HRC Program 1.This program is the heartbeat control program, please consult your physician or professional trainer before use. 2.Press MODE key to select HRC program, Program window will show H-1 then press SET key to change value settings (Time, Target heart rate, use SPEED FAST / SLOW or INCLINE UP / DOWN to adjust.) 3.Press START key to start training process with setting values.
  • Page 13 FUNCTIONS Calibration Mode In ready mode, pulling off the safety key, the display shows E0. Pressing and hold MODE key then putting on the safety key, the unit enters engineering mode. 1. Press SET key to change the set value (wheel size 46, minimum speed 1KM, maximum speed 16KM, incline level 12) 2.When finish setting, press SET key to enter calibration mode then press START key to run speed and incline calibration.
  • Page 14 BELT TRACKING ADJUSTMEANT If while using your treadmill you notice that the walking belt has moved to either the left or right side of the deck, you may need to adjust the running mat. Remove the "Safety Key" and unplug power cord from AC power source. If the running mat has moved to the left of the deck, please use M5 Allen wrench provided and turn the left rear roller adjustment bolt (as indicated above) clockwise no more the 1/4 of a turn.

  • Page 15: Treadmill Lubrication

    TREADMILL LUBRICATION Your treadmill should require little maintenance other then periodically applying lubricant. Lubricating under the treadbelt will ensure superior performance and extend its life expectancy. HOW TO CHECK TREADBELT FOR PROPER LUBRICATION? Lift one side of the treadbelt and feel the top surface of the treadboard. Try to feel towards the centre of the treadboard.
  • Page 16 AEROBIC EXERCISE Aerobic exercise is any sustained activity that sends oxygen to your muscles via your heart and lungs. Aerobic exercise improves the fitness of your lungs and heart - your body’s most important muscle. Aerobic exercise fitness is promoted by any activity that uses your large muscle -arms, legs, or buttock, for example.
  • Page 17 WARM UP Quadriceps Stretch With one hand against a wall for balance, reach behind you and pull your right foot up. Bring your heel as close to your buttocks as possible. Hold for 15 counts and repeat with left foot up. Inner Thigh Stretch Sit with the soles of your feet together with your knees pointing outward.
  • Page 18 OVERVIEW CHART...
  • Page 19 PARTS LIST DESCRIPTION Q'TY Main Frame Right Upright Left Upright Console Support Incline Bracket Upright Support Axle Sprung Latch Releasing Bracket Axle Handrail Support Brake Tension Knob Axle Rear Roller Cover Front Roller W/Pulley Rear Roller Motor Bracket Drive Motor Drive Belt Running Deck Running Belt...
  • Page 20 PARTS LIST DESCRIPTION Q'TY Handpulse Sensor (w/o wire) 41~1 1000m/m_Handpulse Wire 41~2 700m/m_Handpulse Wire Deck stopper (L) Deck stopper (L) Handgrip End Cap Motor Top Cover Frame Cover Handgrip Foam Release To Push A Button (Bottom) Rear Adjustment Base (L) Rear Adjustment Base (R) Adjustment Foot Pad Incline Motor...
  • Page 21 PARTS LIST DESCRIPTION Q'TY 3/8" × UNC16 × 3-1/2"_Hex Head Bolt 3/8" × UNC16 × 3/4"_Hex Head Bolt M8 × P1.25 × 60L_Hex Head Bolt M8 × P1.25 × 12L_Hex Head Bolt 1/4" × UNC20 × 60L_Socket Head Cap Bolt M5 ×...
  • Page 22 WARRANTY, SAFETY AND ASSEMBLY INFORMATION XTR0002 - Xterra BT280 IMPORTANT Please read and retain this manual as it will assist with identification for parts and service. ------------------------------------------------------------------------------------------------------------------------------ BOYLES FITNESS warrants their treadmill to be free from defects in material and workmanship under normal use and service conditions.
  • Page 23 BFE Warranty Policy – November 1 2013 & & /EKKZ ,KD KD^d/ h^ KE>z K^ EKd /DWKZd Ed & /EKZZd ^^D>z t/Z/E' EKd WARRANTY TERMS- Warranty commences from the date of purchase from the retail store. Warranty only applies to the original purchaser and is NON transferable.
  • Page 24 & & & & & W> ^ EKd & & ' W K > & & & > &...
