Installation Instructions
SH/Install/2016-09 Rev. 1
September 2016
Shafer SH-Series

Advertisement

loading
Need help?

Need help?

Do you have a question about the SH Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Emerson SH Series

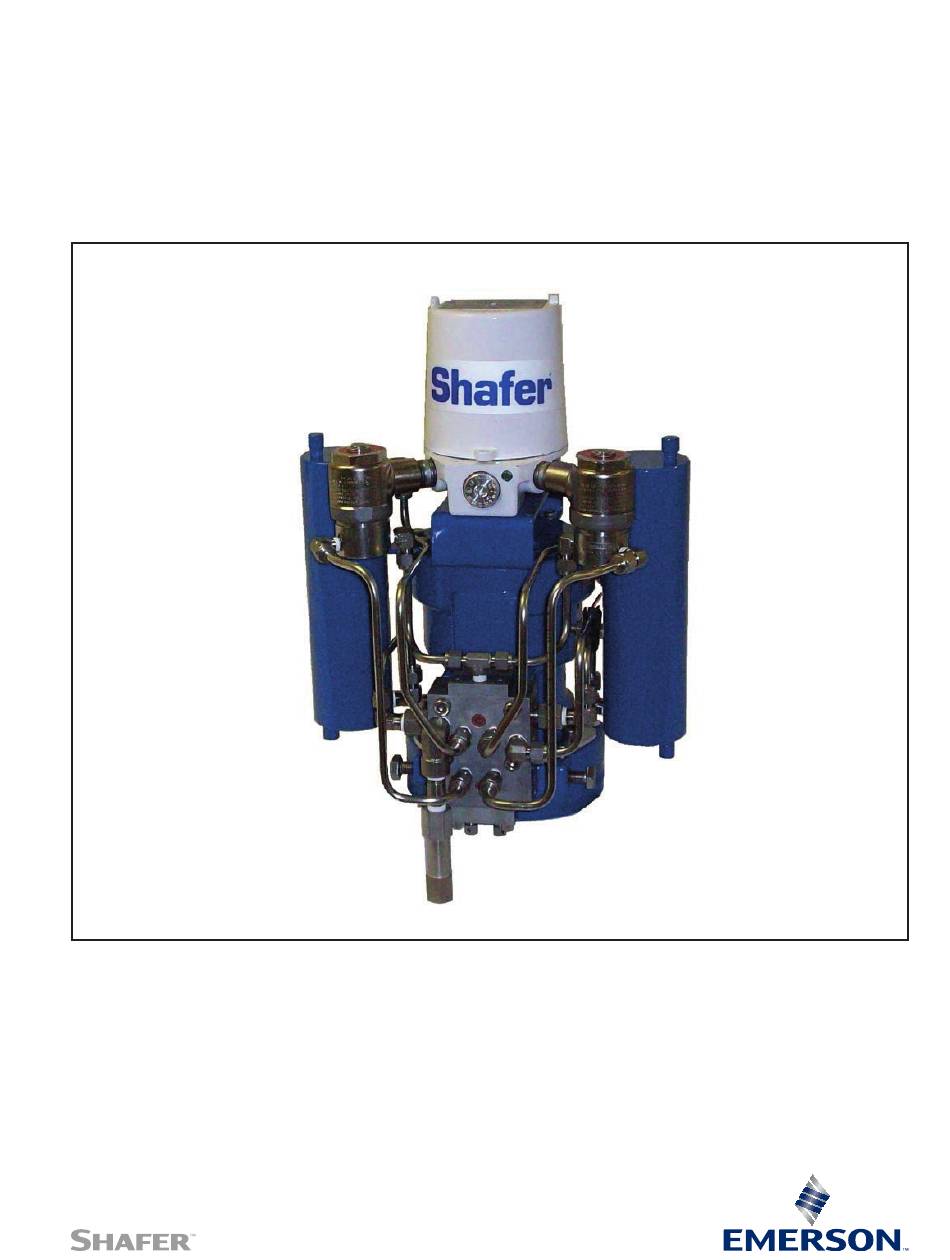

  • Page 1 Installation Instructions SH/Install/2016-09 Rev. 1 September 2016 Shafer SH-Series...
  • Page 3 Installation Instructions Table of Contents SH/Install/2016-09 Rev. 1 September 2016 Table of Contents Section 1: SH-Series Installed on Valve Section 2: Adaption Parts Section 3: Step by Step Installation on Valve Appendix A: List of Figures Table of Contents...
  • Page 4 Section 1: SH-Series Installed on Valve Installation Instructions September 2016 SH/Install/2016-09 Rev. 1 Section 1: SH-Series Installed on Valve Figure 1 SH-Series Installed on Valve Actuator/Controls Coupling Valve Mounting Bracket SH-Series Installed on Valve...
  • Page 5 Installation Instructions Section 2: Adaption Parts SH/Install/2016-09 Rev. 1 September 2016 Section 2: Adaption Parts Figure 2 Adaption Parts Adapter Angle Bearing Bearing Seal Flange Coupling Bracket Adaption Parts...
  • Page 6 Section 2: Adaption Parts Installation Instructions September 2016 SH/Install/2016-09 Rev. 1 Figure 3 Flange Top Part Overview: • Flange Top - Machined to fit actuator. Figure 4 Flange Bottom Adaption Parts...
  • Page 7 Installation Instructions Section 2: Adaption Parts SH/Install/2016-09 Rev. 1 September 2016 Part Overview: • Flange Bottom - Machined to bracket. Figure 5 Adapter Part Overview: • Adapter - Machined to fit coupling. Figure 6 Coupling Adaption Parts...
  • Page 8 Section 2: Adaption Parts Installation Instructions September 2016 SH/Install/2016-09 Rev. 1 Part Overview: • Coupling - Top machined to fit bottom of adapter, bottom machined to fit valve stem. Figure 7 Bracket Part Overview: • Bracket - Top machined to fit bottom of flange, bottom machined to fit valve. Adaption Parts...
  • Page 9 Section 3: Step by Step Installation on Valve Installation Instructions SH/Install/2016-09 Rev. 1 September 2016 Section 3: Step by Step Installation on Valve Figure 8 Installation of an SH-Series Actuator on Valve Step by Step Installation on Valve...
  • Page 10 Section 3: Step by Step Installation on Valve Installation Instructions September 2016 SH/Install/2016-09 Rev. 1 Figure 9 Mounting the Coupling on the Valve Stem Simulated valve stem and mounting position Determine orientation and mount the coupling on the valve stem. NOTE: Valve shown in open position.
  • Page 11 Section 3: Step by Step Installation on Valve Installation Instructions SH/Install/2016-09 Rev. 1 September 2016 Figure 10 Mounting the Actuator to the Coupling Handle is threaded so it can be removed for ease of assembly. With the actuator assembly supported by a proper means, work the bracket down over the handle until the bracket rests on the valve.
  • Page 12 Section 3: Step by Step Installation on Valve Installation Instructions September 2016 SH/Install/2016-09 Rev. 1 Figure 11 Fastening the Bracket using Head Cap Screws Socket Head Cap Screws Banana Washers Adjusting Screw, one on each side (not shown) 3/8” Diameter Hex Head Screws Fasten the bracket to the valve using the 3/8"...
  • Page 13 Section 3: Step by Step Installation on Valve Installation Instructions SH/Install/2016-09 Rev. 1 September 2016 Figure 12 Mounting the Actuator to the Adapter Adapter Angle Bearing Remove the 3/8” socket head cap screws and banana washers. Lift the actuator off the adapter, see illustration at the top. Now turn the bracket to line up the bolt holes and install the 3/8”...
  • Page 14 Section 3: Step by Step Installation on Valve Installation Instructions September 2016 SH/Install/2016-09 Rev. 1 Table 1. Adjustment Available Angle Adjustment +/- Size With Adapter With Screws SH - 4.5 /tooth SH - 9.0 /tooth SH - 18.0 /tooth Step by Step Installation on Valve...
  • Page 15 Installation Instructions Appendix SH/Install/2016-09 Rev. 1 September 2016 Appendix A: List of Figures Figure 1 SH-Series Installed on Valve ................... 1 Figure 2 Adaption Parts ...................... 2 Figure 3 Flange Top ......................3 Figure 4 Flange Bottom ...................... 3 Figure 5 Adapter .........................
  • Page 17 ©2017 Emerson. All rights reserved. F +65 6268 0028 Building #230 Székesfehérvár 8000 The Emerson logo is a trademark and service mark of Emerson Electric Co. No. 1 Lai Yuan Road Hungary Shafer is a mark of one of the Emerson family of companies.

This manual is also suitable for:

Sh-4.5Sh-18.0Sh-9.0
