TSL MPA1 Series Installation And Operation Manual

Audio monitoring range
Hide thumbs
Table of Contents

Advertisement

Quick Links

MPA1 Audio Monitoring Range
Installation and Operation Manual
Version 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MPA1 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TSL MPA1 Series

Summary of Contents for TSL MPA1 Series

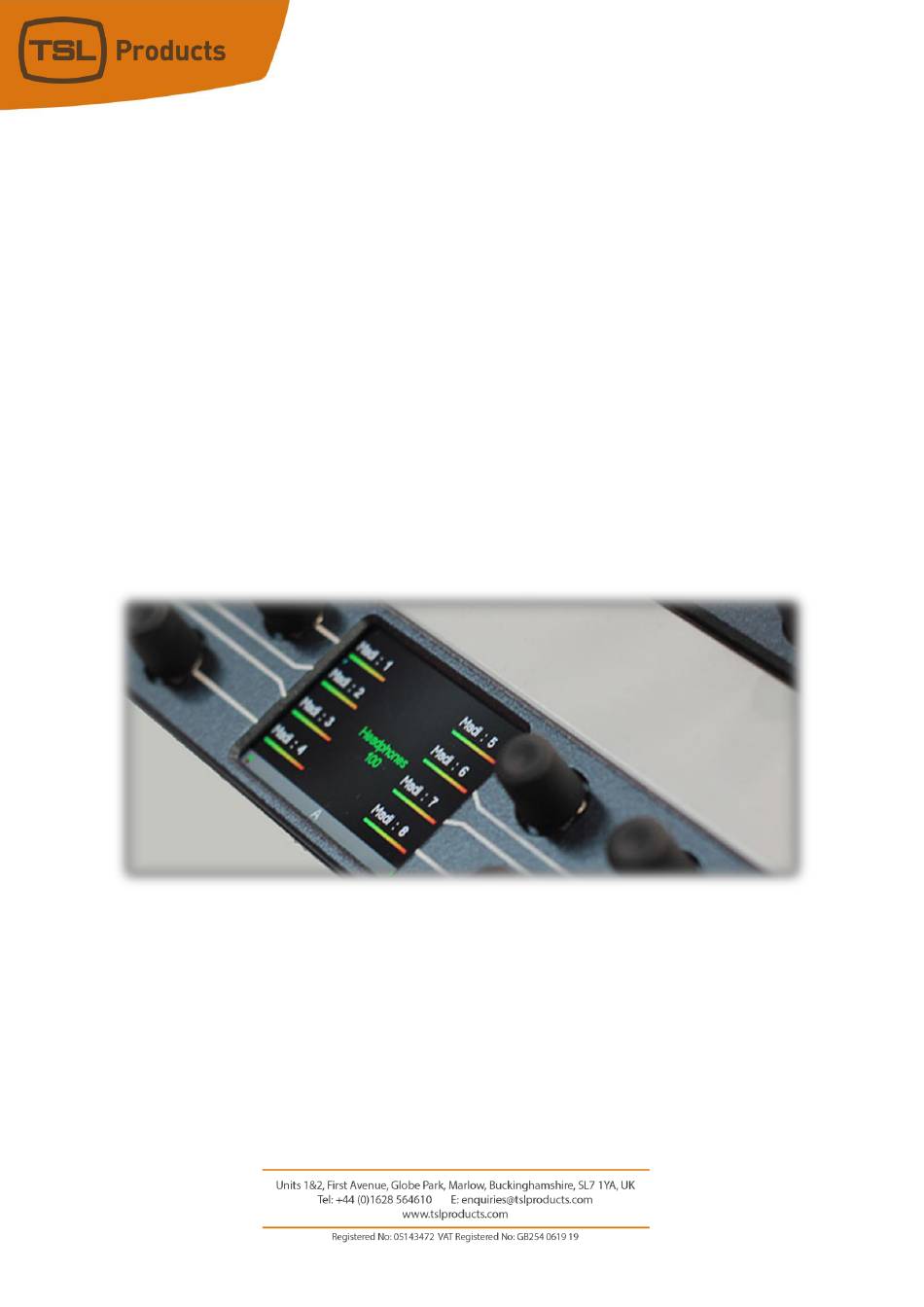

  • Page 1 MPA1 Audio Monitoring Range Installation and Operation Manual Version 1.0...
  • Page 2 Version History Issue Date Change Details 01/02/18 Preliminary Guide 05/10/18 Version 1.0 Page 2 of 72...

  • Page 3: Table Of Contents

    Contents Introduction ..............................5 MPA1-SOLO-SDI Installation ........................... 6 MPA1-SOLO-SDI Functional Schematic ......................7 MPA1-MIX-SDI Installation ..........................8 MPA1-MIX-SDI Functional Schematic ......................9 MPA1-SOLO-MADI Installation ........................10 MPA1-SOLO-MADI Functional Schematic .....................11 MPA1-MIX-MADI Installation ........................12 MPA1-MIX-MADI Functional Schematic .......................13 MPA1-SOLO-DANTE Installation ........................14 MPA1-SOLO-DANTE Functional Schematic ....................15 MPA1-MIX-DANTE Installation ........................16 MPA1-MIX-DANTE Functional Schematic .....................17 Initial Setup ..............................18...
  • Page 4 Page 4 of 72...

  • Page 5: Introduction

    Introduction The MPA1 Range of Audio Monitors provide high-quality confidence monitoring in a compact 1RU design. At just 100mm deep and less than 4kg, MPA1 Audio Monitors are ideally suited for environments where space and weight is a premium, such as OB Trucks and Flyaways. Designed for ease of use, all MPA1 Audio Monitors can be controlled directly from the front panel, or remotely over an Ethernet network using a suitable Web-Browser or control system using SNMP.

  • Page 6: Mpa1-Solo-Sdi Installation

    MPA1-SOLO-SDI Installation The MPA1 Audio Monitoring Range has been designed to be quick and easy to install, requiring minimal installation effort. Input and output connectivity for each MPA1 Model can be seen below: MPA1-SOLO-SDI Product Inputs Outputs Other MPA1-SOLO-SDI 2 x 3G/HD/SD-SDI 1 x 3G/HD/SD-SDI 1 x 1Gig/E Ethernet 1 x AES3 (75 ohm)

  • Page 7: Mpa1-Solo-Sdi Functional Schematic

    MPA1-SOLO-SDI Functional Schematic Page 7 of 72...

  • Page 8: Mpa1-Mix-Sdi Installation

    MPA1-MIX-SDI Installation The MPA1 Audio Monitoring Range has been designed to be quick and easy to install, requiring minimal installation effort. Input and output connectivity for each MPA1 Model can be seen below: MPA1-MIX-SDI Product Inputs Outputs Other MPA1-MIX-SDI 2 x 3G/HD/SD-SDI 1 x 3G/HD/SD-SDI 1 x 1Gig/E Ethernet 1 x AES3 (75 ohm)

  • Page 9: Mpa1-Mix-Sdi Functional Schematic

    MPA1-MIX-SDI Functional Schematic Page 9 of 72...

  • Page 10: Mpa1-Solo-Madi Installation

    MPA1-SOLO-MADI Installation MPA1-SOLO-MADI Product Inputs Outputs Other MPA1-SOLO-MADI 1 x MADI (75 ohm) 1 x MADI (75 ohm) 1 x 1Gig/E Ethernet 1 x MADI (SFP cage for reclocked Port (Management and optional SFP module) 2 x Analogue Outputs Control) 8 x Analogue Inputs (Balanced) 1 x USB Port (Software...

  • Page 11: Mpa1-Solo-Madi Functional Schematic

    MPA1-SOLO-MADI Functional Schematic Page 11 of 72...

  • Page 12: Mpa1-Mix-Madi Installation

    MPA1-MIX-MADI Installation MPA1-MIX-MADI Product Inputs Outputs Other MPA1-MIX-MADI 1 x MADI (75 ohm) 1 x MADI (75 ohm) 1 x 1Gig/E Ethernet 1 x MADI (SFP cage for reclocked Port (Management and optional SFP module) 2 x Analogue Outputs Control) 8 x Analogue Inputs (Balanced) 1 x USB Port (Software...

  • Page 13: Mpa1-Mix-Madi Functional Schematic

    MPA1-MIX-MADI Functional Schematic Page 13 of 72...

  • Page 14: Mpa1-Solo-Dante Installation

    MPA1-SOLO-DANTE Installation MPA1-SOLO-DANTE Product Inputs Outputs Other MPA1-SOLO-DANTE 1 x 1Gig/E Ethernet 1 x MADI (75 ohm) 1 x 1Gig/E Ethernet Port (Dante/AES67) reclocked Port (Management and 1 x MADI (75 ohm) 2 x Analogue Outputs Control) 1 x MADI (SFP cage for (Balanced) 1 x USB Port (Software optional SFP module)

  • Page 15: Mpa1-Solo-Dante Functional Schematic

    MPA1-SOLO-DANTE Functional Schematic Page 15 of 72...

  • Page 16: Mpa1-Mix-Dante Installation

    MPA1-MIX-DANTE Installation MPA1-MIX-DANTE Product Inputs Outputs Other MPA1-MIX-DANTE 1 x 1Gig/E Ethernet 1 x MADI (75 ohm) 1 x 1Gig/E Ethernet Port (Dante/AES67) reclocked Port (Management and 1 x MADI (75 ohm) 2 x Analogue Outputs Control) 1 x MADI (SFP cage for (Balanced) 1 x USB Port (Software optional SFP module)

  • Page 17: Mpa1-Mix-Dante Functional Schematic

    MPA1-MIX-DANTE Functional Schematic Page 17 of 72...

  • Page 18: Initial Setup

    Initial Setup TSL Products recommends connecting your MPA1 Audio Monitor to an Ethernet network during initial set- up and configuration. Full configuration of your MPA1 Audio Monitor can be achieved by way of a suitable Client PC and Web- browser.

  • Page 19: Accessing The Webpage Of Your Mpa1

    Accessing the Webpage of your MPA1 Configuring your MPA1 Audio Monitor using a Client PC and Web-Browser With your MPA1 connected to an Ethernet network, you can remotely control and configure your MPA1 using a Client PC and Web-Browser. The MPA1 Webpage allows you to optimise your MPA1 for your environment and the workflow you need to support.

  • Page 20: Mpa1-Solo-Sdi Webpage

    MPA1-SOLO-SDI Webpage Clicking on the LIVE VIEW Tab of the MPA1-SOLO-SDI Webpage displays the following: Element Function Notes Switch to Mute Headphone Output Red when Muted, Grey when Active Headphone Output Level adjustment Adjust as required Switch to Mute the Loudspeaker Output Red when Muted, Grey when Active Loudspeaker Output Level adjustment Adjust as required...
  • Page 21 Clicking on the NAMES Tab of the MPA1-SOLO-SDI Webpage displays the following: Element Function Notes Input Active Buttons Allows unused inputs to be hidden from the Operator Input Names Allows friendly names to be applied to SDI 1, SDI 2 and AES/Analog Input Groups Channel Names Allows friendly names to be applied to all 16 Embedded Audio Channels belonging to SDI 1...
  • Page 22 Clicking on the CONFIGURATION Tab of the MPA1-SOLO-SDI Webpage displays the following: Element Function Notes Local Config Enables/Disables configuration from the front panel of the MPA1-SOLO-SDI Line Output Level Sets the Output Level of the Balanced Line Level Outputs on the MPA1-SOLO-SDI Screen Brightness Sets the Brightness Level of the front panel display...
  • Page 23 Clicking on the NETWORK SETTINGS Tab of the MPA1-SOLO-SDI Webpage displays the following: Element Function Notes DHCP Enables/Disables DHCP Mode IP Address Displays current IP Address and allows new IP Address to be entered. Subnet Mask Displays current Subnet Mask and allows new Subnet Mask to be entered.

  • Page 24: Mpa1-Solo-Madi Web Page

    MPA1-SOLO-MADI Web Page Clicking on the LIVE VIEW Tab of the MPA1-SOLO-MADI Webpage displays the following: Element Function Notes Switch to Mute Headphone Output Red when Muted, Grey when Active Headphone Output Level adjustment Adjust as required Displayed Channel Drop down list allowing Input selection of MADI Sources 1-64 and Analog Sources 1-8.
  • Page 25 Clicking on the NAMES Tab of the MPA1-SOLO-MADI Webpage displays the following: … Element Function Notes MADI/Analogue Channel Number Source Channel Names Allows friendly names to be applied to MADI Channels 1-64 and Analogue Channels 1-8* * Please note that the Auto Naming function is fixed to NO on the MP1-SOLO-MADI Page 25 of 72...
  • Page 26 Clicking on the CONFIGURATION Tab of the MPA1-SOLO-MADI Webpage displays the following: Element Function Notes Local Config Enables/Disables configuration from the front panel of the MPA1-SOLO-MADI Line Output Level Sets the Output Level of the Balanced Line Level Outputs on the MPA1-SOLO-MADI Screen Brightness Sets the Brightness Level of the front panel display...
  • Page 27 Clicking on the NETWORK SETTINGS Tab of the MPA1-SOLO-MADI Webpage displays the following: Element Function Notes DHCP Enables/Disables DHCP Mode IP Address Displays current IP Address and allows new IP Address to be entered. Subnet Mask Displays current Subnet Mask and allows new Subnet Mask to be entered.

  • Page 28: Mpa1-Solo-Dante Web Page

    MPA1-SOLO-DANTE Web Page Clicking on the LIVE VIEW Tab of the MPA1-SOLO-DANTE Webpage displays the following: Element Function Notes Switch to Mute Headphone Output Red when Muted, Grey when Active Headphone Output Level adjustment Adjust as required Displayed Channel Drop down list allowing Input selection of DANTE Sources 1-64 and MADI Sources 1-64 Source Name Displays friendly name of selected source as...
  • Page 29 Clicking on the NAMES Tab of the MPA1-SOLO-DANTE Webpage displays the following: … Element Function Notes DANTE/MADI Channel Number Source Channel Names Allows friendly names to be applied to DANTE Channels 1-64 and MADI Channels 1-64* * Please note that the Auto Naming function is fixed to NO on the MP1-SOLO-MADI for MADI Sources.
  • Page 30 Element Function Notes Local Config Enables/Disables configuration from the front panel of the MPA1-SOLO-DANTE Line Output Level Sets the Output Level of the Balanced Line Level Outputs on the MPA1-SOLO-DANTE Screen Brightness Sets the Brightness Level of the front panel display Line Output Mode Determines behaviour of Balanced Line Level...
  • Page 31 Element Function Notes DHCP Enables/Disables DHCP Mode IP Address Displays current IP Address and allows new IP Address to be entered. Subnet Mask Displays current Subnet Mask and allows new Subnet Mask to be entered. Gateway Address Displays current Gateway Address and allows new Gateway Address to be entered.

  • Page 32: Mpa1-Mix-Sdi Web Page

    MPA1-MIX-SDI Web Page Clicking on the LIVE VIEW Tab of the MPA1-MIX-SDI Webpage displays the following: Element Function Notes Switch to Mute Headphone Output Red when Muted, Grey when Active Headphone Output Level adjustment Adjust as required Switch to Mute the Loudspeaker Output Red when Muted, Grey when Active Loudspeaker Output Level adjustment Adjust as required...
  • Page 33 Clicking on the ROUTING Tab of the MPA1-MIX-SDI Webpage displays the following: … Element Function Notes Mix Bank Identifier Identifies one of the 16 Mix Banks (A-P) Channel Number Channel number of source contributing to Mix Bank (1-8) Audio Channel Gain Preset Allows +20dB, +10db, 0dB, -10dB or -20dB to be applied to Audio Channel Input Stereo/Mono Switch...
  • Page 34 Clicking on the NAMES Tab of the MPA1-MIX-SDI Webpage displays the following: … … … Page 34 of 72...
  • Page 35 Element Function Notes Mix Bank Identifier Identifies one of the 16 Mix Banks (A-P) Active Switch Determines which MIX Banks are available for selection on the front panel of the MPA1-MIX- SDI. Video Switch Determines which SDI Video Source is displayed on the front panel, reclocked SDI Output and HDMI Output for each MIX Bank Mix Bank Name...
  • Page 36 Clicking on the CONFIGURATION Tab of the MPA1-MIX-SDI Webpage displays the following: Element Function Notes Channel Knob Push Enables/Disables ‘Push to Mute’ function of Channel Rotary Encoders on front panel of MPA1-MIX-SDI Channel Knob Push and Rotate Determines ‘Push and Rotate’ behaviour of Channel Rotary Encoders on the front panel of the MPA1-MIX-SDI.
  • Page 37 Screen Brightness Sets the Brightness Level of the front panel display Loudspeaker Mode Determines behaviour Internal Loudspeakers upon insertion of Headphones Page 37 of 72...
  • Page 38 Clicking on the NETWORK SETTINGS Tab of the MPA1-MIX-SDI Webpage displays the following: Element Function Notes DHCP Enables/Disables DHCP Mode IP Address Displays current IP Address and allows new IP Address to be entered. Subnet Mask Displays current Subnet Mask and allows new Subnet Mask to be entered.

  • Page 39: Mpa1-Mix-Madi Web Page

    MPA1-MIX-MADI Web Page Clicking on the LIVE VIEW Tab of the MPA1-MIX-MADI Webpage displays the following: Element Function Notes Switch to Mute Headphone Output Red when Muted, Grey when Active Headphone Output Level adjustment Adjust as required Switch to Mute the Loudspeaker Output Red when Muted, Grey when Active Loudspeaker Output Level adjustment Adjust as required...
  • Page 40 Clicking on the ROUTING Tab of the MPA1-MIX-MADI Webpage displays the following: … Element Function Notes Mix Bank Identifier Identifies one of the 16 Mix Banks (A-P) Channel Number Channel number of source contributing to Mix Bank (1-8) Audio Channel Gain Preset Allows +20dB, +10db, 0dB, -10dB or -20dB to be applied to Audio Channel Input Stereo/Mono Switch...
  • Page 41 Clicking on the NAMES Tab of the MPA1-MIX-MADI Webpage displays the following: … … … Page 41 of 72...
  • Page 42 Element Function Notes Mix Bank Identifier Identifies one of the 16 Mix Banks (A-P) Active Switch Determines which MIX Banks are available for selection on the front panel of the MPA1-MIX- SDI. Video Switch Determines which SDI Video Source is displayed on the front panel, reclocked SDI Output and HDMI Output for each MIX Bank Mix Bank Name...
  • Page 43 Clicking on the CONFIGURATION Tab of the MPA1-MIX-MADI Webpage displays the following: Element Function Notes Channel Knob Push Enables/Disables ‘Push to Mute’ function of Channel Rotary Encoders on front panel of MPA1-MIX-MADI Channel Knob Push and Rotate Determines ‘Push and Rotate’ behaviour of Channel Rotary Encoders on the front panel of the MPA1-MIX-MADI.
  • Page 44 Group Select Knob Rotate Determines whether Group Select Knob is Enabled/Disabled. Selecting Group allows Mix Groups to be selected from the front panel of the MPA-MIX-MADI, whilst selecting Volume allows level adjustment on the Internal Loudspeakers and Balanced Line Level Outputs.
  • Page 45 Clicking on the NETWORK SETUP Tab of the MPA1-MIX-MADI Webpage displays the following: Element Function Notes DHCP Enables/Disables DHCP Mode IP Address Displays current IP Address and allows new IP Address to be entered. Subnet Mask Displays current Subnet Mask and allows new Subnet Mask to be entered.

  • Page 46: Mpa1-Mix-Dante Web Page

    MPA1-MIX-DANTE Web Page Clicking on the LIVE VIEW Tab of the MPA1-MIX-DANTE Webpage displays the following: Element Function Notes Switch to Mute Headphone Output Red when Muted, Grey when Active Headphone Output Level adjustment Adjust as required Switch to Mute the Loudspeaker Output Red when Muted, Grey when Active Loudspeaker Output Level adjustment Adjust as required...
  • Page 47 Clicking on the ROUTING Tab of the MPA1-MIX-DANTE Webpage displays the following: … Page 47 of 72...
  • Page 48 Clicking on the NAMES Tab of the MPA1-MIX-DANTE Webpage displays the following: … … … Page 48 of 72...
  • Page 49 Element Function Notes Mix Bank Identifier Identifies one of the 16 Mix Banks (A-P) Active Switch Determines which MIX Banks are available for selection on the front panel of the MPA1-MIX- SDI. Video Switch Determines which SDI Video Source is displayed on the front panel, reclocked SDI Output and HDMI Output for each MIX Bank Mix Bank Name...
  • Page 50 Clicking on the CONFIGURATION Tab of the MPA1-MIX-DANTE Webpage displays the following: Element Function Notes Channel Knob Push Enables/Disables ‘Push to Mute’ function of Channel Rotary Encoders on front panel of MPA1-MIX-DANTE Channel Knob Push and Rotate Determines ‘Push and Rotate’ behaviour of Channel Rotary Encoders on the front panel of the MPA1-MIX-DANTe.
  • Page 51 Group Select Knob Rotate Determines whether Group Select Knob is Enabled/Disabled. Selecting Group allows Mix Groups to be selected from the front panel of the MPA-MIX-MADI, whilst selecting Volume allows level adjustment on the Internal Loudspeakers and Balanced Line Level Outputs.
  • Page 52 Clicking on the NETWORK SETUP Tab of the MPA1-MIX-DANTE Webpage displays the following: Element Function Notes DHCP Enables/Disables DHCP Mode IP Address Displays current IP Address and allows new IP Address to be entered. Subnet Mask Displays current Subnet Mask and allows new Subnet Mask to be entered.

  • Page 53: Operation

    Operation The MPA1 Range has been designed to provide quick and easy selection of any desired audio source in an intuitive manner that requires little in the way of training. One of the key benefits of the MPA1 is the ability to personalise or tailor its configuration and behaviour to suit a specific workflow, application or environment If the behaviour or configuration of your MPA1 is not as expected or required, please check the configuration and settings made in the webpage belonging to your MPA1.

  • Page 54: Mpa1-Solo-Sdi Operation

    MPA1-SOLO-SDI Operation The front panel of the MPA1-SOLO-SDI is equipped with four rotary controllers as follows: Encoder Function Notes Headphone Volume Rotate to adjust Headphone level as required. PUSH to MUTE/UNMUTE currently selected audio source. Output Volume Rotate to adjust the Audio Level of the Internal Loudspeakers and/or Balanced Analogue Audio Outputs.

  • Page 55: Mpa1-Solo-Madi Operation

    MPA1-SOLO-MADI Operation The front panel of the MPA1-SOLO-MADI is equipped with four rotary controllers as follows: Encoder Function Notes Headphone Volume Rotate to adjust Headphone level as required. PUSH to MUTE/UNMUTE currently selected audio source. Output Volume Rotate to adjust the Audio Level of the Internal Loudspeakers and/or Balanced Analogue Audio Outputs.

  • Page 56: Mpa1-Solo-Dante Operation

    MPA1-SOLO-DANTE Operation The front panel of the MPA1-SOLO-DANTE is equipped with four rotary controllers as follows: Encoder Function Notes Headphone Volume Rotate to adjust Headphone level as required. PUSH to MUTE/UNMUTE currently selected audio source. Output Volume Rotate to adjust the Audio Level of the Internal Loudspeakers and/or Balanced Analogue Audio Outputs.

  • Page 57: Mpa1-Mix-Sdi Operation

    MPA1-MIX-SDI Operation The front panel of the MPA1-MIX-SDI is equipped with ten rotary controllers as follows: Encoder Function Notes Audio Level Rotate to adjust relative contribution of Sources 1-8 to Stereo Monitoring Mix. NOTE: Sources available are determined by the currently selected Mix Bank (A-P) and the contributing audio channels for each Mix Bank as set in the Routing Tab of the MPA-MIX-SDI.
  • Page 58 The Select Menu Encoder is also used to access the Settings Menu of the MPA-MIX-SDI. Further information can be found in the Initial Setup chapter found on Page 17 of this manual. Page 58 of 72...

  • Page 59: Mpa1-Mix-Madi Operation

    MPA1-MIX-MADI Operation The front panel of the MPA1-MIX-MADI is equipped with ten rotary controllers as follows: Encoder Function Notes Audio Level Rotate to adjust relative contribution of Sources 1-8 to Stereo Monitoring Mix. NOTE: Sources available are determined by the currently selected Mix Bank (A-P) and the contributing audio channels for each Mix Bank as set in the Routing Tab of the MPA-MIX-MADI.
  • Page 60 The Select Menu Encoder is also used to access the Settings Menu of the MPA-MIX-MADI. Further information can be found in the Initial Setup chapter found on Page 17 of this manual. Page 60 of 72...

  • Page 61: Mpa1-Mix-Dante Operation

    MPA1-MIX-DANTE Operation The front panel of the MPA1-MIX-DANTE is equipped with ten rotary controllers as follows: Encoder Function Notes Audio Level Rotate to adjust relative contribution of Sources 1-8 to Stereo Monitoring Mix. NOTE: Sources available are determined by the currently selected Mix Bank (A-P) and the contributing audio channels for each Mix Bank as set in the Routing Tab of the MPA-MIX-SDI.
  • Page 62 The Select Menu Encoder is also used to access the Settings Menu of the MPA-MIX-SDI. Further information can be found in the Initial Setup chapter found on Page 17 of this manual. Page 62 of 72...

  • Page 63: Mpa1-Solo-Sdi Front Panel Display

    MPA1-SOLO-SDI Front Panel Display Page 63 of 72...
  • Page 64 Display Function Notes Channel Label Label displaying Channel friendly name. NOTE: Friendly names can be entered in the Channel Names section displayed within the Names Tab of the MPA1-MIX-MADI Webpage. See Page 40 of this manual for further information. Audio Level Meters Displays Audio Level of associated Source Channel Gain Bar Display Level of Channel contribution to Stereo Monitoring Mix.

  • Page 65: Mpa1-Mix-Sdi Front Panel Display

    MPA1-MIX-SDI Front Panel Display Display Function Notes Channel Label Label displaying Channel friendly name. NOTE: Friendly names can be entered in the Channel Names section displayed within the Names Tab of the MPA1-MIX-MADI Webpage. See Page 40 of this manual for further information. Audio Level Meters Displays Audio Level of associated Source Channel Gain Bar Display...

  • Page 66: Mpa1-Solo-Madi Front Panel Display

    MPA1-SOLO-MADI Front Panel Display Page 66 of 72...
  • Page 67 Display Function Notes Channel Label Label displaying Channel friendly name. NOTE: Friendly names can be entered in the Channel Names section displayed within the Names Tab of the MPA1-MIX-MADI Webpage. See Page 40 of this manual for further information. Audio Level Meters Displays Audio Level of associated Source Channel Gain Bar Display Level of Channel contribution to Stereo Monitoring Mix.

  • Page 68: Mpa1-Mix-Madi Front Panel Display

    MPA1-MIX-MADI Front Panel Display Display Function Notes Channel Label Label displaying Channel friendly name. NOTE: Friendly names can be entered in the Channel Names section displayed within the Names Tab of the MPA1-MIX-MADI Webpage. See Page 40 of this manual for further information. Audio Level Meters Displays Audio Level of associated Source Channel Gain Bar Display...

  • Page 69: Mpa1-Solo-Dante Front Panel Display

    MPA1-SOLO-DANTE Front Panel Display Page 69 of 72...
  • Page 70 Display Function Notes Channel Label Label displaying Channel friendly name. NOTE: Friendly names can be entered in the Channel Names section displayed within the Names Tab of the MPA1-MIX-MADI Webpage. See Page 40 of this manual for further information. Audio Level Meters Displays Audio Level of associated Source Channel Gain Bar Display Level of Channel contribution to Stereo Monitoring Mix.

  • Page 71: Mpa1-Mix-Dante Front Panel Display

    MPA1-MIX-DANTE Front Panel Display Display Function Notes Channel Label Label displaying Channel friendly name. NOTE: Friendly names for MADI and DANTE sources can be entered in the Channel Names section displayed within the Names Tab of the MPA1-MIX-DANTE Webpage. Friendly names for DANTE sources can also be derived from the DANTE Network when set to AUTO.
  • Page 72 Mix Bank Name Label displaying friendly name of currently selected Mix Bank. NOTE: Friendly names can be entered in the Group Names section displayed within the Names Tab of the MPA1-MIX- MADI Webpage. See Page 47 of this manual for further information Page 72 of 72...

This manual is also suitable for:

Mpa1-solo-madiMpa1-solo-sdiMpa1-mix-danteMpa1-mix-madiMpa1-solo-danteMpa1-mix-sdi
