STIEBEL ELTRON PSH 30 Si Operation And Installation

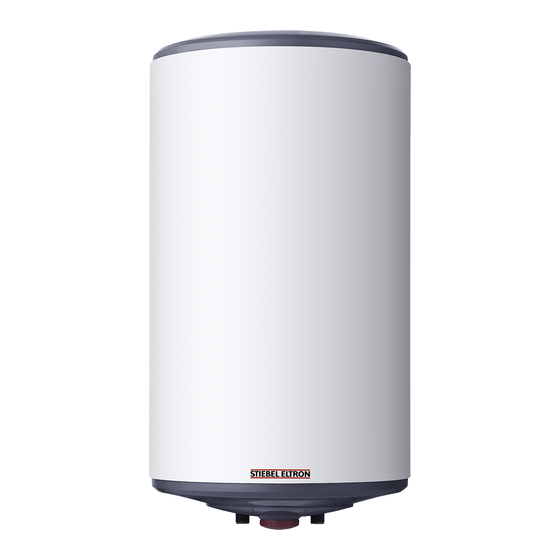

Unvented (pressurized) wallmounted water heater
Hide thumbs
Also See for PSH 30 Si:
- Instructions for use and installation (30 pages) ,
- Operation and installation manual (60 pages)
Table of Contents
Advertisement
OPERATION AND INSTALLATION
OBSŁUGA I INSTALACJA
OBSLUHA A INSTALACE
ЭКСПЛУАТАЦИЯ И МОНТАЖ
ОБСЛУЖВАНЕ И ИНСТАЛИРАНЕ
HASZNÁLATI ÉS TELEPÍTÉSI ÚTMUTATÓ
Unvented (pressurized) wallmounted water heater | Ciśnieniowy, pojemnościowy
Накопительный
ogrzewacz wody | Tlakové elektrické zásobnÍky teplé vody|
настенный водонагреватель эакрытого типа
Обемен бойлер за монтаж на стена,
|
работещ под налягане | Falra függeszthető melegvíz-tároló
» PSH 30 Si
» PSH 50 Si
» PSH 75 Si
» PSH 100 Si
» PSH 120 Si
» PSH 150 Si
Advertisement
Table of Contents
Related Manuals for STIEBEL ELTRON PSH 30 Si
Summary of Contents for STIEBEL ELTRON PSH 30 Si
- Page 1 | Tlakové elektrické zásobnÍky teplé vody| настенный водонагреватель эакрытого типа Обемен бойлер за монтаж на стена, работещ под налягане | Falra függeszthető melegvíz-tároló » PSH 30 Si » PSH 50 Si » PSH 75 Si » PSH 100 Si »...
- Page 2 Please read carefully (EN) WARNINGS: This device is not intended for use by persons (including children) with physical, sensory or mental disability, or by persons lacking experience or knowledge, unless they have received from a person in charge of their safety adequate supervision or preliminary instructions on how to use the device.
-
Page 3: Table Of Contents
Contents | Operation General information General information OPERATION General information �����������������������������������������5 The chapter Operation is intended for users and contractors. Key ������������������������������������������������������������������ 5 The chapter Installation is intended for contractors. Safety ����������������������������������������������������������5 Correct use �������������������������������������������������������� 5 Please read carefully. Safety instructions ����������������������������������������������� 6 Read these instructions carefully and retain for future CE designation ���������������������������������������������������... -
Page 4: Operation
Operation Appliance description Adjustment options Observation of these instructions is also part of the correct use of this appliance. 4.2.1 Temperature adjustment PSH 30-50 Si Safety instructions Observe the following safety information and instructions. All steps up to the commissioning of this appliance must only be carried out by qualified contractors. -
Page 5: Recommended Settings
Operation Cleaning, care and maintenance must be turned to the required position (position 5 corresponds Have a contractor regularly check the appliance and to approximately 62 °C). safety valve. Recommended settings Danger to life through electrocution! Maintenance work, such as checking the electrical 4.3.1 Water temperature safety, must only be carried out by a qualified contractor. -
Page 6: Safety
Installation Safety Safety Use only original spare parts. Installation Country-specific safety information Installation conditions Observe the country-specific instructions and regulations regar- The appliance is intended for installation in a room free from the ding the water and power connection. risk of frost, near the main draw-off point. Installation outside a building is not permissible. -
Page 7: Assembly
Installation Assembly 10. Assembly 10.1 Appliance assembly 10.1.1 Appliance installation When installing the appliance, select securing materials to suit the stability of the wall. For the position of the screws required for the installation, see the diagram in chapter „Specification“. When drilling, note that supply cables/water lines and ducts may run in the wall. -
Page 8: Installation Of Accessories
11. Commissioning routed and connected inside the appliance. The contractor must carry out and monitor commissioning and PSH 30 Si the initial heat-up. Subject to appliance size and set temperature, PSH 50 Si this can take several hours. -
Page 9: Taking The Appliance Out Of Use
Installation Appliance handover 11.3 Taking the appliance out of use If you ever want to take the appliance out of use, carry out the following steps: f Isolate the appliance from the power supply. f Close the cold water inlet. f Drain the appliance. -
Page 10: Specification
Installation Specification 15. Specification 15.1 Diagram with dimensions PSH 75-150 Si: PSH 30-50 Si: PSH 30 Si PSH 50 Si PSH 75 Si PSH 100 Si PSH 120 Si PSH 150 Si Appliance Height 1046 1241 Entry electrical cables Cold water inlet... -
Page 11: Specification
Installation | Warranty | Environment and recycling Specification 15.2 Specification PSH 30 Si PSH 50 Si PSH 75 Si PSH 100 Si PSH 120 Si PSH 150 Si 074478 074479 236650 074481 074482 074483 Electrical details Connected load with ~ 230 V... - Page 12 Deutschland Verkauf Tel. 05531 702-110 | Fax 05531 702-95108 | info-center@stiebel-eltron.de STIEBEL ELTRON GmbH & Co. KG Kundendienst Tel. 05531 702-111 | Fax 05531 702-95890 | kundendienst@stiebel-eltron.de Dr.-Stiebel-Straße 33 | 37603 Holzminden Ersatzteilverkauf Tel. 05531 702-120 | Fax 05531 702-95335 | ersatzteile@stiebel-eltron.de Tel.
