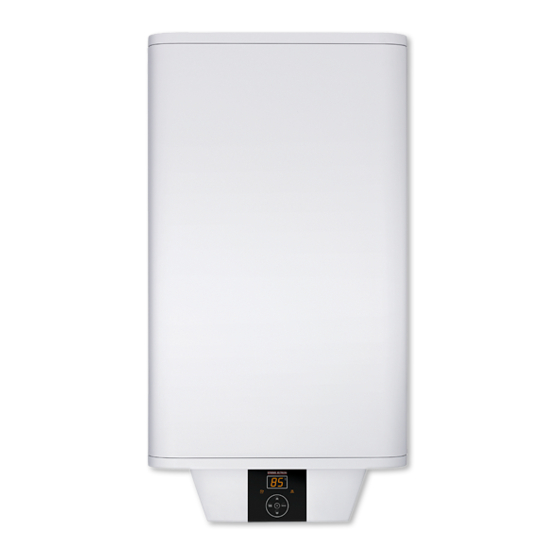

Wall mounted water heater with pcb
Hide thumbs
Also See for PSH 30 Universal EL:
- Operation and installation (184 pages) ,
- Operation and installation (44 pages)
Table of Contents
Advertisement
BEDIENUNG UND INSTALLATION
OPERATION AND INSTALLATION
UTILISATION ET INSTALLATION
BEDIENING EN INSTALLATIE
OBSLUHA A INSTALACE
OBSLUHA A INŠTALÁCIA
ЭКСПЛУАТАЦИЯ И МОНТАЖ
OBSŁUGA I INSTALACJA
Warmwasser-Wandspeicher mit Elektronik | Wall mounted water heater with PCB | Ballon d'ECS
mural électronique | Warmwater-wandboiler met elektronica | Nástěnný zásobník teplé vody
s elektronikou | Nástenný akumulačný ohrievač vody s elektronikou | Настенный накопительный
водонагреватель с электронным модулем | Zasobnik ścienny ciepłej wody z układem elektronicznym
» PSH 30 Universal EL
» PSH 50 Universal EL
» PSH 80 Universal EL
» PSH 100 Universal EL
» PSH 120 Universal EL
» PSH 150 Universal EL
Advertisement
Table of Contents
Troubleshooting
Subscribe to Our Youtube Channel
Related Manuals for STIEBEL ELTRON PSH 30 Universal EL
Summary of Contents for STIEBEL ELTRON PSH 30 Universal EL
- Page 1 électronique | Warmwater-wandboiler met elektronica | Nástěnný zásobník teplé vody s elektronikou | Nástenný akumulačný ohrievač vody s elektronikou | Настенный накопительный водонагреватель с электронным модулем | Zasobnik ścienny ciepłej wody z układem elektronicznym » PSH 30 Universal EL » PSH 50 Universal EL » PSH 80 Universal EL »...
-
Page 2: Table Of Contents
Contents SPECIAL INFORMATION Troubleshooting �������������������������������������������� 34 Specification ������������������������������������������������ 35 OPERATION 16.1 Dimensions and connections ��������������������������������� 35 General information ��������������������������������������� 23 16.2 Wiring diagrams and connections �������������������������� 36 Safety instructions ���������������������������������������������� 23 16.3 Fault conditions ������������������������������������������������� 37 Other symbols in this documentation ���������������������� 24 16.4 Details on energy consumption ������������������������������... -
Page 3: Special Information
Special information General information SPECIAL INFORMATION OPERATION - The appliance may be used by children aged 8 General information and older and persons with reduced physical, sensory or mental capabilities or a lack of ex- The chapters “Special Information” and “Operation” are intended for both the user and qualified contractors. -
Page 4: Other Symbols In This Documentation
Operation Safety Other symbols in this documentation Safety Note Intended use General information is identified by the symbol shown The appliance is intended for heating domestic hot water and can on the left. supply one or more draw-off points. f Read these texts carefully. This appliance is designed for domestic use. -
Page 5: Appliance Description
Operation Appliance description Appliance description Settings The appliance electrically heats up domestic hot water with the Controls, display and symbols standard heating output or with rapid heating. The electronic control unit makes energy saving adjustments easier. Subject to the power supply and draw-off behaviour, the water is heated automatically to the set temperature. -
Page 6: Factory Settings
Operation Settings Factory settings Button functions After commissioning, the set temperature is set to the maximum 4.3.1 Set temperature and frost protection settings value of 85 °C. Symbols indicate that the appliance has heated up the water and ECO Comfort energy saving mode is selected. The current set temperature is displayed. -
Page 7: Menu Functions
Operation Settings Menu functions 4.4.3 Selecting energy saving mode ECO Comfort (factory setting) 4.4.1 General menu settings principle This energy saving mode always offers you the maximum amount Note of hot water and therefore maximum comfort. Your settings are retained even after disconnection from In ECO Comfort energy saving mode, the set temperature is auto- the power supply. - Page 8 Operation Settings Starting and setting f Press the button again to select the ECO Dynamic menu function. f Keep pressing the mode button until The ECO Dynamic symbol appears. the key lock symbol appears. f Adjust the value for the temperature limit from 40 to 60 °C using the plus Note and minus buttons.
-
Page 9: Cleaning, Care And Maintenance
Operation Cleaning, care and maintenance Troubleshooting 4.4.8 Switching frost protection on/off If you switch on frost protection, the set temperature is automati- Problem Cause Remedy cally set to 7 °C. The water does not heat There is no power. Check the fuse/MCB in If you switch off frost protection, the set temperature is automati- up and the display does your fuse box/distribu-... -
Page 10: Installation
Installation Safety INSTALLATION 10. Preparing for installation 10.1 Preparing to install the appliance The wall mounting brackets attached to the appliance have hook- Safety in slots, which in most cases enable installation on the bolts that are already in place from previous appliances. Only a qualified contractor should carry out installation, commis- f Otherwise, transfer the dimensions for the holes to be drilled sioning, maintenance and repair of the appliance. -
Page 11: Electrical Connection
Installation Preparing for installation 10.3 Electrical connection Selecting the operating mode Material damage WARNING Electrocution Before any work on the appliance, disconnect all poles Only change the operating mode when isolated from the of the appliance from the power supply. power supply. -
Page 12: Commissioning
Installation Commissioning 11. Commissioning 12.2 Switching on reverse control 11.1 Commissioning f Open the shut-off valve in the cold water line. f Open a draw-off point until the appliance has filled up and the pipework is free of air. f Observe the maximum permissible flow rate with a fully opened tap (see chapter "Specification / Data table"). -
Page 13: Maintenance
Installation Maintenance 14. Maintenance 14.4 Descaling f Remove loose scale deposits from the water heater. WARNING Electrocution f If necessary, descale the inner cylinder with commercially Before any work on the appliance, disconnect all poles available descaling agents. of the appliance from the power supply. f Only descale the flange after disassembly and never treat the cylinder surface and protective anode with descaling agents. -
Page 14: Troubleshooting
Installation Troubleshooting 15. Troubleshooting Note The high limit safety cut-out can respond at temperatures below –15 °C. The appliance may be subjected to these temperatures during storage or transport. f Display the fault code (see chapter "Settings / Displaying the fault code"). f The plugs are described in chapter "Specification / Wiring diagrams and connections". -
Page 15: Specification
Installation Specification 16. Specification 16.1 Dimensions and connections PSH 30 PSH 50 PSH 80 PSH 100 PSH 120 PSH 150 Universal EL Universal EL Universal EL Universal EL Universal EL Universal EL Appliance Height 1045 1200 1435 Appliance Width Appliance Depth Entry electrical cables Height... -
Page 16: Wiring Diagrams And Connections
3 Mains terminal 4 Ceramic heating element in protective enamelled pipe 5 Heating output PSH 30 Universal EL: 1.6 kW ~ 230 V PSH 50-150 Universal EL: 2 kW ~ 230 V 6 Additional heating output, 1 kW ~ 230 V 7 High limit safety cut-out... -
Page 17: Fault Conditions
Specification 16.2.1 Dual circuit operation 16.2.3 Manual operation The output from rapid heating is shown after the forward slash. PSH 30 Universal EL PSH 50-150 Universal EL Single meter measurement with EVU contact PSH 30 Universal EL PSH 50-150 Universal EL 1.6 / 2.6... -
Page 18: Details On Energy Consumption
EL sal EL sal EL sal EL 231150 231151 231152 231153 231649 231154 Manufacturer STIEBEL ELTRON STIEBEL ELTRON STIEBEL ELTRON STIEBEL ELTRON STIEBEL ELTRON STIEBEL ELTRON Load profile Energy efficiency category Energy conversion efficiency Daily power consumption 2.911 6.683 7.009... -
Page 19: Data Table
Installation | Guarantee | Environment and recycling Specification 16.5 Data table PSH 30 PSH 50 PSH 80 PSH 100 PSH 120 PSH 150 Universal EL Universal EL Universal EL Universal EL Universal EL Universal EL 231150 231151 231152 231153 231649 231154 Hydraulic data Nominal capacity... - Page 20 Deutschland Verkauf Tel. 05531 702-110 | Fax 05531 702-95108 | info-center@stiebel-eltron.de STIEBEL ELTRON GmbH & Co. KG Kundendienst Tel. 05531 702-111 | Fax 05531 702-95890 | kundendienst@stiebel-eltron.de Dr.-Stiebel-Straße 33 | 37603 Holzminden Ersatzteilverkauf Tel. 05531 702-120 | Fax 05531 702-95335 | ersatzteile@stiebel-eltron.de Tel.
