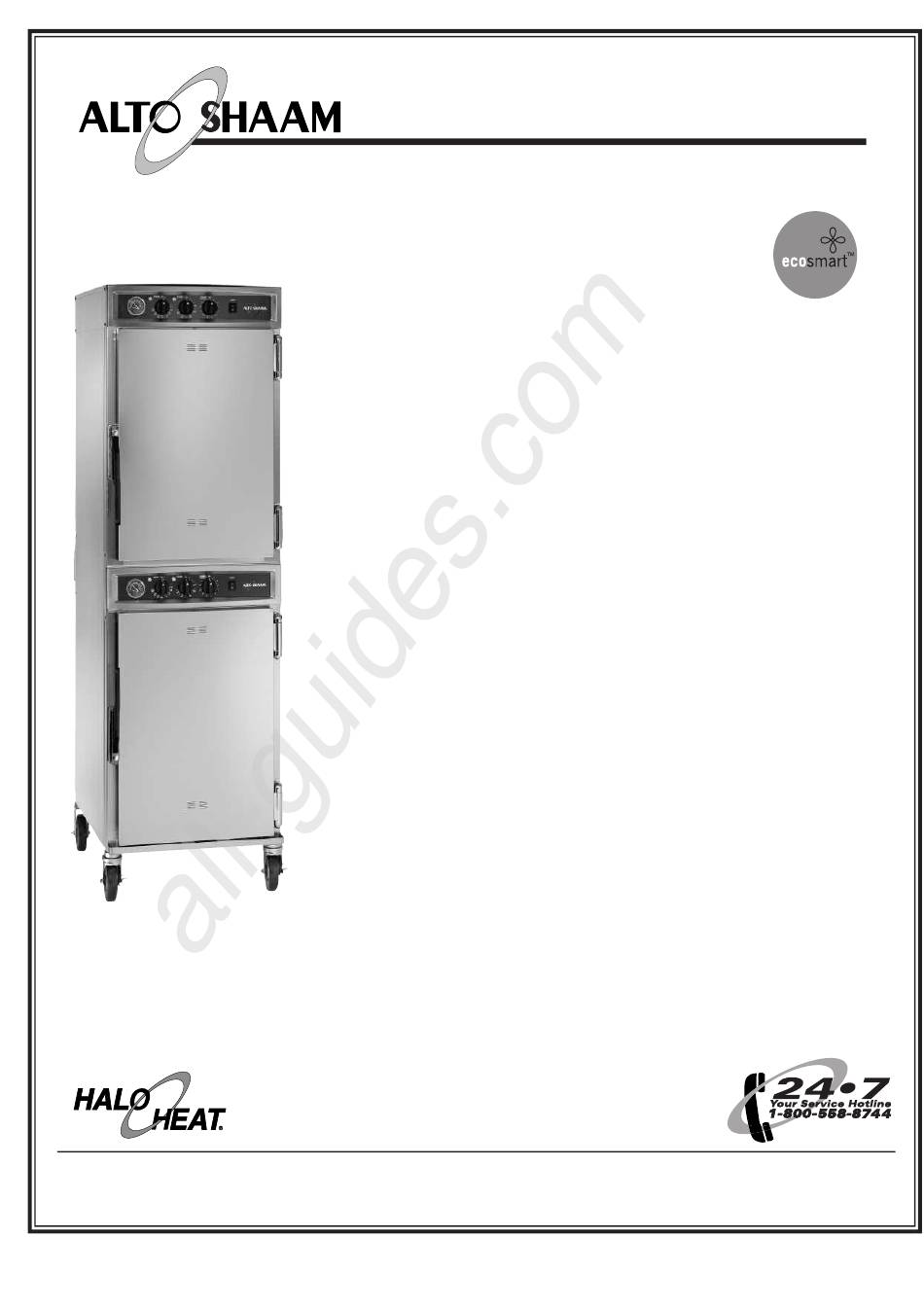

C o o k i n g & H o l d i n g O v e n
®
M a n u a l C o n t r o l
Model:
1000-TH-I
• I N STALLATION
• OPERATION
• MAI NTENANCE
W164 N9221 Water Street • P.O. Box 450 • Menomonee Falls, Wisconsin 53052-0450 USA
PHONE: 262.251.3800 • 800.558.8744
/
FAX: 262.251.7067 • 800.329.8744
.
.
.
USA
CANADA
U
S
A
ONLY
www.alto-shaam.com
.
.
.
M N - 2 8 6 3 6 • 1 1 / 0 8
P R I N T E D I N U
S
A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EcoSmart 1000-TH-I and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Alto-Shaam EcoSmart 1000-TH-I

Summary of Contents for Alto-Shaam EcoSmart 1000-TH-I

  • Page 1 All manuals and user guides at all-guides.com C o o k i n g & H o l d i n g O v e n ® M a n u a l C o n t r o l Model: 1000-TH-I •...
  • Page 2 All manuals and user guides at all-guides.com ® D E L I V E R Y U N P C K I N G 1. Carefully remove the This Alto-Shaam appliance has been appliance from the thoroughly tested and inspected to insure only the carton or crate.

  • Page 3: Safety Procedures And Precautions

    All manuals and user guides at all-guides.com SAFETY PROCEDURES AND PRECAUTIONS Knowledge of proper procedures is essential to the 1. This appliance is intended to cook, hold or safe operation of electrically and/or gas energized process foods for the purpose of human equipment.

  • Page 4: Minimum Clearance Requirements

    All manuals and user guides at all-guides.com I N S T A L L A T I O N N G E R U T I O N IMPROPER INSTALLATION, METAL PARTS OF THIS EQUIPMENT ALTERATION, ADJUSTMENT, BECOME EXTREMELY HOT WHEN IN SERVICE, OR MAINTENANCE COULD OPERATION.

  • Page 5: Installation

    All manuals and user guides at all-guides.com I N S T A L L A T I O N S I T E I N S T A L L A T I O N 33-11/16" (856mm) WEIGHT 1000-TH-I/STD 1000-TH-I/HD 349 lb (159 kg) 385 lb (175 kg) Electrical...

  • Page 6: Restraint Requirements -Mobile Equipment

    All manuals and user guides at all-guides.com I N S T A L L A T I O N S I T E I N S T A L L A T I O N A number of adjustments are associated with initial installation and start-up.
  • Page 7 All manuals and user guides at all-guides.com I N S T A L L A T I O N S I T E I N S T A L L A T I O N D R I P T R AY I N S TA L L AT I O N I N S T R U C T I O N S D R I P T R AY I N S TA L L AT I O N I N S T R U C T I O N S STANDARD DRIP PAN* [BOTTOM OF OVEN INTERIOR •...
  • Page 8 All manuals and user guides at all-guides.com I N S T A L L A T I O N E L E C T R I C A L C O N N E C T I O N The appliance must be installed by a qualified All 125V rated units will function properly with a service technician.
  • Page 9 All manuals and user guides at all-guides.com O P E R A T I N G I N S T R U C T I O N S U S E R S A F E T Y I N F O R M A T I O N The Alto-Shaam cook and hold oven is intended U T I O N for use in commercial establishments by qualified...

  • Page 10: Manual Control Operation

    All manuals and user guides at all-guides.com O P E R A T I N G I N S T R U C T I O N S Holding Indicator Cooking Indicator Light Light Temperature Holding Cooking Cooking ON/OFF Gauge Thermostat Thermostat Timer...
  • Page 11 All manuals and user guides at all-guides.com O P E R A T I N G I N S T R U C T I O N S General Holding Guideline Chefs, cooks and other specialized food service H O L D I N G T E M P E R T U R E R N G E personnel employ varied methods of cooking.

  • Page 12: Care And Cleaning

    All manuals and user guides at all-guides.com C A R E A N D C L E A N I N G C L E A N I N G A N D P R E V E N T I V E M A I N T E N A N C E PROTECTING STAINLESS STEEL SURFACES CLEANING AGENTS It is important to guard against...
  • Page 13 All manuals and user guides at all-guides.com C A R E A N D C L E A N I N G EQUIPME NT CARE Remove excess water with sponge and wipe dry Under normal circumstances, this oven should with a clean cloth or air dry. Leave doors open provide you with long and trouble free service.

  • Page 14: Internal Food Product Temperatures

    All manuals and user guides at all-guides.com S A N I T A T I O N Food flavor and aroma are usually so closely The most accurate method of measuring safe related that it is difficult, if not impossible, to temperatures of both hot and cold foods is by separate them.
  • Page 15 All manuals and user guides at all-guides.com S E R V I C E THERMOSTAT/PILOT LIGHT SEQUENCE THERMOSTAT CALIBRATION The thermostat is precision calibrated at the factory. Whenever the thermostat is turned “ON”, the Normally, no adjustment or recalibration is necessary indicator light will indicate the power ON/OFF unless the thermostat has been mishandled in transit, condition of the heating cable, and consequently, the...

  • Page 16: Troubleshooting Checklist

    All manuals and user guides at all-guides.com S E R V I C E T R O U B L E S H O O T I N G C H E C K L I S T TROUBLE POSSIBLE CAUSE REMEDY Unit does not operate.
  • Page 17 All manuals and user guides at all-guides.com S E R V I C E 1 0 0 0 - T H - I S E R V I C E V I E W - E X T E R I O R Bonnet Cover, Top 1003887 -Std.
  • Page 18 All manuals and user guides at all-guides.com S E R V I C E 1 0 0 0 - T H - I PA R T S L I S T - E X T E R I O R DESCRIPTION PART NO.
  • Page 19 All manuals and user guides at all-guides.com S E R V I C E 1 0 0 0 - T H - I S E R V I C E V I E W - E L E C T R I C A L Top Unit, Front Cook Hold...
  • Page 20 All manuals and user guides at all-guides.com S E R V I C E 1 0 0 0 - T H - I PA R T S L I S T - E L E C T R I C A L DESCRIPTION PART NO.
  • Page 21 All manuals and user guides at all-guides.com . 20 1000-TH-I INSTALLATION OPERATION SERVICE MANUAL...
  • Page 22 All manuals and user guides at all-guides.com 1000-TH-I . 21 INSTALLATION OPERATION SERVICE MANUAL...

  • Page 23: Transportation Damage And Claims

    All manuals and user guides at all-guides.com TRANSPORTATION LIMITED DAMAGE and CLAIMS WARRANTY ® All Alto-Shaam equipment Alto-Shaam, Inc. warrants to the original purchaser that any original part that is found to be defective in material or workmanship is sold F.O.B. shipping will, at Alto-Shaam's option, subject to provisions hereinafter stated, be point, and when accepted replaced with a new or rebuilt part.
