Ford Taurus Manual page 2103

INTERIOR
equipped, to the new track assembly.
To install:
7. Mount the seat tracks to the seat cushion.
8. Install the release handle to the tracks.
9. Install the seat track-to-seat cushion retaining screws. Tighten the screws to 13-17
ft. lbs. (17-23 Nm).
10. Move both seat track pedestals to the full rearward position, then install the assist
spring on the outboard side.
http://www.chiltondiy.com/content/8687/8687_10_2.html

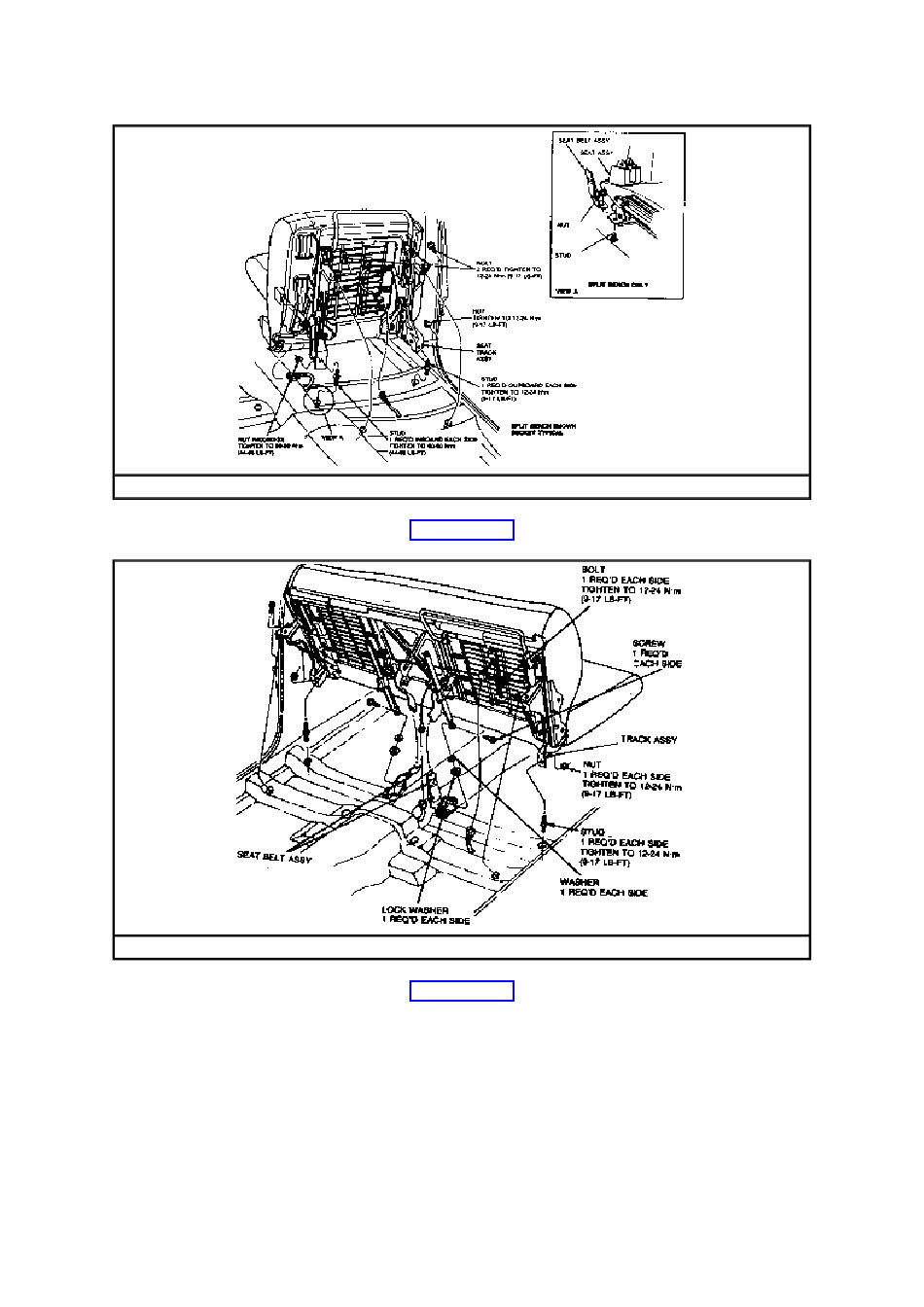

Manual front bucket seat assembly
Click to enlarge
Manual front bench seat assembly
Click to enlarge
