Typical Applications - Altronix NetWaySP1A Installation Manual

Fig. 1
NetWaySP1A
Media Converter/Repeater
Input: PoE Class 1 or Higher
Data: 10/100/1000
www.altronix.com
PoE /
PoE 10/100/1000 In SFP
Fig. 2
NetWaySP1A
Made in
U.S.A.
NetWaySP1A
Media Converter/Repeater
Input: PoE Class 1 or Higher
Data: 10/100/1000
www.altronix.com
PoE / Fiber
PoE 10/100/1000 In SFP Signal
CAT5e
Midspan/Endspan
- 2 -
All manuals and user guides at all-guides.com
Fig. 1a
Made in
U.S.A.
PoE
Present
LED
Fiber
Signal

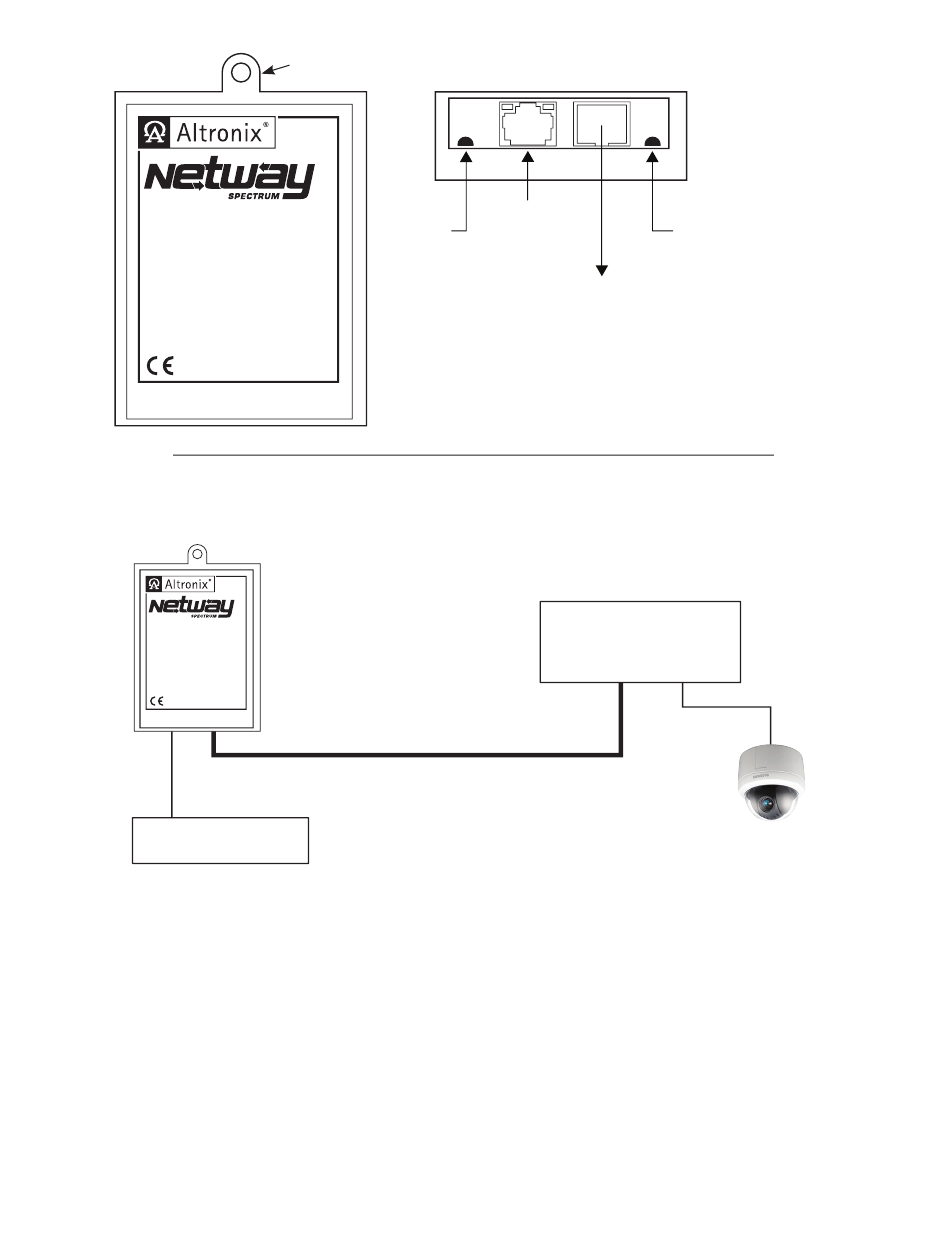

Typical Applications:

Fiber (Single/Multi-Mode)
Fig. 1b
Structured
Cable from
Midspan/
data connection
Endspan
One (1) Gb SFP port
to Fiber Switch,
NetWaySP3WPN/SP4WPN,
NetWay4EWPN
Fiber Transceiver or
Outdoor Remote
(ex. NetWaySP3WP/4WP/8WP)
SFP LED
Indicates
CAT5e
PTZ
NetWaySP1A
