Altronix NetWaySP1P Installation Manual

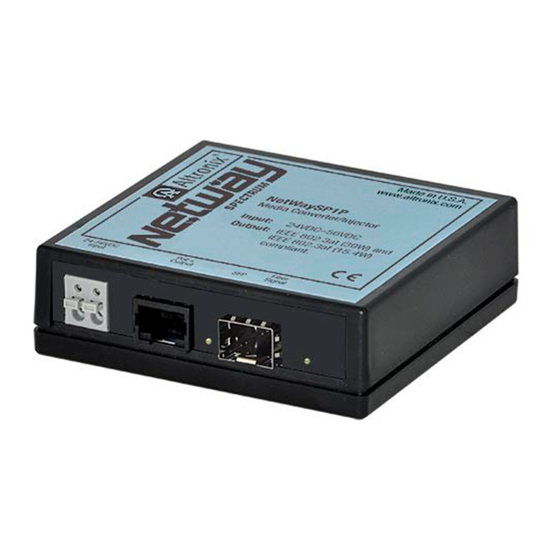

NetWaySP1P
Powered Media Converter/Injector
Altronix NetWaySP1P converts 10/100/1000 Mbps ethernet to Fiber (1000Base-X/SX/LX)
and provides PoE.
Agency Listings:
• UL/cUL Listed for Information Technology
Equipment (UL 60950-1).
• CE approved.
Input:
• 24VDC @ 1.5A, 56VDC @ 0.75A (30W)
• 24VDC @ 1.0A, 56VDC @ 0.5A (15W)
Fiber Port:
• One (1) 1Gb SFP port.
• Use with SFP module 1000Base-X (1Gb),
compliant to Class 1 laser product
(not included).
Unit is powered via 24VDC-56VDC. NetWaySP1P is not intended to be connected to outside
plant leads and should be installed indoors within the protected premises.
1. Mount NetWaySP1P in desired location utilizing the mounting hole (Fig. 1a, pg. 2).
Use a proper fastener and/or wall anchor when securing NetWaySP1P with screw through
its mounting hole to the wall.
2. Connect 24VDC-56VDC power source to terminals marked [24-56VDC -- Input +].
Terminals accommodate up to 12 AWG wires.
3. Connect structured cable from port marked [PoE+ Output] on NetWaySP1P to a
PoE device (Fig. 2, pg. 2).
4. Connect fiber optic cable to a fiber SFP module. Connect the module to the port marked
[SFP] on the NetWaySP1P. Connect the other end of fiber cable to an SFP module of a
remote device. SFP LED will illuminate indicating data connection (Fig. 2, pg. 2).
NetWaySP1P
www.a1securitycameras.com email: sales@a1securitycameras.com
Overview:
Features:
Installation Instructions:
Available from A1 Security Cameras
Installation Guide
Ethernet:
• IEEE 802.3at (30W) compliant.
• Wire type: 4-pair CAT5e and higher.
• Connectivity: RJ45, auto-crossover.
• Speed: 10/100/1000Mbps.
• Distance: up to 100m.
LED Indicators:
• PoE Green LED: Indicates PoE present
(unit is powered on).
• Fiber Signal Green LED:
Indicates SFP connection.
Environmental:
• Refer to Environmental Conditions on page 3.
Dimensions (W x L x H approx.):
3.375" x 3.8" x 1"
(85.7mm x 96.52mm x 25.4mm).
Rev. 070717
I.T.E. 43KC
- 1 ­
